Technics SLP 720 Owners Manual

Page 1

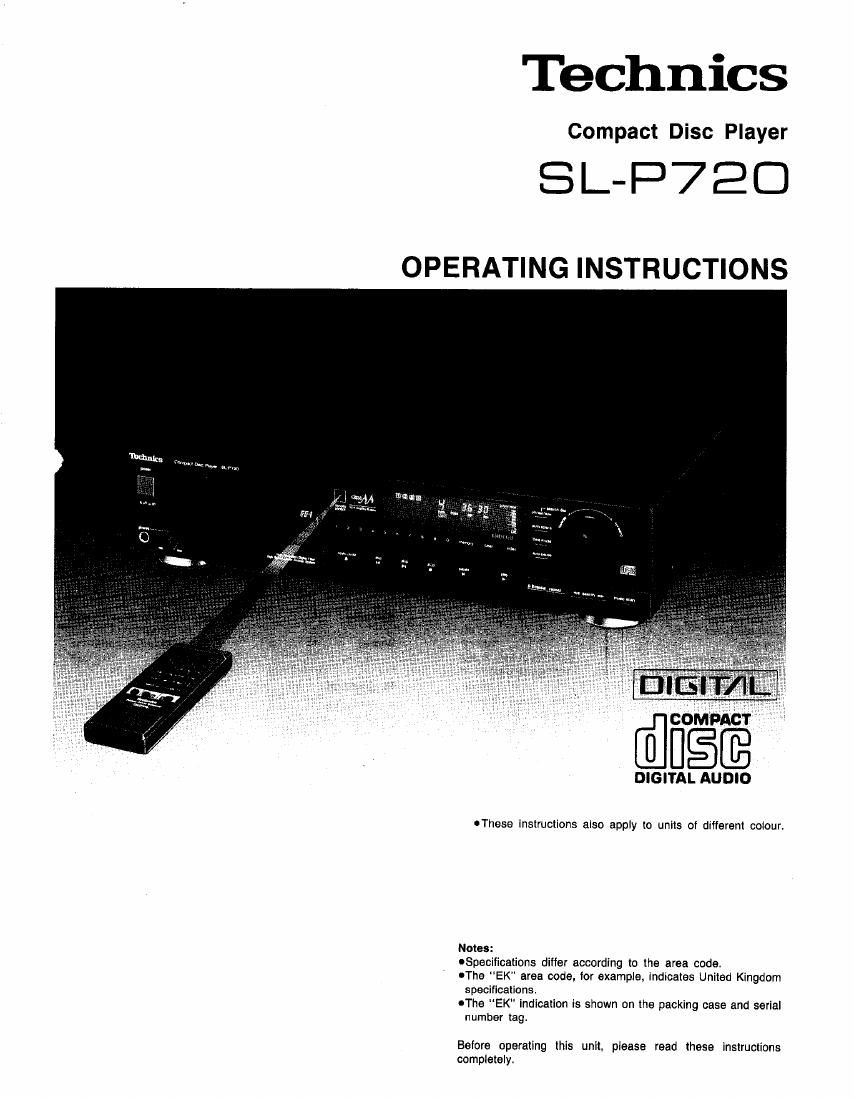

Technics

Compact Disc Player

SL-:/.D

OPERATING INSTRUCTIONS

We

'ann. max-

DIGITAL AUDIO

0These instructions also apply to units 0! different colour.

Notes:

ISpecitications differ according to the area code.

IThe EK area code. for example, indicates United Kingdom
specifications.

«The EK" indication is shown on the packing case and serial
number tag,

Before operating this unit, please read these instructions
completely.

Page 2

We want to thank you tor selecting this product and
to welcome you to the growing family of satisfied
Technics product owners around the world.

We feel certain you will get maximum enioyment

Contents

OTechnical Specifications
IBefore Use ..........

OFor United Kingdom
OPlacement Hints

IAccessories ........
OConnections ........

WEBB-INN

OFront Panel Controls and

Their Functions

I Audio

No. 01 channels
Frequency response
Output voltage
Dynamic range

s/N ratio

Harmonic distortion
Total harmonic distortion
Channel separation
Wow and tlutlor
Low-pass lllter

Output Impedance
Load impedance
Headphone output level

I Signal lormat
Sampling lrequency
Correction system
D-A conversion

l Pickup
Typo

nght source
Wavelength
Traverse system
Spindle system

2(leit and right stereo)
4-20000 HZ $0.2 dB

2.0 V (at 0 dB)

96 dB

102 dB

0,0012% (1 kHz. 0 dB)
0.0025% (1 kHz, 0 dB)

105 dB

Below measurable limit

Hight Fiesolution Digital Filter
Approx. soon

More than 10 kn

80 mW max. 320 (adjustable)

44.1 kHz

Technics Super Decoding Algorithm

16-bit linear

Fine-focus, one beam
Semiconductor laser
780 nm

High-speed linear access system

Brushless DD motor

Before Use

Be sure to disconnect the mains cord before adiusting the

voltage selector.

Use a minus (-) screwdriver to set the voltage selector (on the
rear panel) to the voltage setting for the area in which the unit will

be used.

Technical specifications;

from this new addition to your home.

Please read these operating instructions carefully,
and be sure to keep them handy for convenient
reference.

OOperation .............................. 6
oConvenlent Functions .................. 10
0T0 Operate by the Remote-Control

Transmitter ............................ 13
oAbout Compact Discs .................... 14
0Notes .................................. 15
asuggestions for Safety .................. 15
oTroubleshooting Guide ........... Back cover

those specified

l Inlrared remote-control transmitter

Dimensions (WXHXD) 65x18x155 mm
(2-9/15 >< 23/32 X 63/32)

Batteries UM-s AA batteries or IEC-Fis
or equivalent (1.5 VX2)
Weight 140 9 (including batteries)
(0.3 lbs)

I General

Power supply
Power consumption
Dimension: (Wx HXD)

1» 50/50 Hz, 110-127/220-240 v
17 w

430x97.5><260 mm
(16-5/15"><3-27/sa>< 10-1/4")

52 kg

(11 .5 lbs)

Weight

Specifications subject to change without notice.
Weight and dimensions shown are approximate.

Note that this unit will be seriously damaged it this setting is not
made correctly. (There is no voltage selector tor some countries;
the correct voltage is already set.)
