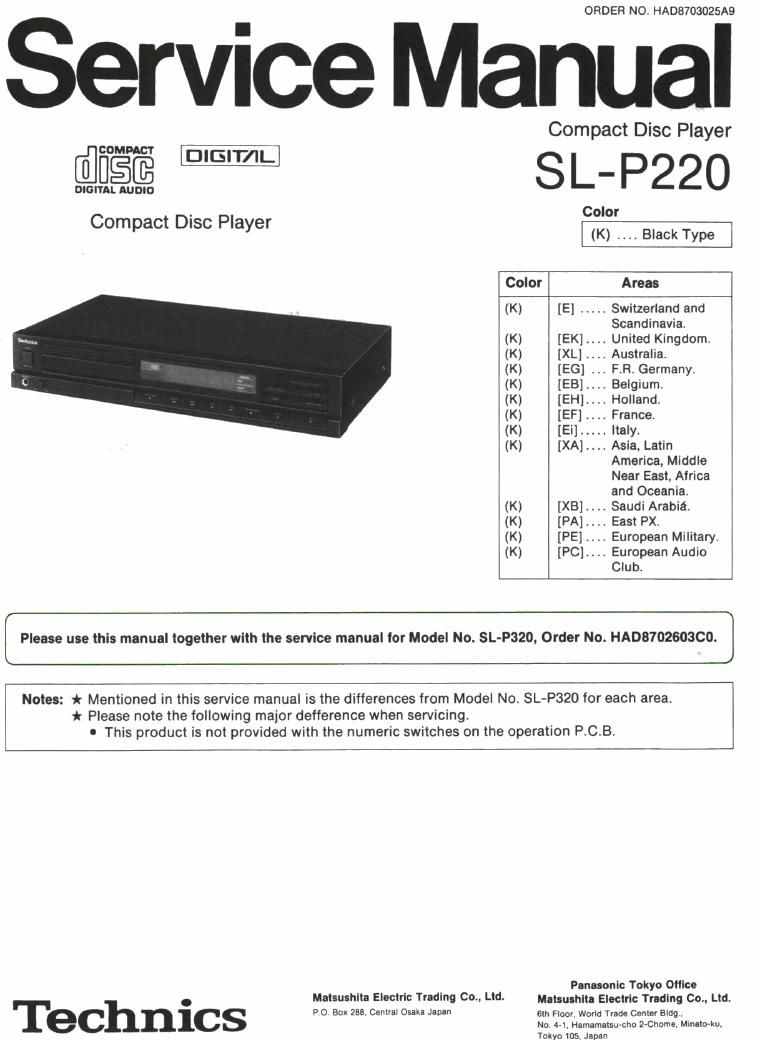

[flmm _It3n7u_
DIGITAL AUDIO
Compact Disc Player
ORDER NO, HAD8703025A9
Service Manual
Compact Disc Player
SL-P220
\
Color
(K) Black Type
Color Areas
(K) [E] ..... Switzerland and
Scandinavia.
(K) [EK] United Kingdom.
(K) [XL] Australia.
(K) [EG] FR. Germany.
(K) [EB].... Belgium.
(K) [EH].... Holland.
(K) [EF] France.
(K) [Ei] ..... Italy.
(K) [XA]..., Asia. Latin
America. Middle
Near East, Africa
and Oceania.
(K) (XBJ Saudi Arabia.
(K) [PA].... East PX.
(K) [PE] European Military.
(K) (PC)... European Audio
Club.
J
Please use this manual together with the servlce manual tor Model No. SL-P320, Order No. HADB702603C0.
Notes: * Mentioned in this service manual is the differences from Model No. SL-P320 for each area.
it Please note the following major detference when servicing.
I This product is not provided with the numeric switches on the operation P.C.B.
Technics
Matsushlta Eleclrlc Trading (20.. Ltd.
P O Box 258. Central Osaka Japan
Tokyo 105. Japan
Panasonic Tokyo Ottice
Matsushlta Electric Trading Co., Ltd.
6th Floor. World Trade Center Bldg .
No. 4-1. Hamamatsu-cho 2-Chome. Minute-kn.
