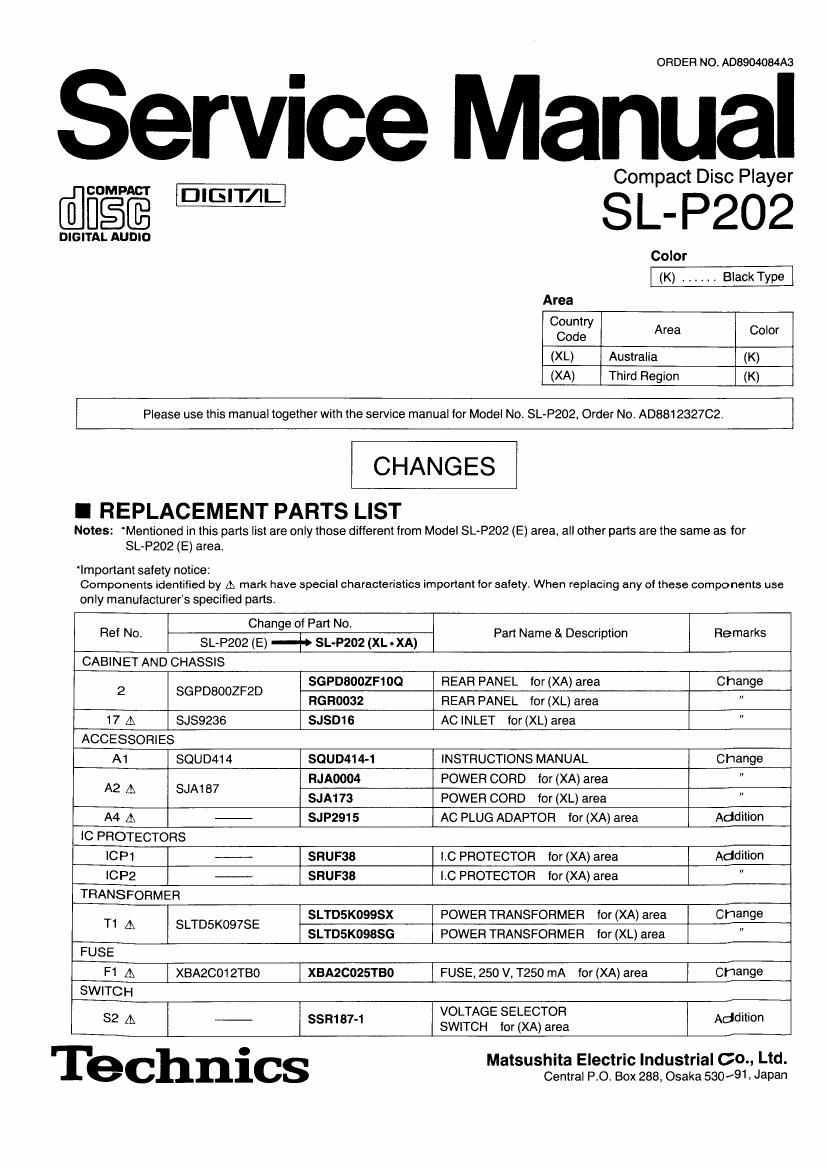

ORDER NO. A08904084A3
Service Manual
Compact Disc Player
[filfigfi "3" SL-P202
DIGITAL AUDIO
Color
(K) . r Black Type
Area
Country
Code Area Color
(XL) Australia (K)
(XA) Third Region (K)
Please use this manual together with the service manual for Model No. SL-P202, Order No AD8812327C2t
CHANGES
I REPLACEMENT PARTS LIST
Notes: Mentioned in this parts list are only those different from Model SL-P202 (E) area, all other parts are the same as for
SL-P202 (E) area.
Important safety notice:
Components identified by A mark have special characteristics important for safety, When replacing any of these components use
only manufacturer's specified partsr
Ref No Change Of Part No Part Name & Description Remarks
SL-P202 (E) --+> SL-P202 (XL-XA)
CABINET AND CHASSIS
2 SGPDBOOZFZD SGPDBOOZF1OQ REAR PANEL for (XA) area Change
RGR0032 REAR PANEL for (XL) area
17 A SJSQ236 SJSD16 AC INLET for (XL) area "
ACCESSORIES
A1 SQUD414 SOUD414-1 lNSTRUCTIONS MANUAL Change
RJA0004 POWER CORD for (XA) area
A2 A SJA1B7
SJA173 POWER CORD for (XL) area
A4 A - SJP2915 AC PLUG ADAPTOR for (XA) area Addition
IC PROTECTORS
ICPt -- SRUF38 LC PROTECTOR for (XA) area Addition
|CP2 -» SRUF38 LC PROTECTOR for (XA) area
TRANSFORMER
T1 A SLTDSK097SE SLTDSKOQSSX POWER TRANSFORMER tor (XA) area Change
SLTDSKOQBSG POWER TRANSFORMER for (XL) area
FUSE
F1 A XBA2C012TBO XBA2C025TBO FUSE, 250 V, T250 mA for (XA) area I Change
SWITCH
S2 A _ ssn187-1 ggfigggnggggeg Wm
I I e. h . Matsushita Electric Industrial 60-, Ltd.
C nlcs Central PO. Box 288, Osaka 530 ~91 1 Japan
