Technics SLP 2000 Service Manual

Extracted text from Technics SLP 2000 Service Manual (Ocr-read)

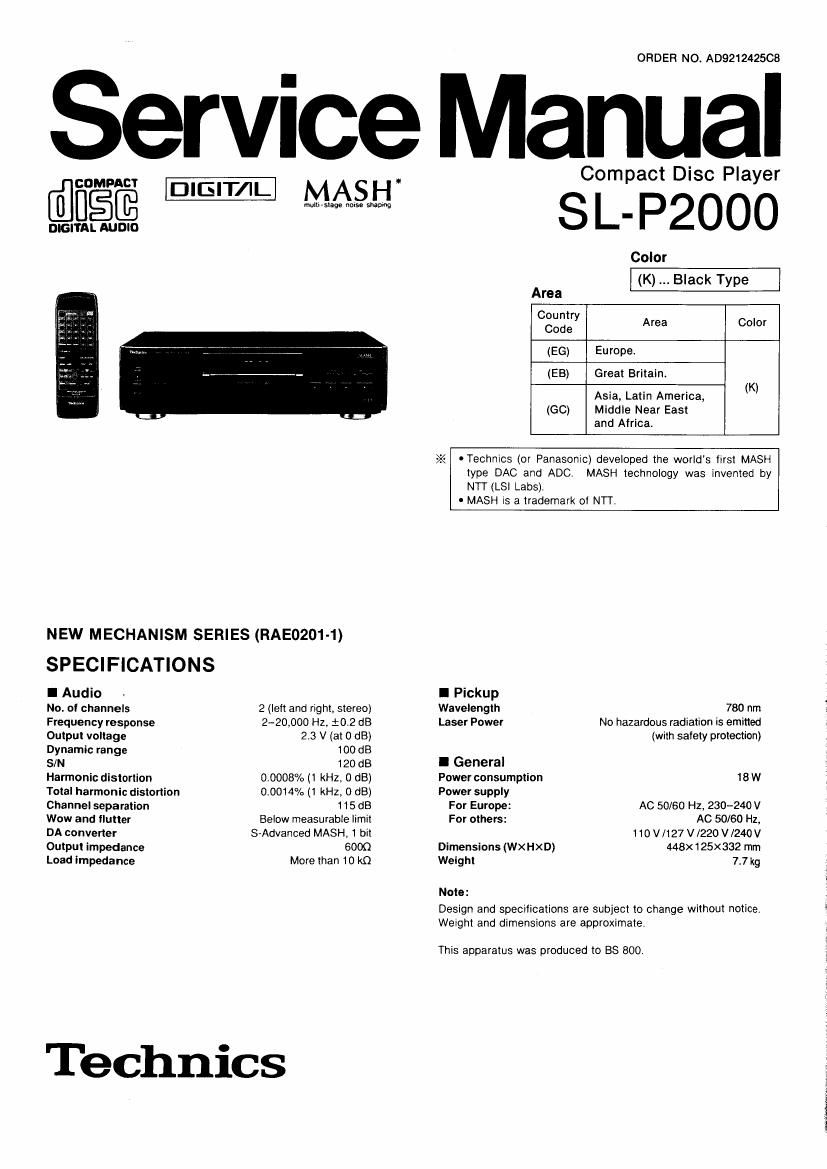

Page 1

COMPACY

DIGITAL AUDIO

NEW M ECHANISM SERIES (RAEO201-1)

SPECIFICATIONS

I Audio

No. oi channels
Frequency response
Output voltage
Dynamic range

S/N

Harmonic distortion
Total harmonic distortion
Channel separation
Wow and Ilutler

DA converter
Output impedance
Load impedance

2 (left and right, stereo)
2-20.000 H2.1-0.2 dB
23 v (at 0 dB)

100 dB

120 dB

0.0008% (1 kHz, 0 dB)
0.0014% (1 kHz, 0 dB)
1 1 5 dB

Below measurable limit
S~Advanced MASH, 1 bit
6000

More than 10 km

Technics

MASH

mulli~slage noise stratum

ORDER NO. AD921242508

Service Manual

Compact Disc Player

3 L-P2000

Color
(K) Black Type

Power consumption
Power supply

For Europe:

For others:

Dimensions (WXHXD)
Weight

Note:

Area
Country
Code Area Color
(EG) Europe.
(EB) Great Britain
K
Asia, Latin America, ( I
(GO) Middle Near East
and Africa.
X -Technics (or Panasonic) developed the world's first MASH
type DAC and ADC. MASH technology was invented by
NTT (LSI Labs).
- MASH is a trademark of MT
I Pickup
Wavelength 780 nm
Laser Power No hazardous radiation is emitted
(with safety protection)
I General

18W

AC 50/60 Hz, 230-240V
AC 50/60 Hz,
110V/127V/220V/240V
448x125x332 mm

7.7 kg

Design and specifications are subject to change without notice.
Weight and dimensions are approximate

This apparatus was produced to BS 800.

Page 2

SL-P2000

I CO NTENTS
Page

ACCESSORIES ..................................... 2 TROUBLESHOOTING GUIDE ................
BEFORE TRANSPORTING THE UNIT 2 MEASUREMENTS AND ADJUSTMENTS. 21, 22
PRECAUTION OF LASER DIODE 3 TERMINAL FUNCTION OF ICS 23~29
CONNECTIONS ......................... 4 INTERNAL CONNECTION 0F FL .. 30
FRONT PANEL CONTROLS AND FUNCTIONS.. 6 BLOCK DIAGRAM .....
CONCERNING THE REMOTE CONTROL ........ 7 SCHEMATIC DIAGRAM
HANDLING PRECAUTIONS FOR OPTICAL PICKUP. 8 PRINTED CIRCUIT BOARDS 43~47
INSTRUCTIONS FOR TRAVERSE OIL B WIRING CONNECTION DIAGRAM 43
DISASSEMBLY INSTRUCTIONS ......... 9~16 REPLACEMENT PARTS LIST..
HANDLING P.C.B. WITH DUAL DC POWER SUPPLY CABINET PARTS LOCATION .. 51, 52

OF DIGITAL LINEAR SERVO CIRCUIT ....................... 16, 17 LOADING MECHANISM ....... 53
DISPLAY FUNCTION OF AUTOMATICALLY- RESISTORS AND CAPACITORS

ADJUSTED RESULS (SELF-CHECK FUNCTION) ...... 17, 18 PACKAGING ..............................

I ACCESSRIES

Note:
The configuration of the AC power supply cord dilters according to area.

«6» \5

AC power supply cord .......... 1 pc. Stereo connection cable ........ 1 pc. Power plug adaptor ............ 1 pc.
[VJA0733 (EB) ] [SJPD18] [SJP521372 (GC)]
RJA0019-2K (EG, GC)

Remote control transmitter Batteries "AAA (UMAIROS) . ,
ERAK-SL512W] ................ 1 DC- for remote control transmitter
Note:

These are available on sale route,

I BEFORE TRANSPORTING THE UNIT

To safeguard against damage in transit, be sure to secure the
optical pickup by following the procedure below.

1 Remove the compact disc inside, and set the
power switch to OFF with the disc tray still
open.

2 Slowly push in the disc tray by hand.
000 not till the unit while doing this
Oil the disc tray is not pushed in slowly, the optical pickvup
may not be secured properly.

3 Check that the lock mark can be seen in its
entirety as shown in the figure on the right. oLock mark
