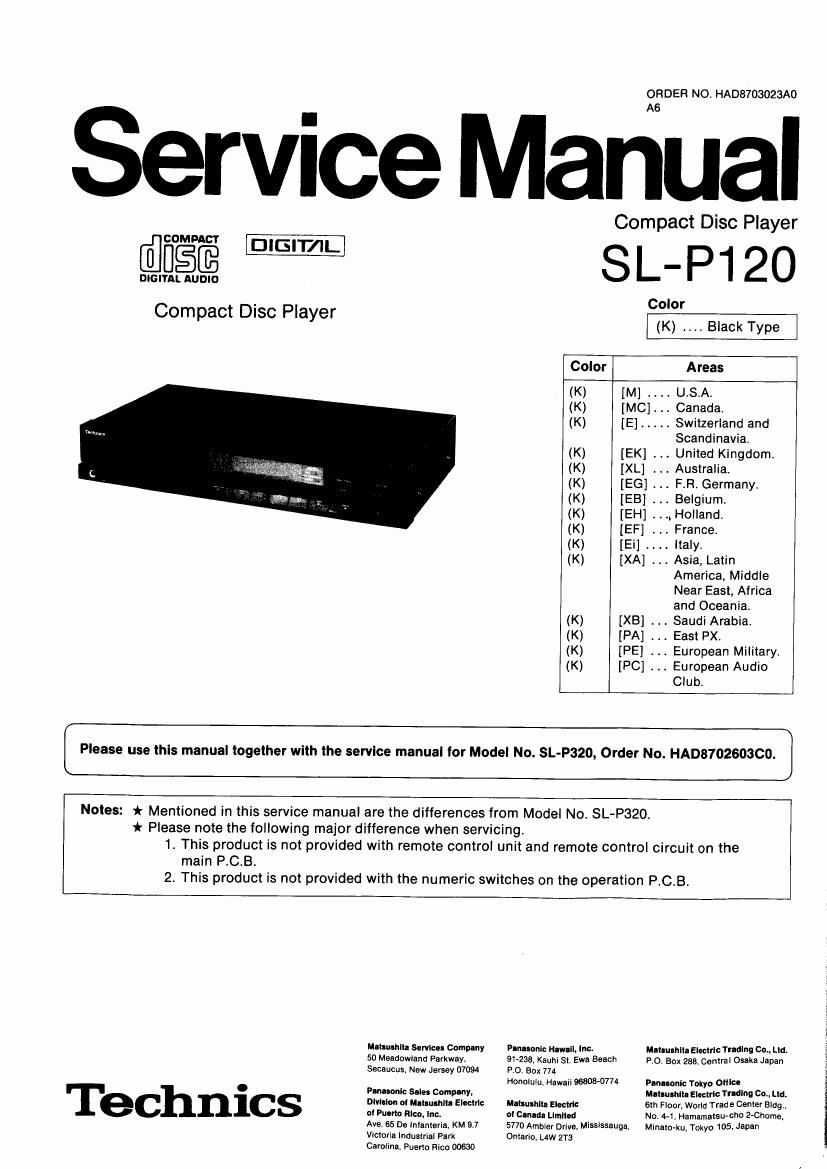

Technics SLP 120 Service Manual

Page 1

ORDER NO. HADB703023A0
A6

Service Manual

Compact Disc Player

tinge SL-P120

mourn AUDIO
Color
(K) Black Type

Compact Disc Player

Color Areas

(K) [M] U.S.A.

(K) [MC]... Canada.

(K) [E] ..... Switzerland and
Scandinavia,

(K) [EK] United Kingdom.
(K) [XL] Australia.

(K) [EG] FR. Germany.
(K) [EB] Belgium.

(K) [EH] ..., Holland.

(K) [EF] France.

(K) [Ei] Italy.

(K) [XA] Asia, Latin
America, Middle
Near East, Africa

and Oceania,
(K) [XB] SaudiArabia.
(K) [PA] East PX.
(K) [PE] European Military,
(K) [PC] European Audio
Club.

,
Please use this manual together with the service manual for Model No. SL-P320, Order No. HAD870260360.
2
Notes: 1r Mentioned in this service manual are the differences from Model No. SL-P320.
* Please note the following major difference when servicing.
1. This product is not provided with remote control unit and remote control circuit on the
main P.C.B.
2. This product is not provided with the numeric switches on the operation P.C.B.
