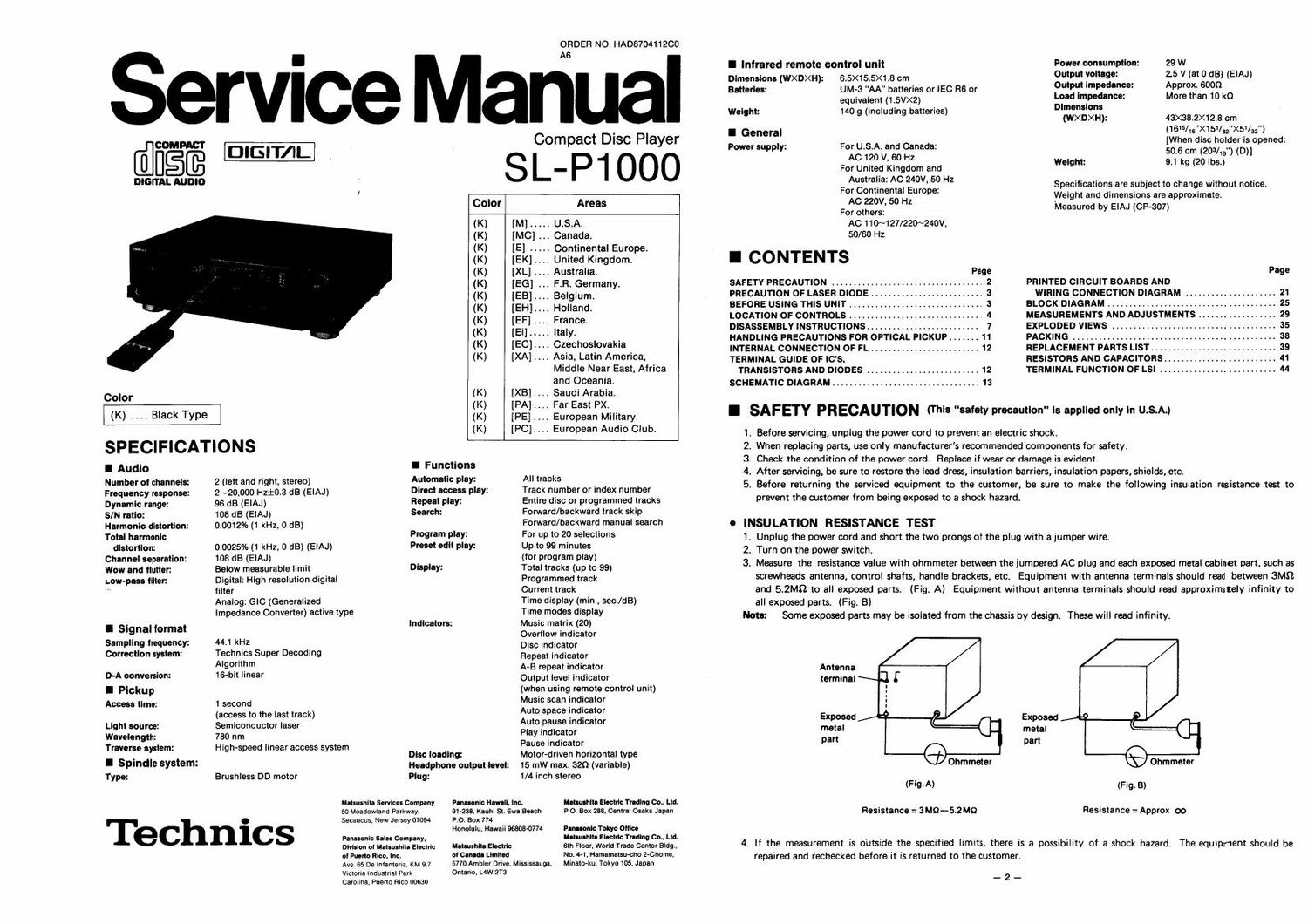

Technics SLP 1000 Service Manual

Page 1

Service Manual

EflfiEE

ORDER NO. HADB70411200

Compact Disc Player

DIGITAL AUDIO

Color

(K) Black Type

SPECIFICATIONS

I Audio

Number ol channels:

Frequency response:

Dynamic range:

SIN ratio:

Harmonic distortion:

Total harmonic
distortion:

Channel separation:

Wow and "utter:

Low-pass tilter:

I Signal format
Sampling frequency:
Correction system:

D-A conversion:

I Pickup
Access time:

Light source:
Wavelength:

Traverse system:

I Spindle system:
Type:

2 (left and right. stereo)
2~20.000 Hzi0.3 dB (EIAJ)
96 dB (EIAJ)

108 dB (EIAJ)

0.0012% (1 kHz. 0 dB)

0.0025% (1 kHz, 0 dB) (EIAJ)

108 dB (EIAJ)

Below measurable limit

Digital: High resolution digital
filter

Analog: GIC (Generalized
impedance Convener) active type

44.1 kHz

Technics Super Decoding
Algorithm

16-bit linear

1 second

(access to the last track)
Semiconductor laser

780 nm

High-speed linear access system

Brushless DD motor

SL-P1000

Color Areas

(K) [M] ..... U.S.A.

(K) [MC] Canada.

(K) [E] .. . Continental Europe.

(K) [EK] United Kingdom.

(K) [XL] Australia.

(K) [EG] FR. Germany.

(K) [EB]. Belgium.

(K) [EH]. Holland.

(K) [EF] France.

(K) [Ei]..... Italy.

(K) [EC] Czechoslovakia

(K) [XA] . . .. Asia, Latin America,
Middle Near East, Africa
and Oceania.

(K) [XB] . . .. Saudi Arabia.

(K) . Far East PX.

(K) [PE] European Military.

(K) [PC] . . .. European Audio Club.

I Functions

Automatic play:
Direct access play:
Repeat play:
Search:

Program play:
Preset edit play:

Display:

Indicators:

Disc loading:

All tracks

Track number or index number
Entire disc or programmed tracks
Forward/backward track skip
Forward/backward manual search
For up to 20 selections

Up to 99 minutes

(for program play)

Total tracks (up to 99)
Programmed track

Current track

Time display (min., sec/dB)
Time modes display

Music matrix (20)

Overflow indicator

Disc indicator

Repeat indicator

A-B repeat indicator

Output level indicator

(when using remote control unit)
Music scan indicator

Auto space indicator

Auto pause indicator

Play indicator

Pause indicator

Motor-driven horizontal type

Headphone output level: 15 mW max. 320 (variable)

Plug:

Technics

Mauushita Services Company
50 Meadowland Parkway,

Secaucus, New Jersey D7094 P.O. Box 774

Honolulu. Hawaii 96808-0774

Pan-Ionic sum Company,
Division of Matlusnita Electric
of Puerto Rico. Inc.

Ave. 65 De Inlanteria. KM 9.7
Victoria indufirial Park
Caroiina. Puerto RICO 00630

Ontario. L4w 2T3

Panasonic Haw-ll, Inc.
91-238, Kauni St. Ewa Beach

Matsushlta Electric
oi Canada Limited
5770 Ambler Drive. Mississauga. MinatoJm, Tokyo 105. Japan

1/4 inch stereo

MlhullIII/l ElecItIc TrldIng Co.. Ltd.
PO Box 288, Central Osaka Japan

Panasonic Tokyo Ofilce

Mlhushlh EIIcIrIc Trading om. le.
6th Floor. World Trade Center Bldg.
No. 4-1. Hamamatsu-cho 2-Chome.

I Infrared remote control unit gower'conrmption: :esw( t0 dB) (EIAJ)
Dimensions (WXDXH): 6.5X15.5> Batteries: UM-3 AA" batteries or IE0 R6 or °P|f Mince APWOX- 6000
equivalent (1.5vx2) Load Impedance: More than 10 k0
- . : - Dimensions
Weight. 140 9 (Including batteries) (WXDXH): 43X38.2X12.8 cm
I General (135/ia"><15/:2"><5'/az")
Wh d' d:
Power supply: For U.S.A. and Canada: ISO Seenm Eggsulgegu'iwene
Ac 120 V.6OHz w i m- 91- k (20 "51;
For United Kingdom and e 9 9 '
F Atéstralia: ACéAtOV, 5) H2 Specifications are subiect to change without notice.
0:0 2233?: urope. Weight and dimensions are approximate.
F0, others} 1 Measured by EIAJ [CF-307)
AC 110~127l220~240V,
50/60 HZ
Page Page
SAFETY PRECAUTION ................................... 2 PRINTED CIRCUIT BOARDS AND

PRECAUTION OF LASER DIODE
BEFORE USING THIS UNIT .....
LOCATION OF CONTROLS .....

DISASSEMBLY INSTRUCTIONS ................... . 7
HANDLING PRECAUTIONS FOR OPTICAL PICKUP ... 11
INTERNAL CONNECTION OF FL ......................... 12
TERMINAL GUIDE OF ICS,

TRANSISTORS AND DIODES .......................... 12
SCHEMATIC DIAGRAM .......... 13

WIRING CONNECTION DIAGRAM ..
BLOCK DIAGRAM ....................
MEASUREMENTS AND ADJUSTMENTS .
EXPLODED VIEWS
PACKING .........
REPLACEMENT PARTS LIST.
RESISTORS AND CAPACITORS. .
TERMINAL FUNCTION OF LSI . ..

I SAFETY PRECAUTION (T his "safety precaution" ls applied only In U.S.A.)

(fiwa-t

o INSULATION RESISTANCE TEST

. Before servicing. unplug the power cord to prevent an electric shock.

. When replacing parts. use only manufacturers recommended components for safety.

. Check the condition of the power cord. Replace if wear or damage is evident.

. After servicing. be sure to restore the lead dress. insulation barriers. insulation papers. shields. etc.

. Before returning the serviced equipment to the customer, be sure to make the following insulation resistance test to
prevent the customer from being exposed to a shock hazard.

I. Unplug the power cord and short the two prongs of the plug with a jumper wire.

2. Turn on the power switch.

3. Measure the resistance value with ohmmeter between the jumpered AC plug and each exposed metal cabinet part, such as
screwheads antenna, control shafts, handle brackets, etc. Equipment with antenna terminals should read between SM?
and 5.2MS'Z to all exposed parts. (Fig. A) Equipment without antenna terminals should read approximately infinity to

all exposed parts. (Fig. 8)

Note: Some exposed parts may be isolated from the chassis by design. These will read infinity.

Antenna
terminal

Exposed
metal
part

Ohmmeter

(Fig. A)

Exposed
metal
part

Ohmmeter

(Fig.8)

Resistance = 3 MQ-SZMQ Resistance = Approx 00

4. If the measurement is outside the specified limits, there is a possibility of a shock hazard. The equuprlent should be
repaired and rechecked before it is returned to the customer.

_2_

Page 2

I PRECAUTION OF LASER DIODE

Caution: This product utilizes a laser diode.
ADVARSEL: I dette a apparel anvendes laser.

. Use 0' caution labels Note 0 Mark is used, X Mark Is not used

Areas sowms sowoio sowm SOWD19
M o x x x CLASS 1
we] x o x x LASER PRODUCT
[E] O X 0 O
lEKl. [Xle [ES],
iEBlleHMEFL O x O O Obs:
{fig-1E0. A" Apparaten innehaller laser
Komponent av hoger laserklass
an klass 1.
sowoas
ADVARSELAUsynligt DANGERlnvisible laser
laxerlys udstréles ved radiation when open.
3bning. umpcé om. AVOID DIRECT ex-
EKTE EESTRALING. POSURE T0 BEAM»
sowoto
Ulllllll- mums um L r

utcrrmtlnl: mum ItllM

Alltllllllll uranium turn it
lltnll'lfllillllill autumn xi min-

SQWDtQ

VAROITUS! Laite sis'altaa laserdiodin.
joka lahettaa nakymatonta silmille
vaarallista lasersateilya

I BEFORE USING THIS UNIT

1. Place a softcloth under the unit to protect it irom scratches.
2. Press the lock shaft on the bottompanel to the in (FREE)
position (l~-).

NOTE:

IF THE UNlTlS TRANSPORTED AGAIN, PERFORM THE
FOLLOWING STEPS:

1) Remove the disc from the holder.

2) Pull the lock shaft to the out (LOCK) position (-41),
CAUTION:

Do not transport the unit without locking the lock shaft.
SEVERE DAMAGE WILL RESULT.

Lock shatt
/
@

LOC K

FREE
1.

L Soft cloth

I LOCATION OF CONTROLS

Front Panel

27619

0 Power switch
Press (1_;) to switch power on.
Press again (-1) to switch power oil.

Disc holder
The disc is inserted in this holder with the label side up,

Open/close button
Press this button to open and close the disc holder.

Remote control sensor
Receives signals from the infrared remote control unit.

@600

Numeric buttons (m~@)
Use these buttons to specity:

1. Track numbers.

2, index numbers

:3. Music scan intervals (in seconds).
4. Playing times.

Display panel

00

Memory button
Press this button to enter displayed track numbers or
playing time into the memory,

6 Clear button
Press this button to clear individual program entries before
program play is started.

9 Recall button
Press this button to check the contents of a program.

0 Index button

Press this button to specify an index number.

Iln some compact discs, indexes are used to divide tracks
into smaller sections for easy access. If a disc includes
indexes, a list of the indexes will be contained in the liner
note included with that disc,

[@ficfl is the symbol for index(es).]

:qu space
auto pause
lime mode

dimmr

5-0

0 Search speed button/indicator
Use this button to adjust fast forward and backward speeds
when using the search dial.

0 Auto space button
Press this button to set a silent interval of 3 seconds
between the songs on a disc.

0 Auto pause button
Press this button to activate the auto pause mode. in this
mode the unit automatically switches to the standby mode
immediately beiore the beginning of each track.

m Time mode select button
This button is used for the following two operations.»
ITo select the time display mode (time display mode
selection)
ITo specify playing time (preset edit play]

6 Dimmer switch
Use the dimmer switch to alter the brightnessot the display
panel,
CPress the dimmer switch ON (1....) to lower the
brightness of the display panel.
Press again (-41) to return to the normal brightness.

® Search dial
For high precision forward and backward searching.

0 Dial search switch/indicator
Press this button to activate dial search.
This indicator illuminates when the dial search switch is on.

Page 6

How to check the main P.C.B.

- When checking the soldered surface of the main

P.C.B. and replacing the parts. do as shown.
1. Remove the main P.C.B.

2. Place the main P.C.B. on the chassis as shown in
the figure.

Caution: Be sure to connect the main P.C.B. ground
terminal and the chassis with a lead wire.

l/Lead wire

1. Remove the 2 connectors (CN302, CN407).
2. Remove the FPC board (CN105).
3. Remove the 4 screws.

caution: Insert the shorting pin into the PFC board to
prevent breakdown of the laser diode.

RelgNo. How to remove the loading base 9';on How to remove the disc clamper
Proced re Procedure
1 . 4 .us Refer to optical pickup handling 1 no
precautlons (See page 11)_

0 Release the claw.

Disc clamper

Claw

5. Further pull out the disc holder to remove it.

Rack gear

Disc holder
/ DISC tray

Rez-1N0- How to remove the disc holder "92'3 How to remove the traverse unit
Procedure 1 :figfffi 0 Remove the 3 screws

1 b 4 O 11 11 O 13

1. Remove the screw. Silver

2. Push the rack gear slowly in the direction of the arrow 9

until the disc tray comes up. '
3. Pull the disc holder until it stops. Travese mm a o
4. Release the claw, ©

a.
J a»

Black Yellow

Caution: Note the color of the 3 springs, they must be
reinstalled to their original positions.

92'4 How to remove the optical pickup

Procedure
10409.10 0
11.14

92'2" How to remove the loading motor
Procedure
1.4 09 no t 1. Remove the drive belt.
11 12 2. Remove the 2 screws.
Note:
Red lead wire ....... (+) terminal
(close to the slit of the motor)
Brown lead wire ..... (7) terminal

Loading motor \\\

Drive belt

How to remove the switches (S101. $102)
0 Release the claws.

0 Note the fitting direction before remove it.

1. Remove the 2 screws 0 and the resistance unit.
2. Unsolderthe 2 terminals and remove the2 screws 6

3. Release the claws by using the pliers to remove the
lock shaft.

4_ Remove the 4 screws 0.
5. Pull out the optical pickup from the 2 guide shafts.

6. Remove the 2 screws 9 to separate the holder from
the optical pickup.

Lockshatt
Resistance/
unit { \
0K i \\ I
\
\ 0
\\\_
9 J a l
Terminals?
, . l
V iSLV i l
9 d

_1o_
