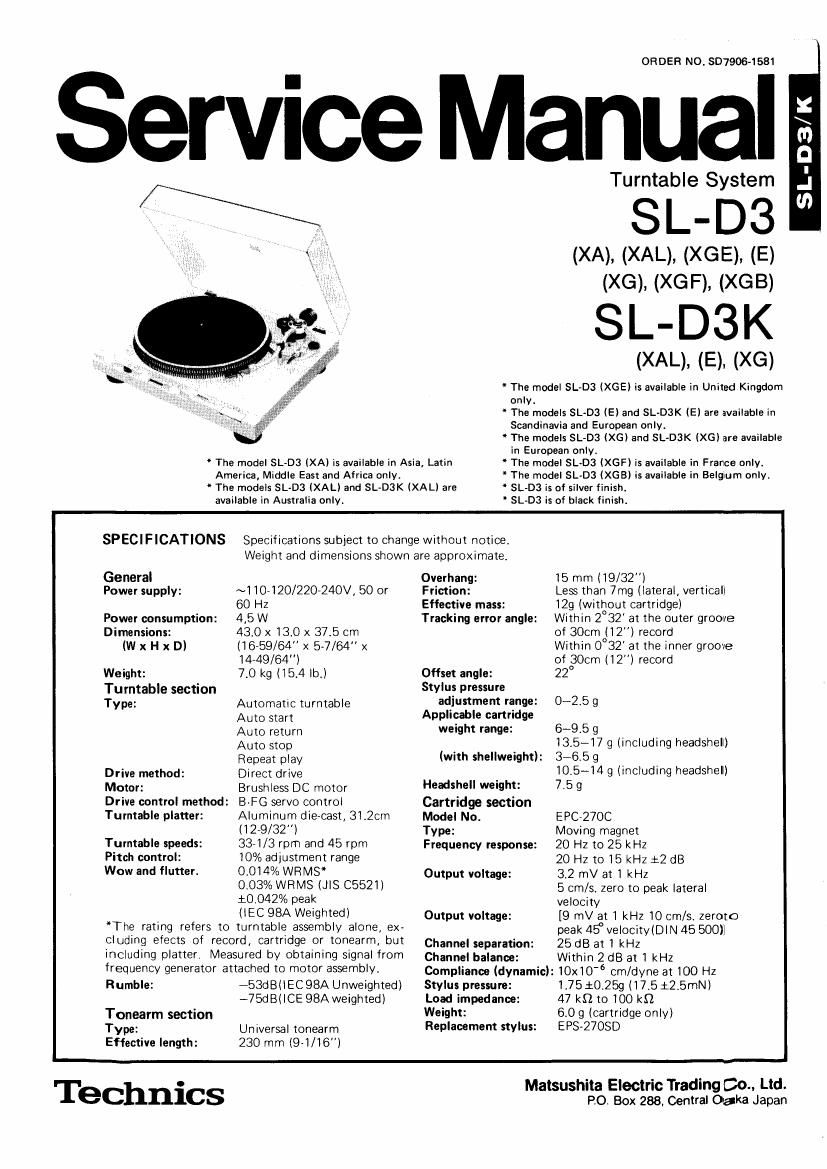

Page 1

ORDER NO. SD7906-1581

Service Manual

" The model SL-DS (XA) is available in Asia, Latin

America, Middle East and Africa only.

' The models SL-DS (XAL) and SL-D3K (XA L) are

available in Australia only.

Turntable System

SI.- D3

(XA), (XAL) (XGE), (E)
(XG), (XGF), (XGB)

SL- D3K

(XAL), (E). (XG)

The model SLvD3 (XGEl is available in United Kingdom
only.

" The models SL~D3 (E) and SL-D3K (E) are available in
Scandinavia and European only.

" The models SL in European only.

" The model SL-D3 (XGF) is available in France only.

' The model SL-D3 (XGB) is available in Belgium only.

SL-D3 is of silver finish.

" SL-D3 is of black finish.

General
Power supply:

Power consumption:

SPECIFICATIONS Specifications subject to change without notice.
Weight and dimensions shown are approximate.

~110A120/220724OV, 50 or
60 Hz
4,5 W

Overhang:

Friction:

Effective mass:
Tracking error angle:

15 mm (lg/32")

Less than 7mg (lateral, vertical)
129 (without cartridge)

Within 2°32' at the outer groove
of 300m (12") record

Within 0°32' at the inner groove
of 306m (12") record

Offset angle: 22°

Stylus pressure

Dimensions: 43.0 x 13.0 x 37.5 cm
(W x H x D) (16'59/64 x 5-7/64" x
14-49/64")
Weight: 7.0 kg (15.4 lb.)
Turntable section
Type: Automatic turntable
Auto start
Auto return
Auto stop
Repeat play
Drive method: Direct drive

Motor:
Drive control method:
Turntable platter:

Brushless DC motor

B-FG servo control
Aluminum die-cast, 31,2cm
(129/32)

334/13 rpm and 45 rpm

10% adjustment range
0.014% WRMS

0.03% WRMS (JIS C5521)
i0.042% peak

(lEC 98A Weighted)

*The rating refers to turntable assembly alone) ex-
cluding efects of record, cartridge or tonearm, but
including platter. Measured by obtaining signal from
frequency generator attached to motor assembly.
Rumble: 753dB(lEC 98A Unweighted)
-75dB(|CE 98A weighted)

Turntable speeds:
Pitch control:
Wow and flutter.

Tonearm section
Type:
Effective length:

Universal tonearm
230 mm (SM/16")

adiustrnent range: 0-2.5 g
Applicable cartridge
weight range: 6-9.5 g

(with shellweight):

Headshell weight:

Cartridge section
Model No.

Type:

Frequency response:

Output voltage:

Output voltage:

Channel separation:
Channel balance:

Compliance (dynamic):

Stylus pressure:
Load impedance:
Weight:
Replacement stylus:

135-17 9 (including headshel)
3-6.5 g

10.5-14 9 (including headshell)
7,5 g

EPC727OC

Moving magnet

20 Hz to 25 kHz

20 Hz to 15 kHz i2 dB

32 mV at 1 kHz

5 cm/s. zero to peak lateral
velocity

[9 mV at 1 kHz 10 cm/s. zeroto
peak 45° velocity(DlN 45 500))
25 dB at 1 kHz

Within 2 dB at 1 kHz

toxic-6 cm/dyne at 100 Hz
1.75 i0.259 (17.5 12.5mm
47 k9 to 100 k9

6.0 g (cartridge only)
EFS»27OSD

Technics

Matsushita Electric Trading (30., Ltd.
PO Box 288. Central Oaka Japan

Page 13

i i A
' ® _ /
"W?

l EXPLODED VIEWS
