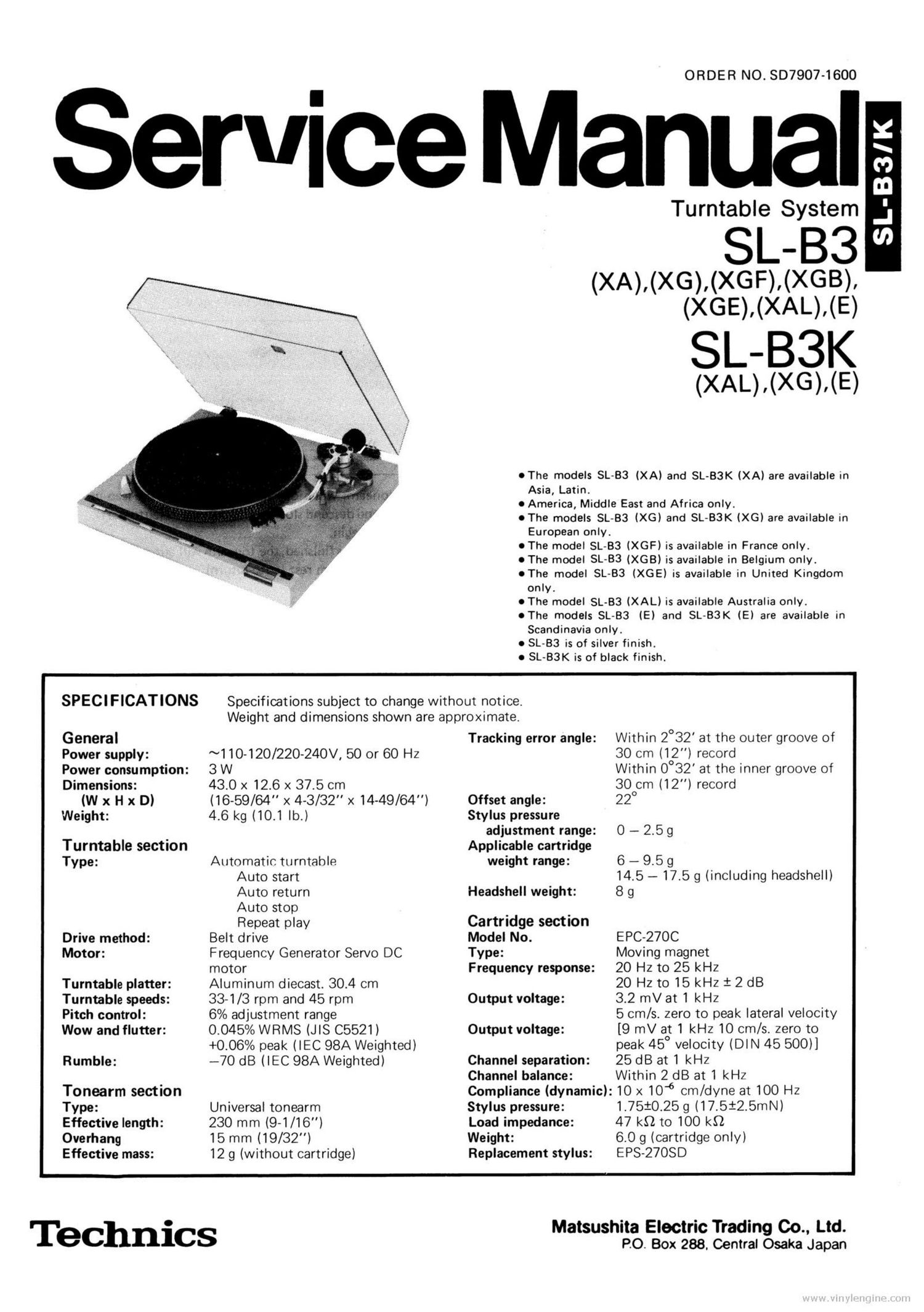

SerVice Manual

SPECIFICATIONS

General
Power supply:
Power consumption:
Dimensions:

(W x H x 0)
Weight:

Turntable section
Type:

Drive method:
Motor:

Turntable platter:
Turntable speeds:
Pitch control:
Wow and flutter:

Rumble:

Tonearm section
Type:

Effective length:
Overhang

Effective mass:

ORDER NO. 807907-1600

(XA), (XG),( (),XGF (X)GB
(XGE), (XAL),(E)

SL- 83K

X(AL)

oThe models SL-B3 (XA) and SL-B3K (XA) are available in
Asia, Latin.

0 America, Middle East and Africa only.

OThe models SL-83 (XG) and SL-B3K (XG) are available in
European only.

0 The model SL-B3 (XGF) is available in France only.

oThe model SL-B3 (XGB) is available in Belgium only.

oThe model SL-B3 (XGE) is available in United Kingdom
only.

0 The model SL-B3 (XAL) is available Australia only.

OThe models SL-83 (E) and SL-83K (E) are available in
Scandinavia only.

0 SL-B3 is of silver finish.

0 SL-B3K is of black finish.

Specifications subject to change without notice.
Weight and dimensions shown are approximate.

~110-120/220-240V, 50 or 60 Hz
3 W

43.0 x 12.6 X 37.5 cm

(16-59/64" X 43/32" x 14-49/64")
4.6 kg (10.1 lb.)

Automatic turntable

Auto start

Auto return

Auto stop

Repeat play
Belt drive
Frequency Generator Servo DC
motor
Aluminum diecast. 30.4 cm
33-1/3 rpm and 45 rpm
6% adjustment range
0.045% WRMS (JIS C5521)
+0.06% peak (IEC 98A Weighted)
-70 dB (IEC 98A Weighted)

Universal tonearm

230 mm (9.1/16")

15 mm (19/32")

12 9 (without cartridge)

Technics

Tracking error angle:

Within 2°32 at the outer groove of
30 cm (12") record
Within 0°32' at the inner groove of
30 cm (12) record

Offset angle: 220
Stylus pressure

adjustment range:

0-259

Applicable cartridge

weight range:

6-959
14.5 - 17.5 g (including headshell)

Headshell weight: 8 g

Cartridge section

Model No.

Type:

Frequency response:
Output voltage:
Output voltage:

Channel separation:
Channel balance:
Compliance (dynamic):
Stylus pressure:

Load impedance:
Weight:

Replacement stylus:

EPC-270C

Moving magnet

20 Hz to 25 kHz

20 Hz to 15 kHz i2dB

3.2 mV at 1 kHz

5 cm/s. zero to peak lateral velocity
[9 mV at 1 kHz 10 cm/s. zero to
peak 45° velocity (DIN 45 500))
25 dB at 1 kHz

Within 2 dB at 1 kHz

10 x1045 cm/dyne at 100 Hz
1.75i0.25 g (17.5i2.5mN)

47 kSl to 100 k9

6.0 g (cartridge only)
EPS-27OSD

Matsushita Electric Trading Co., Ltd.
PO. Box 288. Central Osaka Japan
