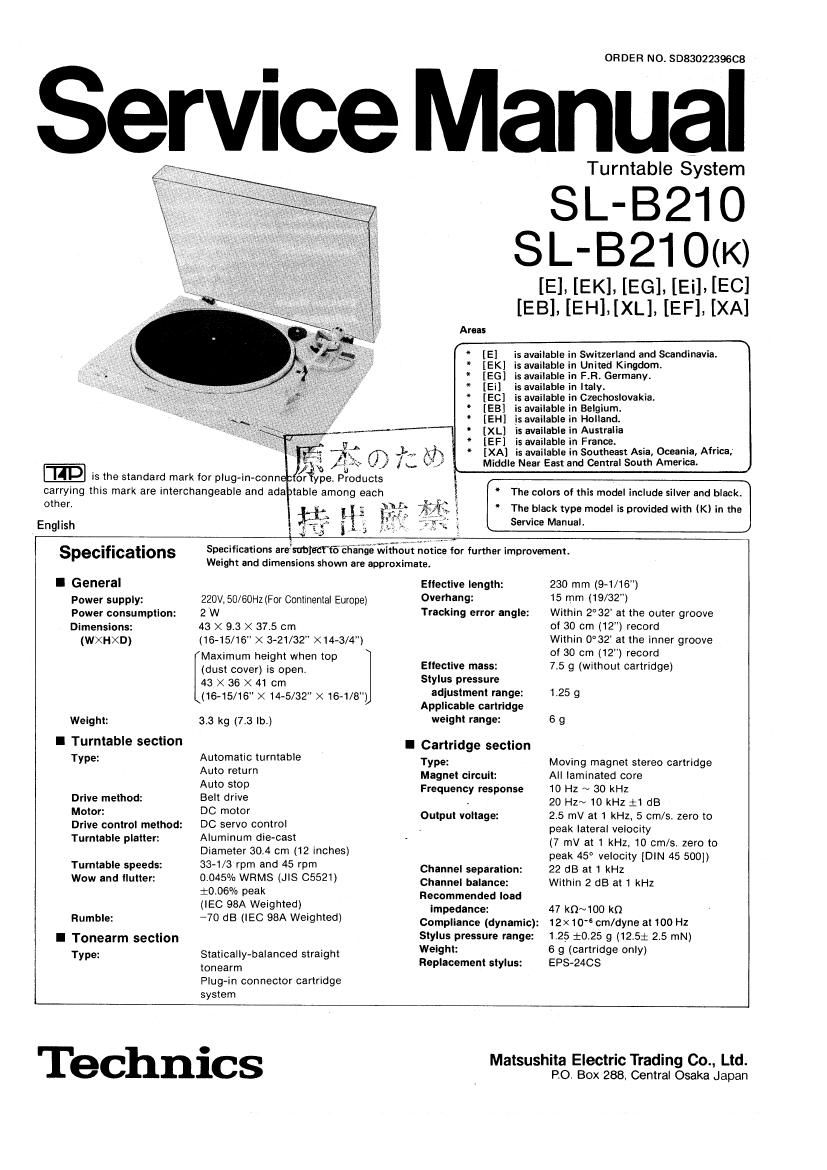

0R DE Fl N0. SD83022396C8
Service Manual
Turntable System
SL-BZ1O
SL-BZ1O(K)
[E], [EK]. [EG], [Ei], [EC]
[EB], [EHLlXLL [EFL [XA]
Areas
[E] is available in Switzerland and Scandinavia. W
[EK] is available in United Kingdom.
[E6] is available in FR. Germany.
[Eil is available in Italy.
[EC] is available in Czechoslovakia.
[EB] is available in Belgium.
[El-l] is available in Holland.
[XL] is available in Australia
[EF] is available in France.
[XA] is available in Southeast Asia. Oceania, Africa,
Middle Near East and Central South America. J
ttntetqus
El is the standard mark for plugvin-conne
carrying this mark are interchangeable and ada
" The colors of this model include silver and mam
other.
n
The black type model Is provided with (Kl in the
English Service Manual.
Specifications Specifications are @156!" f6" ahafigi'fiitiéfi notice for further improvement.
Weight and dimensions shown are approximate.
I General Elleclive length: 230 mm (9-1/16")
Power supply:
Power consumption:
Dimensions:
(WXHXD)
Weight:
I Turntable section
Type:
Drive method:
Motor:
Drive control method:
Turntable platter:
Turntable speeds:
Wow and llutter:
Rumble:
I Tonearm section
Type:
220V. 50/50Hz (For Continental Europe)
2 W
43 X 9.3 X 375 cm
(16-15/16 X 321/32" X14-3/4")
Maximum height when top
(dust cover) is open.
43 X 36 X 41 cm
(16-15/16" X 14-5/32"><16-1/8")
3.3 kg (7.3 lb.)
Automatic turntable
Auto return
Auto stop
Belt drive
DC motor
DC servo control
Aluminum die-cast
Diameter 30.4 cm (12 inches)
33-1/3 rpm and 45 rpm
0.045% WRMS (JIS 05521)
3:0.060/0 peak
(lEC 98A Weighted)
-70 dB (IEC 98A Weighted)
statically-balanced straight
tonearm
Piug»in connector cartridge
system
overhang:
Tracking error angle:
Effective mass:
Stylus pressure
adjustment range:
Applicable cartridge
weight range:
I Cartridge section
Type:
Magnet circuit:
Frequency response
Output voltage:
Channel separation:
Channel balance:
Recommended load
impedance:
Compliance (dynamic):
Stylus pressure range:
Weight:
Replacement stylus:
15 mm (19/32")
Within 2°32 at the outer groove
of 30 cm (12) record
Within 0°32 at the inner groove
of 30 cm (12") record
75 9 (without cartridge)
1.25 g
59
Moving magnet stereo cartridge
All laminated core
10 Hz ~ 30 kHz
20 Hz~ 10 kHz :1 dB
2.5 mV at 1 kHz, 5 cm/s. zero to
peak lateral velocity
(7 mV at 1 kHz. 10 cm/s. zero to
peak 45° velocity [DIN 45 500])
22 dB at 1 kHz
Within 2 dB at 1 kHz
47 k0~100 kQ
12X10 cm/dyne at 100 Hz
1.25 $0.25 9 (12.5i 2.5 mN)
6 g (cartridge only)
EPS-24CS
Technics
Matsushita Electric Trading Co., Ltd.
PO. Box 268. Central Osaka Japan
