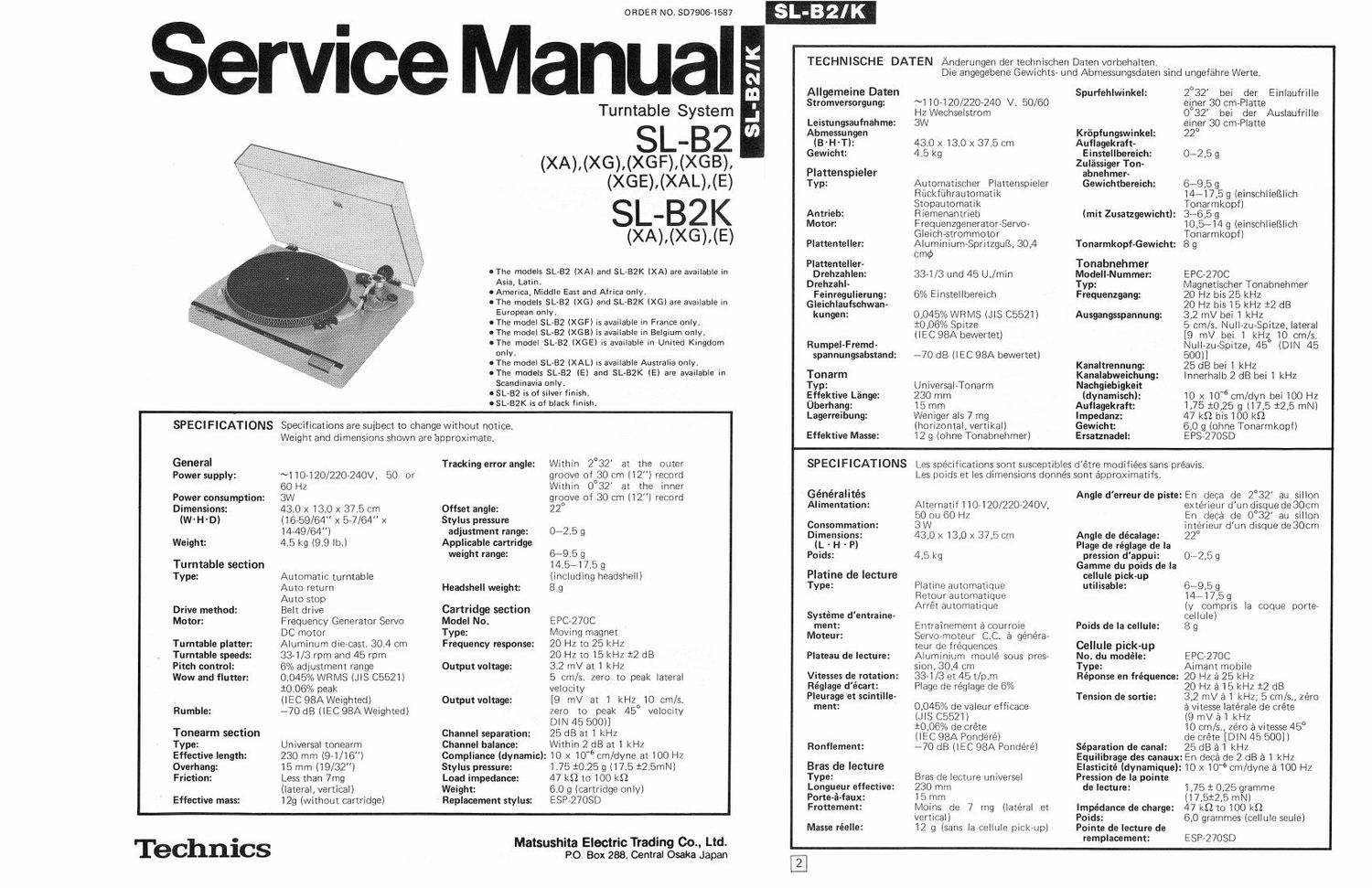

Technics SLB 2 Service Manual

Page 2

SL-B2IK

I CONTENTS

PARTS IDENTIFICATION .................. 3
FEATURES ....... . . . . .
HOW TO OPERATE ......
DISASSEMBLY PROCEDURE .
ADJUSTMENTS .......... . . . . . . .
TROUBLE SHOOTING ...................

I PARTS IDENTIFICATION

Hinge

Headshell stand

Turntable base

Center spindle
Turntable platter
Strobe dots

Strobe-illuminator/pilot lamp

Speed select knob

Pitch control knob

PARTS ARRANGEMENT DIAGRAM .............
SCHEMATIC DIAGRAM ............
PRINTED CIRCUIT BOARD WIRING VIEW. ...... 11
REPLACEMENT PARTS LIST ........
EXPLODED VIEWS . .
EXPLODED VIEWS

45-rprn adaptor

Balance weight
Stylusepressu re ring

Anti-skating control knob

Cueing lever
Arm rest
Arm clamp
Tonearm
Turntable mat
Locking nut

Headshell

Stop button

Fig. 1

I FEATURES

0 Front panel controls provide exceptional convenience

0 "TNRC"* base material provides an acoustic shield
*TNRC ..... Technics Non-Resonance Compound

0 Electronic speed switching

O Pitch control with illuminated stroboscope

Viscous-damped cueing

Anti-skating control

Hinged, detachable dust cover

0

Automatic tonearm return

l HOW TO OPERATE

1. Place a record on the turntable mat.
2. Set the speed select knob to the desired record speed.
(See Fig. 2)

Fig. 2

3. Remove the stylus protector, if your cartridge has a
detachable one.

4. Release the arm clamp.

5. Set the cueing lever to the up position. (See Fig. 3.)

Fig. 3

6. Move the tonearm over the desired groove.
The strobe-illuminator/pilot lamp will light up and the
turntable platter will start to rotate.

7. Set the cueing lever to the down position. (See Fig. 4.)
The tonearm will descend slowly onto the record and
play will begin.

8. When play is finished, the tonearm will automatically
return to the arm rest (auto-return), and the turntable
platter will stop rotation.

The turntable platter will continue to rotate briefly due
to its own inertia.

If the unit is not to be used for some time, set the speed
select knob to the neutral 0 position.

Attach the stylus protector, if you have one, to guard
the stylus tip from damage.

How to stop play

Push the stop button. (See Fig. 5.)

The tonearm automatically returns to the arm rest, and the
turntable stops rotating.

How to suspend play
Set the cueing lever to the up position.
The stylus tip of the cartridge will be lifted from the record.

When you play a 45-rpm record with a large center
hole

Place the 45-rpm adaptor on the center spindle. Set the
speed select knob to the 45" position.
