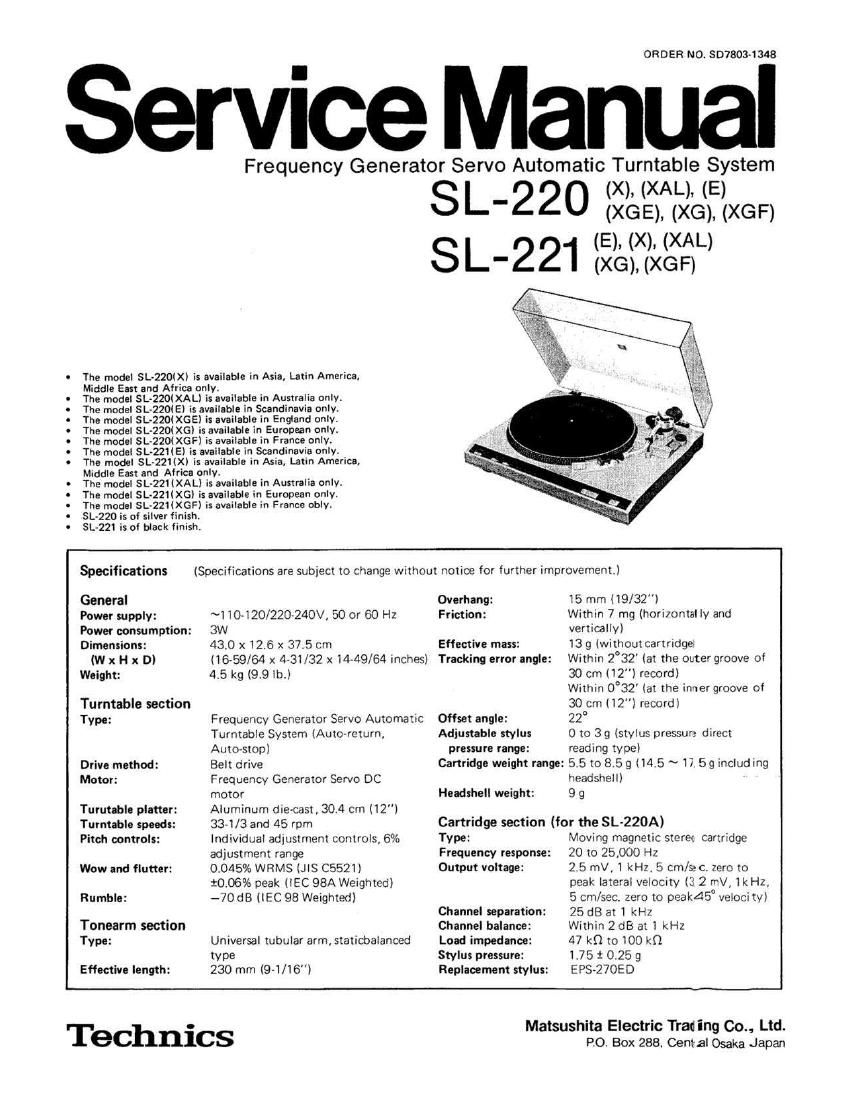

ORDER NO. 507803-1348
Service Manual
Frequency Generator Servo Automatic Turntable System
The model SL-ZZOlX) is available in Asia, Latin America,
Middle East and Africa only.
The model SL-220lXAL) is available in Australia only.
The model SL-ZZOlEl is available in Scandinavia only.
The model SL-220lXGEl is available in England only.
The model SL-220lXG) is available in European only.
The model SL-220lXGF) is available in France only.
The model SL-22HE) is available in Scandinavia only.
The model SL-221lX) is available in Asia, Latin America,
Middle East and Alrica only.
The model SL-221 lXAL) is available in Australia only.
The model SL-ZZHXGl is available in European only.
The model SL-22lleF) is available in France obly.
5L-220 is of silver finish.
SL-221 is ol black finish.
SL-220
SL-221
MLWAUJB
(XGE)(XG)(XGF)
EiwlfiAU
MGLMGH
Specifications
General
Power supply:
Power consumption: 3W
Dimensions: 43.0 x 12.6 x 37.5 cm
(W x H x D) (16-59/64 X 4-31/32 x 1449/64 inches)
Weight: 4.5 kg (9.9 lb.)
Turntable section
Type: Frequency Generator Servo Automatic
Turntable System (Auto-return,
Autostop)
Drive method: Belt drive
Motor: Frequency Generator Servo DC
motor
Turutable platter:
Turntable speeds:
Pitch controls:
331/3 and 45 rpm
adjustment range
Wow and flutter: 0.045% WRMS (JIS C5521)
10.06% peak (lEC 98A Weighted)
Rumble: -70dB EC 98 Weighted)
Tonearm section
Type:
type
Effective length: 230 mm (971/1 6")
~l iO»lZO/220~24OV, 50 or 60 Hz
Aluminum dieAcast, 30.4 cm (12")
Individual adjustment controls, 6%
Universal tubular arm, staticbalanced
(Specifications are subject to change without notice for further improvement.)
Overhang:
Friction:
Effective mass:
Tracking error angle:
Offset angle:
Adjustable stylus
pressure range:
Cartridge weight range: 5.5 to 8.5 g (14.5 ~ 17 5 9 including
Haadshall weight: 9 g
Cartridge section (for the SL-ZZOA)
Type:
Frequency response:
Output voltage:
Channel separation:
Channel balance:
Load impedance:
Stylus pressure:
Replacement stylus:
15 mm (lg/32")
Within 7 mg (horizontally and
vertically)
13 g (withom cartridge,
Within 2°32' (at the outer groove of
30 cm (12") record)
Within 0"32' lat the imer groove of
30 cm (12") record)
22°
0 to 3 g (stylus pressura direct
reading type)
headshel l)
Moving magnetic stare: cartridge
20 to 25,000 Hz
2.5 mV, 1 kHz. 5 cm/e, c. zero to
peak lateral velocity (2 2 mV, lkHz,
5 cm/sec. zero to peak45° veloci tv)
25 dB at 1 kHz
Within 2 dB at 1 kHz
47 k0 to 100 kQ
1.75 t 0.25 g
EPS-270ED
Technics
Matsushita Electric Trad ing 00., Ltd.
PO. Box 288. Cents! Osaka Japan
I EXPLODED VIEW
