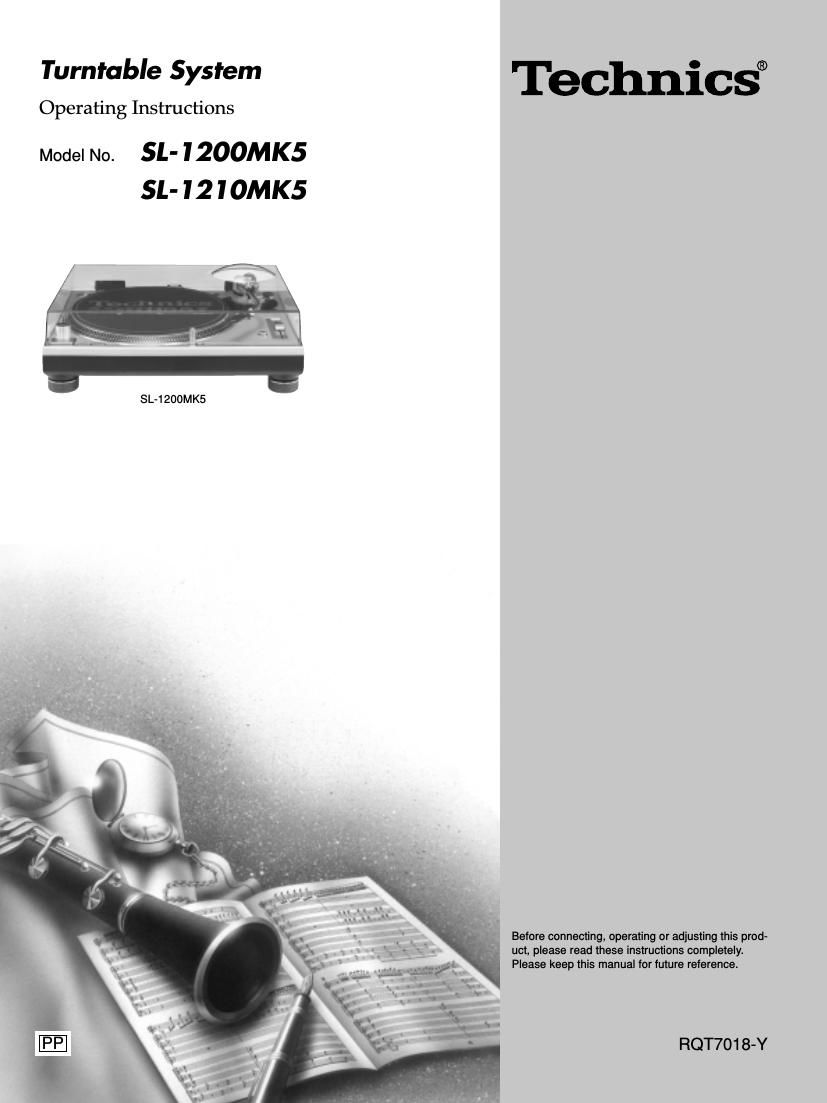

Technics SL 1210 Mk5 Owners Manual

Page 1

RQT7018 2 Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. SL-1200MK5 : Silver model SL-1210MK5 : Black model Table of contents Supplied accessories................................................................... 2 IMPORTANT SAFETY INSTRUCTIONS ....................................... 3 Features ......................................................................................... 4 Preparation of the cartridge ........................................................ 4 Controls ......................................................................................... 4 Putting the player together ......................................................... 5 Connections and installation ...................................................... 5 Connecting to an amplifier and AC power supply cord ............. 5 Connecting to an Audio Mixer (not included) ............................ 6 Installation.................................................................................. 6 Preparatory adjustments ............................................................. 6 Horizontal balance and stylus pressure .................................... 6 Anti-skating................................................................................ 7 Armlift height .............................................................................. 7 Tone arm height......................................................................... 7 Fit the dust cover ....................................................................... 7 Playing records ............................................................................. 8 Adjustments while using the unit ............................................... 9 Pitch control............................................................................... 9 Adjusting the turntable brake speed .......................................... 9 Maintenance ................................................................................ 10 Product service ........................................................................... 10 Troubleshooting guide ................................................................ 11 Specifications.............................................................................. 11 Supplied accessories Please check and identify the supplied ac- cessories. Use numbers indicated in parentheses when asking for replacements parts. (Only for U.S.A.)To order accessories contact 1-800-332-5368 or the website (http://www.panasonic.com). Turntable.................1pc. (SFTE172-01Z1) Turntable mat ..........1pc. (RGS0008) Disc slip sheet set (RGS0005Z-1)................ 1 -Disc slip sheet -Transparent sheet Dust cover ...............1pc. (RYF0370B-X) Head shell (SFPCC31001K) ......1pc. A cartridge is not included. Balance weight.......1pc. (SFPWG17201K) Auxiliary weight ......1pc. (SFPWG17202) EP record adaptor (SFWE010)...............1pc. Shell weight ............1pc. (SFPZB3501) Overhang gauge .....1pc. (SFK0135-01) Screw set for cartridge ........................................ 1 -Nuts(RHN26003) - Screws-short(SFCZV8801-1)-Screws-long(SFPEV9801-1)-Washers(SFPEW9601) Sticker ......................1pc. (RQLC0142-1) The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference. MODEL NUMBERSL-1200MK5 / SL-1210MK5 SERIAL NUMBER CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. CAUTION! DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of suffi- cient magnitude to constitute a risk of electric shock to persons. CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. RISK OF ELECTRIC SHOCK DO NOT OPEN User memo: DATE OF PURCHASE DEALER NAME DEALER ADDRESS TELEPHONE NUMBER The following mark and symbols are located on the bottom of the unit.

Page 2

RQT7018 3 Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8) Do not install near any heat sources such as radiators, heat reg- isters, stoves, or other apparatus (including amplifiers) that pro- duce heat. 9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particu- larly at plugs, convenience receptacles, and the point where they exit from the apparatus.11) Only use attachments/accessories specified by the manufac- turer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normal- ly, or has been dropped. IMPORTANT SAFETY INSTRUCTIONS THE FOLLOWING APPLIES ONLY IN THE U.S.A. CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ¡Reorient or relocate the receiving antenna. ¡Increase the separation between the equipment and re- ceiver. ¡Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ¡Consult the dealer or an experienced radio/TV technician for help. Any unauthorized changes or modifications to this equipment would void the users authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 5

RQT7018 6 Connections and installation Connecting to an Audio Mixer (not included) -Disconnect all units from the power source before making any con- nections. -Reconnect the AC power supply cord after all other connections are complete. Installation -Install the unit on a horizontal surface protected from vibrations. -Keep this unit as far as possible from speakers. -Ensure the unit is not exposed to direct sunlight, dust, humidity, and heat from a heating appliance. -This unit may pick up interference from a radio if there is one nearby. Keep radios as far as possible from this unit. Adjusting the height of the insulators Place the unit where it is to be used and adjust the height of the legs to make the unit horizontal. Preparatory adjustments Horizontal balance and stylus pressure 1 Release the tone arm. 1. Remove the stylus cover, taking care not to dam- age the stylus, then release the arm clamp. 2. Free the tone arm from the arm rest. Arm clamp 2 Adjust horizontal balance 1. Push the cue lever down. 2. Turn the anti-skating control to 0. 3. Turn the balance weight until the arm is approxi- mately horizontal. Take care at this time not to allow the stylus to touch the unit. Arm clamp Arm rest Cue lever Anti-skating controlBalanced Too far forward Too far back 3 Turn the stylus pressure control to 0 1. Return the tone arm to the arm rest and fix it with the arm clamp. 2. Turn the stylus pressure control to 0. Hold the balance weight still while doing this. Balance weight Center line Turn stylus pressure control Arm clamp 4 Adjust stylus pressure Turn the balance weight to adjust to the appropri- ate pressure for the cartridge you are using. See the cartridges instructions for recommended stylus pres- sure. The stylus pressure control will turn at the same time. Stop when the center line points to the required pressure. Turn balance weight Center line Unit Earth lead Audio mixerUnit
