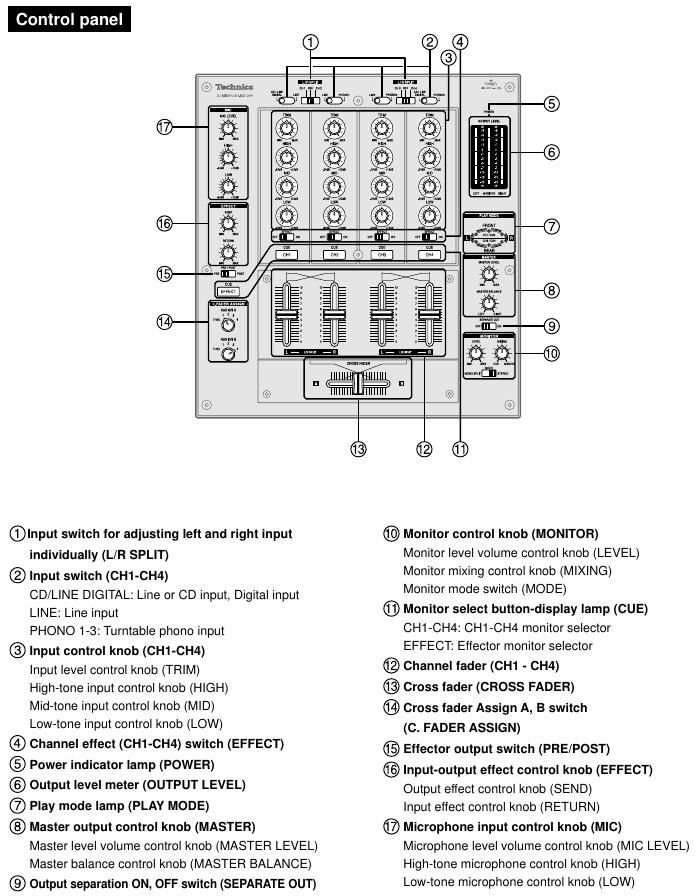

Con rol panel
@lnput switch for adiusting left and right input
individually (L/R SPLIT)
® Input switch (CH1-CH4)
CD/LINE DIGITAL: Line or CD input, Digital input
LINE: Line input
PHONO 1-3: Turntable phono input
© Input control knob (CH1-CH4)
Input level control knob (TRIM)
High-tone input control knob (HIGH)
Mid-tone input control knob (MID)
Low-tone input control knob (LOW)
@ Channel effect (CH1-CH4) switch (EFFECT)
6) Power indicator lamp (POWER)
© Output level meter (OUTPUT LEVEL)
® Play mode lamp (PLAY MODE)
Master output control knob (MASTER)
Master level volume control knob (MASTER LEVEL)
Master balance control knob (MASTER BALANCE)
@ Output separation ON, OFF switch (SEPARATE OUT)
Monitor control knob (MONITOR)
Monitor level volume control knob (LEVEL)
Monitor mixing control knob (MIXING)
Monitor mode switch (MODE)
® Monitor select button-display lamp (CUE)
CH1-CH4: CH1-CH4 monitor selector
EFFECT: Effector monitor selector
62 Channel fader (CH1 - CH4)
63 Cross fader (CROSS FADER)
Cross fader Assign A, B switch
(C. FADER ASSIGN)
@ Effector output switch (PRE/POST)
Input-output effect control knob (EFFECT)
Output effect control knob (SEND)
Input effect control knob (RETURN)
© Microphone input control knob (MIC)
Microphone level volume control knob (MIC LEVEL)
High-tone microphone control knob (HIGH)
Low-tone microphone control knob (LOW)
Front panel
Ftear panel
M ms. was. Mm Wm.
wmfig.
II'II'IEI II'IIEI I'II'IEI II'II'IEI
WEE).
Cross fader curve control switch
(C.FADER CURVE)
Curve switch (CURVE)
Cross fader operation switch (CROSS FADER)
® Fader operation switch (CH1-CH4 FADER)
® Headphone terminal (PHONES)
® Fader start (ON, OFF) switch (FADER START)
@ Power button (POWER IOFF ._.ON)
@ Turntable earth terminal (PHONO EARTH)
@ Input terminal (CH1-CH4)
CD/LINE: CD or line terminal
LINE: Line terminal
PHONO 1-3: Turntable phono terminal
@ Microphone input terminal (MIC1, MICZ)
@ Effector input-output terminal
(EFFECT RETURN, EFFECT SEND)
® Player control (CH1, CH4) terminal
(PLAYER CONTROL)
Digital output terminal (DIGITAL OUT)
@ Digital input (CH1, CH4) terminal (DIGITAL IN)
Output terminal
Master out 1, 2 terminal (MASTER OUT)
Monitor out terminal (MONITOR OUT)
Rec terminal (REC OUT)
@ Power input terminal (AC IN ~)
