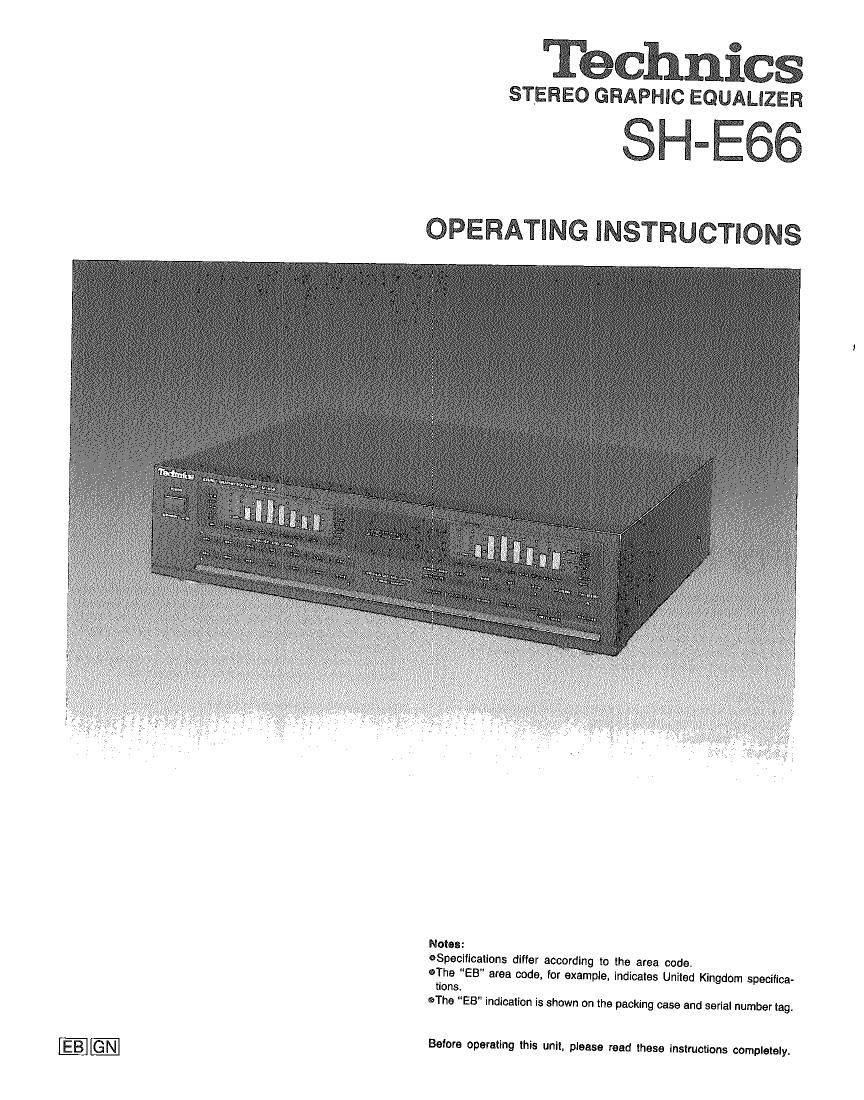

Technics

STEREO GRAPHIC EQUALIZER

SH-E66

OPERATING INSTRUCTIONS

Notes:

OSpeciticalions differ according to the area code.

0The EB" area code, for example, indicates United Kingdom specifica-
iions.

OThe EB" indicalion is shown on the packing case and serial number tag.

Before operating this unii, please read ihase instructions completely.

E

Page 2

9W y/exea egg-m

We want to thank you for selecting this product and
to welcome you to the growing family of satisfied
Technics product owners around the world.

We feel certain you will get maximum enjoyment

from this new addition to your home.

Please read these operating instructions carefully,
and be sure to keep them handy for convenient
reference.

Contents

0For United Kingdom .... ........... 2
OSuggestions for Safety . 3
0Accessories .......... . 4
OConnections . . . .. ......... . ....... . . . 5
0Front Panel Controls and Functions ..... .. 6

Fer United Kingdom

(EB" area code model only)

The EB" indication ls shown on the serial number tag.

The plug of the AC power supply cord must only be connected to
electronic apparatus equipped with suitable socketsl

Otherwise cut off and dispose of the plug. and fit an appropriate
one in accordance with the Instruction below

Important

THE WIREs IN THIS MAINS LEAD ARE COLOURED IN ACCOR-
DANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

OOperation .................................. 8
OTroubleshooting Guide Back cover
OMaintenance ............ Back cover
OTechnical Specifications . . Back cover

As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the terminals
in your plug proceed as follows, The wire which Is coloured BLUE
must be connected to the terminal which Is marked with the letter N
or coloured BLACK.

The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.

This apparatus was produced to BS 800,
