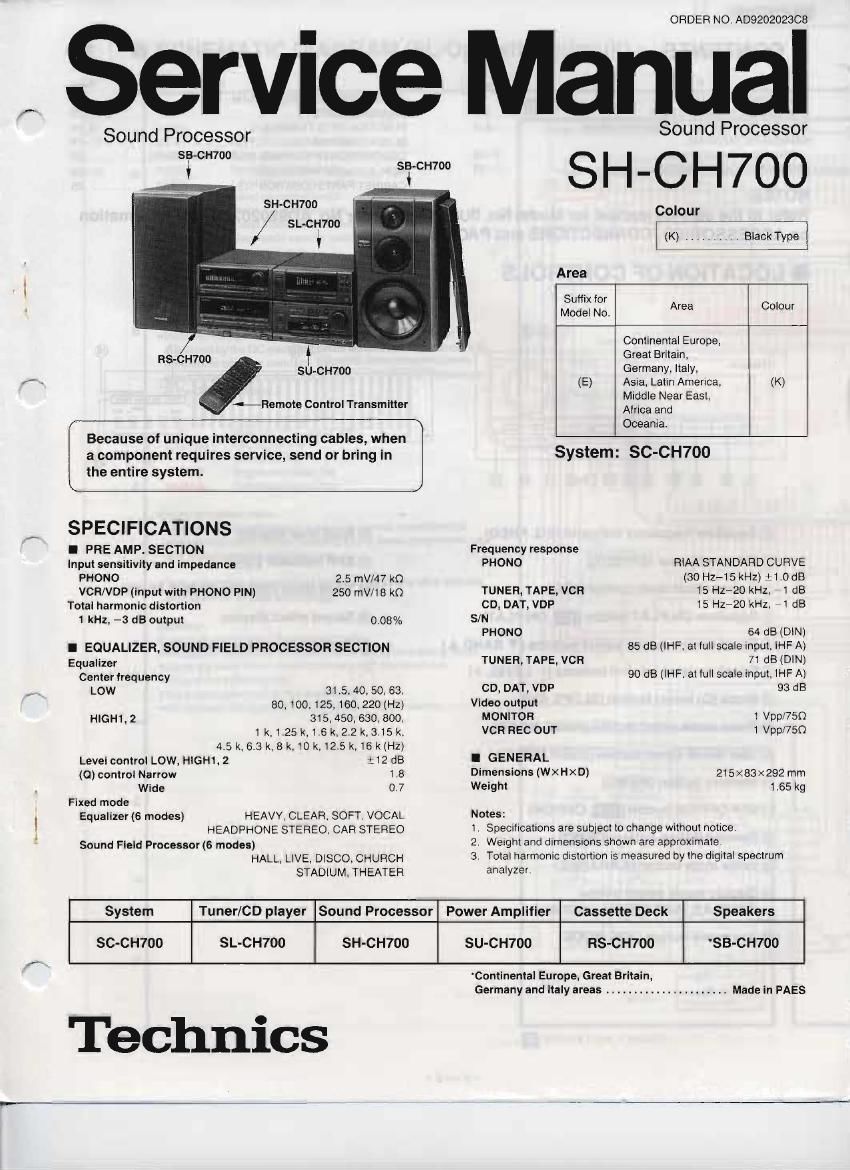

Service Manual
Sound Processor
SQ-CH700
Sg-CH7OO
SH-CH700
SL-CH7OO
RS-CH700
SU-CH700
kRamote Control Transmltlar
Because of unique interconnecting cables, when
a component requires service, send or bring in
the entire system.
SPECIFICATIONS
l PRE AMP. SECTION
Input sensitivity and impedance
PHONO 2.5 mV/47 k0
VCR/VDP (input with PHONO PIN) 250 UN 8 kfl
Total harmonic distortion
1 kHz, -3 dB output 0.08%
I EQUALIZER, SOUND FIELD PROCESSOR SECTION
Equalizer
Center frequency
LOW 31,5, 40, 50, 63.
80, 100. 125, 160, 220 (HZ)
HIGHI, 2 315. 450, 630, 800.
1 k, 1.25k,1.6k, 2.2k,3.15 k.
4.5k,6.3k.8k,10k,12.5k,16k(Hz)
Level control LOW,Hth-l1,2 :12 dB
(0) control Narrow l 8
Wide 0 7
Fixed mode
Equalizer (6 modes) HEAVY, CLEAR, SOFT. VOCAL
HEADPHONE STEREO, CAR STEREO
Sound Field Processor (6 modes)
HALL, LIVE, DISCO, CHURCH
STADIUM, THEATER
Sound Processor
SH-CH7OO
Colour
(K) ........ . Black Type
Area
Suffix for
Model No. Area Colour
Continental Europe,
Great Britain,
Germany, Italy,
(E) Asia, Latin America, (K)
Middle Near East,
Africa and
Oceania.
System: SC-CH700
Frequency response
PHONO FtlAA STANDARD CURVE
(30 Hz-1 5 kHz) :10 dB
TUNER, TAPE, VCR 15 Hz-20 KHz. 1 US
CD, DAT, VDP 15 Hz-20 kHz, ,1 dB
S/N
PHONO 64 dB (DIN)
85 dB (HP. at full scale input, IHF A)
TUNER,TAPE,VCR 71 dB(D|N)
90 dB (IHF. at full scale input, IHF A)
CD, DAT, VDP 93 dB
Video output
MONITOR 1 Vpp/750
VCR FIEC OUT 1 Vpp/750
I GENERAL
Dimensions (WXHXD) 215x83><292 mm
Weight 1.65 kg
N ates :
1. Specifications are subject to change without notice,
2 Weight and dimensions shown are approximate.
3 Total harmonic distortion is measured by the digital spectrum
analyzer.
Technics
System Tuner/CD player Sound Processor Power Amplifier Cassette Deck Speakers
SC-CH700 SL-CH700 SH-CH700 SU-CH700 RS-CH700 SB-CH7OO
Continental Europe, Great Britain,
Germany and Italy areas . . . ................ Made in PAES
SH-CH700 I
I CONTENTS
LOCATION OF CONTROLS .,
DISASSEMBLY INSTRUCTION . . . ,
SCH EMATIC DIAGRAM (FL/Operation CITCUII] ............ 5, 6
SCHEMATIC DIAGRAM
(Main/Inpul-Output circuit) ...................... 7 . 7~ 10
PRINTED CIRCUIT BOARDS ............... ... .. I1~13
NOTES:
WIRING CONNECTION DIAGRAM ...........
MEASUREMENTS..,........,...,.
FUNCTION OF IC TERMINALS .................... 16,17
BLOCK DIAGRAM ............................... I7~IQ
DESCRIPTION OF FL PANEL [FL801 (RSL0113»F)I ..........
REPLACEMENT PARTS LIST ............. V ...... 21 ~25
CABINET PARTS LOCATION ..........................
Refer to the service manual for Model No. SU-CH700, Order No. AD9202022C8 for information
on ACCESSORIES, CONNECTIONS and PACKAGING.
I LOCATION OF CONTROLS
m Momma no
6) Equalizer frequency indicator (EO, FREQ)
(2) Effect indicator (EFFECT)
(3) Sound effect level control (JOG)
@ Equalizer ONIFLAT button (Ea, ON/FLAT)
@ Equalizer frequency select buttons (V BAND A)
© Equalizer level-control buttons (- LEVEL +)
® Slope (0) select button [SLOPE (0)]
Fixed mode select button (FIXED MODE)
© User mode select button (USER MODE)
® Memory button (MEMO)
® SFP OFF/0N button (-, OFF/ON)
® Demonstration button (DEMO)
® Voice mute button (KARAOKE)
@ Display mode select button
(DISPLAY, -SPECTRUM -MODE)
® Jog mode button (.106 MODE)
aDisplay
L--@
'55?
Vulnmwa
w; m sec
(m)
Multi level display
@ SFP indicator (Lg?)
Voice mute indicator (VOICE MUTE)
Sound effect display
® Sampling frequency indicator
