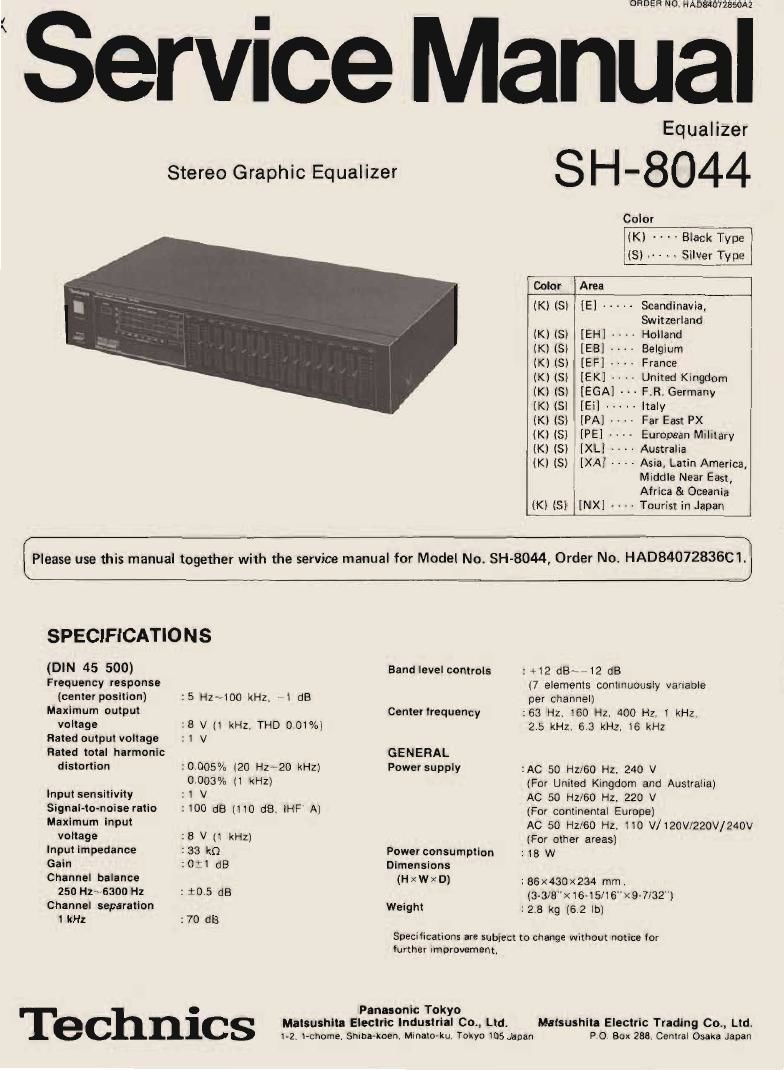

ORDER NO HA084077850A7
Service Manual
Equalizer
Stereo Graphic Equalizer S H - 8044
Color
(K) - - - - Black Type
IIS) 1- a -- Silver Type
3'7" 7 Ar :
(KI (S) [E] ----- Scandinavia,
Switzerland
IK) (SI [EH] ---- Holland I
(K) (S) IIEBI ---- Belgium
(K) (S) [EFI -- ,. France
(K) (S) [EK] ---- United Kingdom
(K) (S) [EGA] - -- FR. Germany
(KI (S) [Ei] ----- Italy
(K) (3) [PA] -~ - ~ Far East PX
IKI (5) [PE] -- - European Military
(K) (S) [XLI ~--- Australia
(K) (S) [XAI --»- Asia, Latin America,
Middle Near East,
Afri &0ceania
1K) (S) [NX] -- - Towns in Japan
Please use this manual together with the service manual for Model No. SH-8044, Order No. HAD8407283601. }
SPECIFICATIONS
(DIN 45 500) Band level controls : +12 dB~r12 (13
Frequency response (7 elements conlmuously variable
(center position) :5 Hz~100 kHz, 1 GB per channel)
Maximum output Centerlrequency :63 Hz_ 160 Hz, 400 Hz 1 kHz
voltage :8 V (1 kHz THD 0.01%) 25 kHz, 63 kHz. 16 kHz
Hated output voltage 1 V
Rated total harmonic GENERAL
distortion :0,005% [20 Hz~20 kHz) Power supply :AC 50 Hz/60 Hz. 240 V
0.003% [1 kHz) {For United Kingdom and Australia)
Inputsensitivity :1 V AC 50 Hz/60 HZ, 220 V
Signal-to-nmse ratio : 100 dB (110 dB. IHF A) (For continental Europe)
Maximum input AC 50 Hz/60 HZ. 110 V/120V/220V/240V
voltage :8 V (1 kHz) (For other areas)
lnputlmpedance :33 k0 Powerconsumption :18 W
Gain :O:1 dB Dimensions
Channel balance (HXWXD) :86x430x234 mm,
250 H1~6300 Hz 1:0,5 dB (3-3/E"><16»15/16X9-7/32")
Channel separation Weight :2.8 kg (6.2 lb)
1 kHz :70 dB
Specifications are subject to change without notice for
further improvement.
Panasonic Tokyo
.
Matsushita Electric Industrial Co., Ltd. Matsushita Electric Trading Co., Ltd.
1-2. I-chome, Shim-keen. Minato»ku. Tokyo 105 Japan P O Box 288 Central Osaka Japan
