Technics SE 9200 Owners Manual

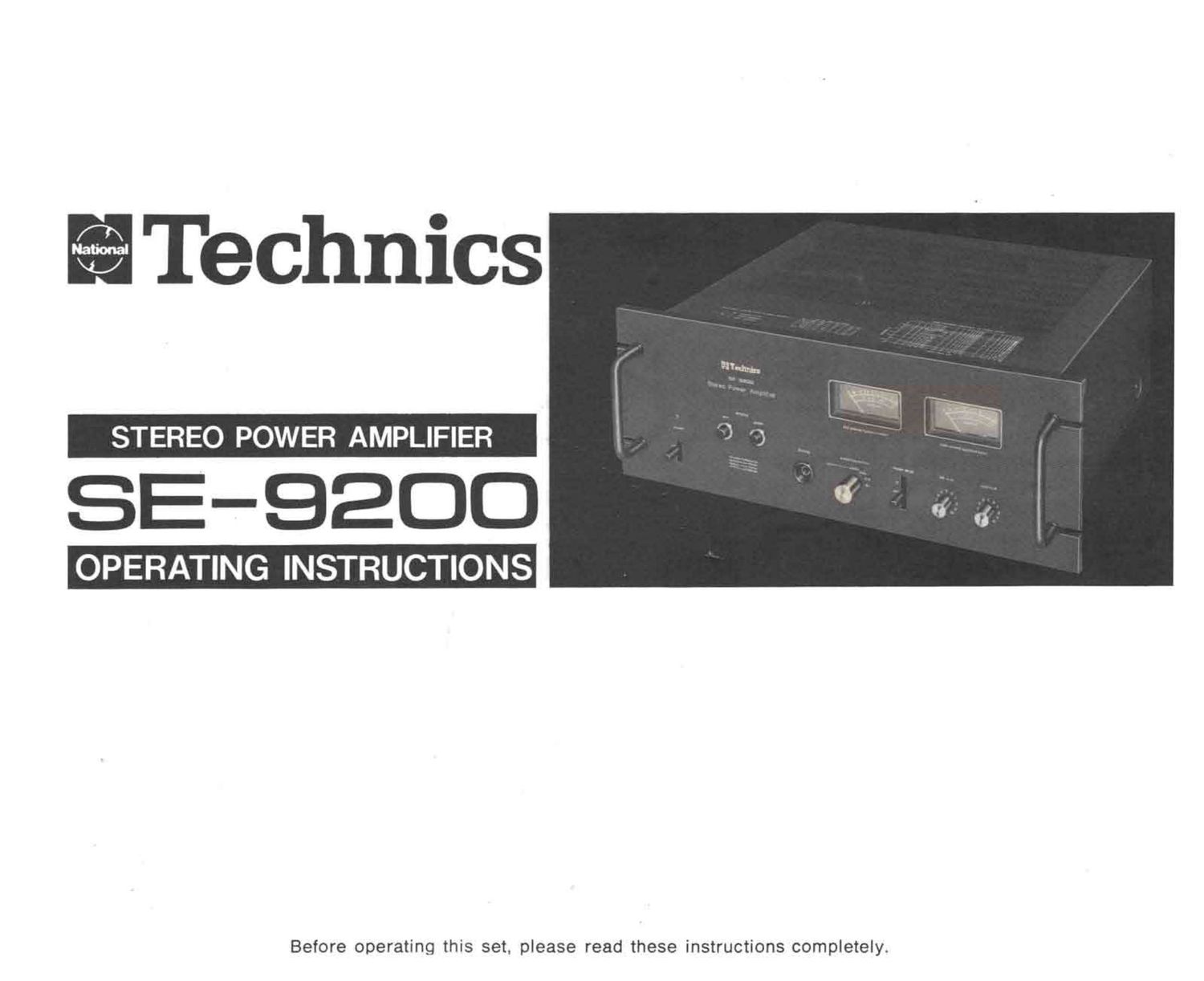

Page 1

ITechnics

SE-SEOD

OPERATING INSTRUCTIONS

Before operating this set, please read these instructions completely.

Page 2

HELPFUL HINTS

Thank you for selecting the Technics model
SE-9200 power amplifier.

The model SE-9200 is the result of the combined
efforts of Technics engineers who have de-
voted many long years of research to improving
the efficiency and sound reproduction of audio
equipment, and each unit is designed so as to
assure maximum reliability and high quality
performance.

In order to assure that you will receive maximum
benefit from the many features of this unit, we
urge you to carefully read and follow the operat-
ing instructions in this booklet.

CONTENTS
HELPFUL HINTS ....................................... 1
STAR FEATURES .................................... 2
CONTROLS AND THEIR FUNCTIONS ............ 3
CONNECTION WIRING FOR A
STEREO SYSTEM .................................... 5
CONNECTIONS AND OPERATIONS ............ 6
SPEAKER CONNECTIONS AND
OPERATION .......................................... s
PRE-AMPLIFIER CONNECTIONS AND
OPERATION .......................................... 6
CONNECTION AND USE OF
HEADPHONES ....................................... 6
AC OUTLET(UNSwITCHED) ...................... 6

HOW TO READ THE PEAK LEVEL METERS 7
HOW TO USE THE OUTPUT IMPEDANCE

SELECTOR ............................................. 7
RESPONSE CURVES ................................. 9
TECHNICAL SPECIFICATIONS ..................... 10

1. Keep this unit away from electrical noise-generating

devices such as motors and fluorescent lamps.

2. The set should not be exposed to direct sunlight and

should be kept free from dust, moisture and vibration.

3. The set is ventilated through vents on the top and bottom

of the cabinet. 00 not place any object on the top or place
the set on a soft surface which might block the ventila-
tion holes and result in too much internal heat.

Place the amplifier in a position away from any heat
source.

4. The cabinet of this unit should be given the same care

which you would give any piece of fine furniture. The
front panel should be cleaned with a soft cloth moisten-
ed with a mild soap-and-water solution.

NEVER USE A SOLUTION CONTAINING BENZOL OR
PETROLEUM.
