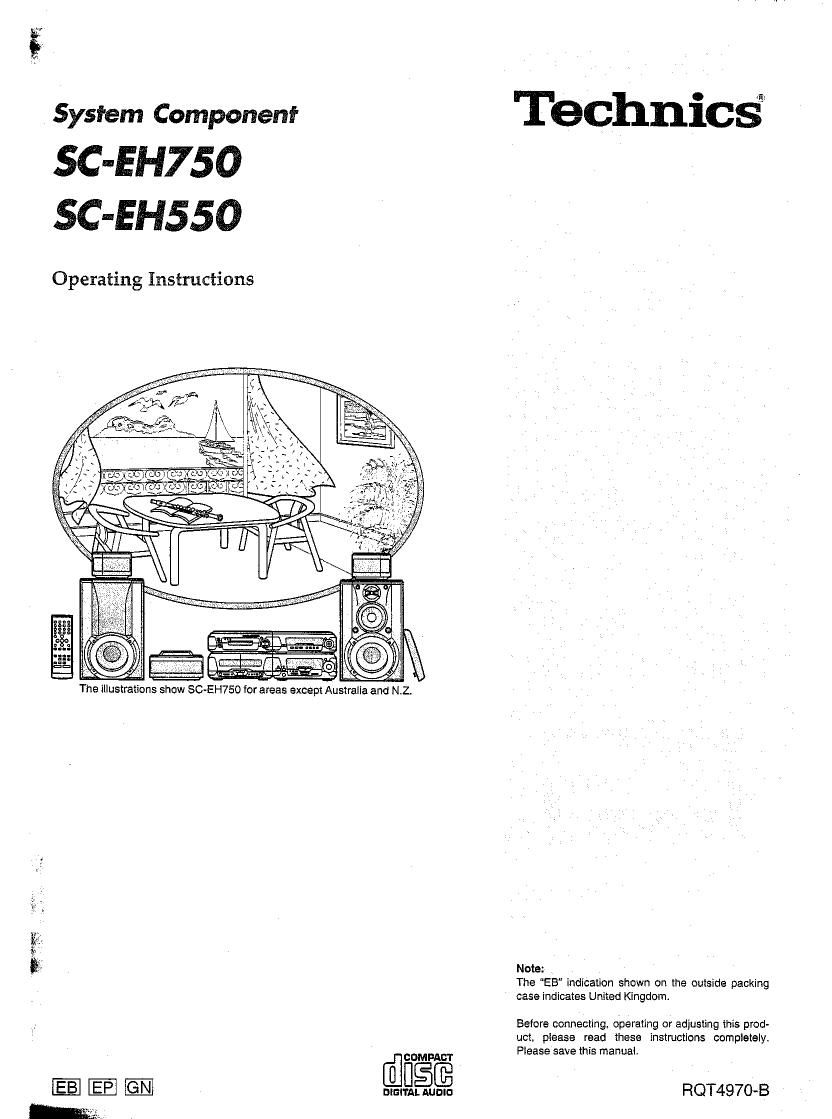

System Component TeChniCS
5C-EH750
SC-EH550
Operating Instructions
A J :53. - meg-Q r .15.. l,
he illustrations show SC-EH750 for areas except Australia and NZ.
Note:
The EB" indication shown on the outside packing
case indicates United Kingdom.
mes-«f
Before connecting. operating or adjusting this prod-
uct, please read these Instructions completely.
COMPACT Please save this manual.
DIGITALAUDIO RQT4970-B
m
Dear customer
. .
Thank you for purchasing this system, SUPPIIed accessorles
For 0 timum ertormance and safe , lease read these instructions _ _
carefLIIIIy. l3 W P % Please check and Identify
These operating instructions are applicable to the following systems. the SUPPIISd BCGSSSOYIES-
These operating instructions, however, iundamentally explain the I:I AC power | cl 1 PC
- . supp y cor ....................... .
Operaflon Of sysmm SC EH750' For United Kingdom For Australia and N2.
System SC-EH750 SC-EH550 (mom) (RJA0035'X)
Sound processor SH-EH75D SH-EHSSO
Tuner amplifier SA-EH750 SA-EH550
CD changer SL-EH750 -- .
CD player - SL-EH55I) For others
Cassette deck RS-EH75O RS-EH750 (01)
(For Australia
and N1) .
Front SB-EH750A SB-EH550
(Forothers)
Speakers 53-21-1750
Canter SB-Pc75 - |:I Remote control transmitter . . .......... 1 pc.
Surround SB-PS75 -
(RAK-EHA16WH) (RAK-EHA18WH)
CAUTION! '
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORM-
ANCE 0F PROCEDURES OTHER THAN THOSE SPECI-
FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR D Remote control batteries ................... 2 pca.
VOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
CAUTION!
DO NOT INSTALL 0R PLACE THIS UNIT IN A BOOK: El FM Indoor antenna .......................... 1 pc.
CASE, BUILT IN CABINET OR IN ANOTHER CONFINED For Australia and NZ. For others (RSADOD7)
SPACE IN ORDER TO KEEP WELL VENTILATED CONDI- (RSAOOOG)
TION. ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION
CONDITION TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING.
D AM loop antenna set (RSAoozz-J)
DAM loop antenna ............................ 1 pc.
CLASS 1 IAntenna holder (RMN0244) .................... 1 pc.
LASER PRODUCT (Backofpm) Q [Eat
CI Speaker cords ............................ 4 pcs_
rec-E14550
(REE0393) (REEDBSS) (REEO499) (REEOBSS)
(Red - Black) (Gray- Blue) (Red - Black) (Gray. mug)
%%%%
, \ D Antenna plug adaptor (SJPBOOS) .............. 1 pc.
DANGER IIILITSIEDLIIIIEEIIIIIIIIIIO KIIOFHI "5 °'I"°") (United Kingdom only)
(Inderslden at separator)
CD changer or CD player
ADVARSEL
VAFD! (Tuolteen siséilal
VARNING (Apparatens insida)
ADVARSEL (Produktsls innslde)
VORSICHT u (lm Inneren des Gerélesj Use numbers indicated in parentheses when asking for replacement
parts.
SEAT SEAT
- (0n the tuner amplifier)
] vosrnou POSITION '
i
Sound field/tone quality operations/ other functions
Using the seat position function El
OThis function lets you adjust the listening position for better effect.
OWith SC-EH750. this mode can only be turned on or off if the [SEAT
POSITION] lamp is orange (- page 31). The mode cannot be used
it the lamp is off.
With SC-EH550, this mode can only be used when Virtual Dolby
Surround is on.
[I Press [SEAT POSITION].
The [SEAT POSITION] lamp flashes green.
While the indicator is flashing change the seat position.
Within 10 seconds
Adjust the seat position.
To turn off the SEAT POSITION mode
Press [SEAT POSITION] once to select the function and once again
to turn it off while the lamp flashes.
With the remote control
1. Press [AV EFFECT].
2. Press [4] or [b] so the [SEAT POSITION] lamp flashes.
3. Press [A] (ON).
4. Press [4], [b]. [V], or [A] to adjust the seat position.
To turn it off, after steps 1 and 2, press [V] (OFF).
1. Press [SEAT POSITION] so the [SEAT POSITION] lamp flashes.
2. Press [4] or [H to adjust the seat positlon.
To turn it oft. press [SEAT POSITION] so the [SEAT POSITION]
lamp goes out.
Owhen used with vlrtual rear surround (SG-EH750 only), seat posi-
tion is changed In a horizontal steps.
IWith SC-EH550, seat position is changed in 5 horizontal steps.
With virtual rear surround Sc-EH550
|:l|:ll:l
Concerning the display
The sound processor shows the level of each sound range with the
three types of display described below. E3
Press [DISPLAY MODE].
The spectrum display will change as follows.
m Normal display
This display indicates the strength of the sound in each tonal
range.
E Peak-hold display
The peak sound value of each sound range is held on the dis-
play tor about one second after it occurs.
E] Aurora display
The peak sound value of each sound range is displayed in in-
verted form.
