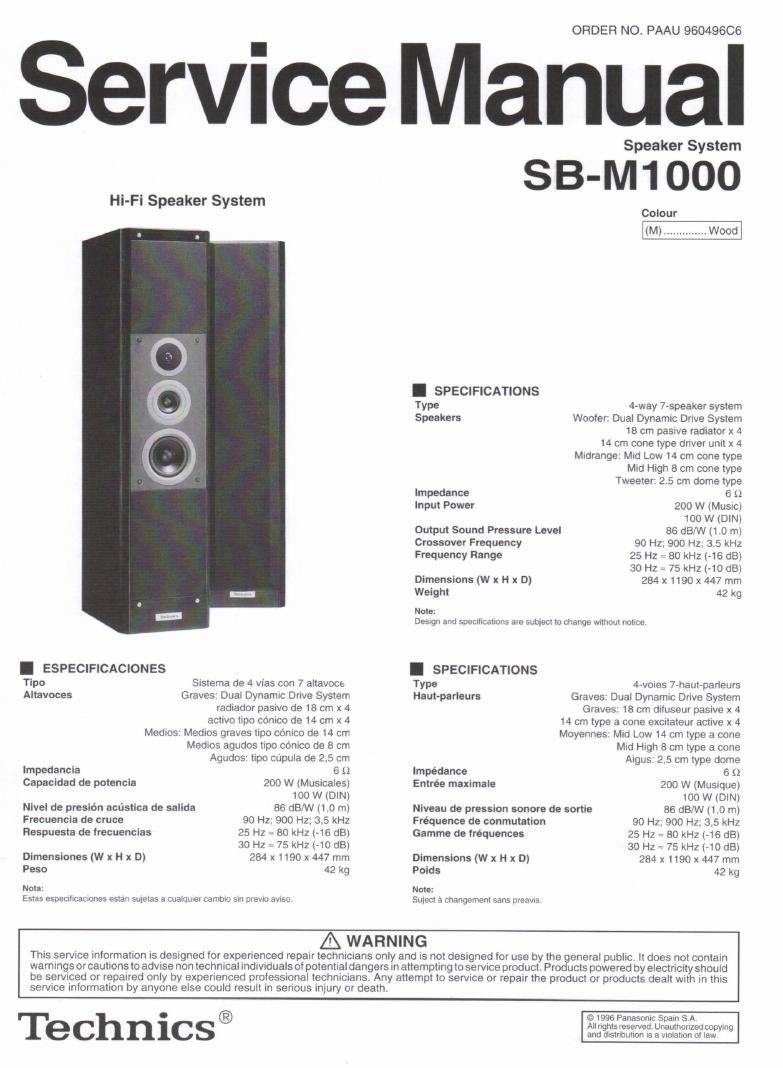

Page 1

ORDER NO. PAAU 96049606

Service Manual

Hi-Fi Speaker System

I ESPECIFICACIONES

Tipo Sistema de 4 vias con 7 aliavoce
Altavoces Graves Dual Dynamic Drive System
radiador pasrvo de 18 cm x 4
active tipo cdnico de 14 cm x 4
Medios' Medics graves tipo cdnico de 14 cm
Medias agudos tipo cdnico de 8 cm
Agudos: tipo cL'ipuIa de 2.5 cm
lmpedancia 6 $1
Capacidad de potencia 200 W (Musmales)
100 W (DIN)
86 dEl/W 11.0 m)
90 Hz: 900 Hz: 3.5 kHz
25 Hz a 80 kHz (716 dB)
30 Hz :. 75 kHz (-10 dB)
Dimensiones {W x H x D) 284 x 1190 x 447 mm
Peso 42 kg

Nivel de presién acustica de salida
Frecuencia de cruce
Respuesta de lrecuencias

Nata.
Estas especllicaoones esian suietas a :ualqwei cambio sin preViu aViso

Speaker System

SB-M1000

I SPECIFICATIONS
Type 4-way 7-speaker system
Speakers Wooler: Dual Dynamic Drive System
18 cm paswe radiator x 4
14 cm cone type driver unit x 4
Midrange: Mid Low 14 cm cone type
Mid High 8 cm cone type
Tweeter: 2.5 cm clorne type

Impedance 6 12
Input Power 200 W (MUSIC)
100 W (DIN)

Output Sound Pressure Level
Crossover Frequency
Frequency Range

86 dB/W (1.0 m)

90 Hz; 900 Hz: 3.5 KHz
25 Hz 4 80 kHz (-16 dB)
30 HZ : 75 kHz (-10 dB!
Dimensions (W x H x D) 284 x1190 x 447 mm
Weight 42 kg

Note:
Design and speciiicaiions are suuieci to change wiinuui notice

I SPECIFICATIONS
Type 4*V0185 7-naut-parleurs
Maut-parleurs Graves: Dual Dynamic Drive System
Graves. 18 cm diluseur pasive x 4
14 cm type a cone excitateui active x 4
Moyennes. Mid Low 14 cm type a cone
Mid High 8 cm type a cone
Aigus 2.5 cm type dome
Impedance 6 t1
Entree maximale 200 W (Mu5ique)
100 W (DIN)
86 dB/W (1 0 mi
90 H2 900 Hz 35 kHz
25 H7 2 80 kHz (,15 dB)
30 HZ : 75 kHz (40 dB)
Dimensions (W x H x Di 284 x1190 x 447 mm
Folds 42 kg

Niveau de pression sonore de sortie
Fréquence de conmutation
Gamme de fre'quences

Note:
Siiieci a cnangemenl saris pieavis

A WARNING

This serVice information is designed (or experienced repair technICIans only and is not de5igried for use by the general public It does not contain
warnings orcautions to adVise non technical indiVIduals 01 potential dangers in attempting to service product. Products powered by electricity should
be semiced or repaired only by experienced professional technicians Any attempt to service or repair the product or products dealt With in this
servme information by anyone else could result in serious injury or death.

Technics®

re) 1996 Panasonic Spam 5 A
All rights reserved Unauthorized CoDylllg
and distriuution ls a violation Di law

Page 2

SB-M1000

I DISASSEMBLY INSTRUCTIONS

Ref. No 1

Removal of the Speaker Net

Rel, No. 2

Removal of the Speaker Tweeter

Procededure 1

- Remove the Speaker Ne!

In the dlrecllon 0' arrow,

Procededure 1 a 2

- Hermve me

oflrompan.

- Remove he 2
Speaker Terminals.

Blue/Black
9

Speaker Tweeter
In ma direction

- Home the
Speaker Ornament

We

Screw (2| 4.2 x 25 mm

Ref. No. 3

Procededure 1 w 3

. Remve the

Speaker Omamenl.

We

Screw C1 4.2 x 25 mm

@
