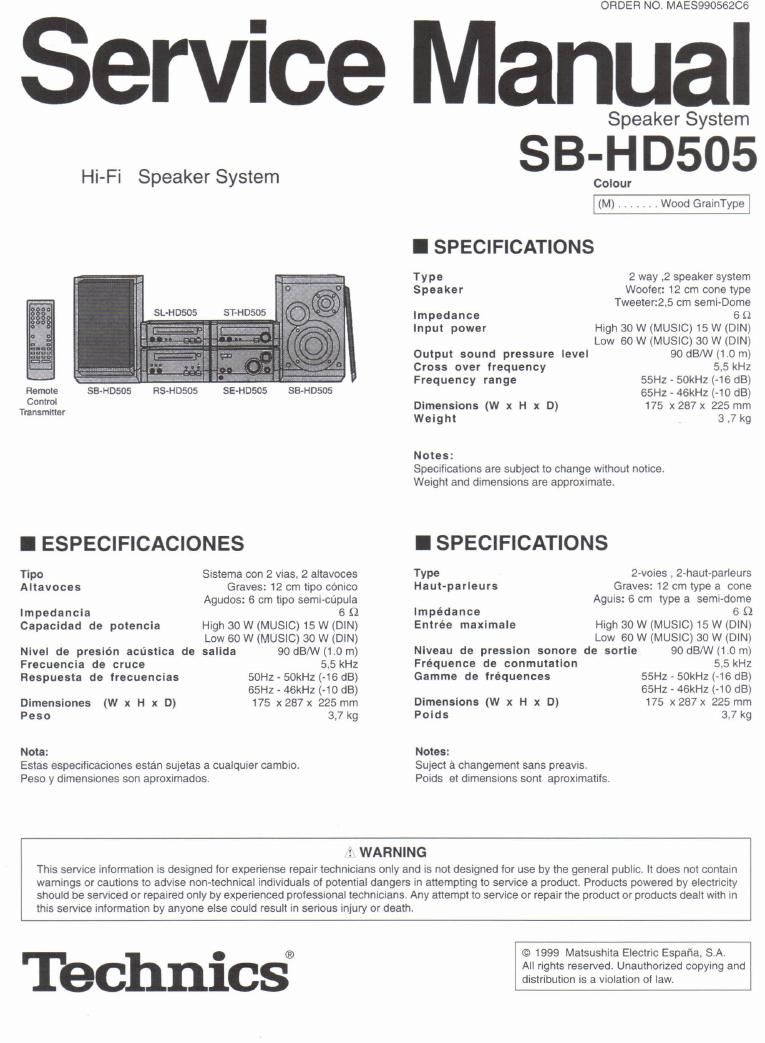

ORDER NO. MAE599056206
ervice Manual
Hi-Fi Speaker System
5L HD505 ST- H0505
Remote SB~H0505 RS-HDSOS SE-HDSOS SB-HDSOS
Control
Transmitter
I ESPECIFICACIONES
Tipo Sistema con 2 vias. 2 altavoces
Altavoces Graves: 12 cm tipo conico
Agudos: 6 cm tipo semi-cflpula
lmpedancia 6 Q
Capacidad de polencia High 30 W (MUSIC) 15 W (DIN)
Low 60 w (MUSIC) 30 w (DIN)
Nivel de presién acustica de salida 90 dB/W (1.0 rn)
Frecuencla de cruce 5.5 kHz
Hespuesta de frecuencias 50Hz - SOkHz (-16 dB)
65H: - 46kHz (-10 dB)
Dimensiones (W x H x D) 175 x 287 x 225 mm
Peso 3.7 kg
Note:
Estas especificaciones estan sujetas a cualquier cambio.
Peso y dimensiones son aproxrmados.
Speaker System
SB-H D505
Colour
(M) . Wood GraInType
I SPECIFICATIONS
Type 2 way ,2 speakersys1em
Speaker Woofer: 12 cm cone type
Tweeter:2.5 cm semI»Dome
Impedance 6 52
Input power High 30 W (MUSIC) 15 W (DIN)
Low 60 W (MUSIC) 30 W (DIN)
Output sound pressure level 90 dB/W (1.0 m)
Cross over frequency 5,5 kHz
Frequency range 55Hz - 50kHz (-16 dB)
65Hz - 46kHz (-10 dB)
Dimensions (W x H x D) 175 x 287 x 225 mm
Weight 3 7 kg
Notes:
Specifications are subject to change without notice.
Weight and dimensrons are approximate,
I SPECIFICATIONS
Yype 2~v0Ies . Zahaulaparleurs
Haut-parleurs Graves: 12 cm type a cone
Aguis: 6 cm type a semi-dome
Impedance 6 S)
Entrée maximale High 30 W (MUSIC) 15 W (DIN)
Low 60 w (MUSIC) 30 w (DIN)
Niveau de pression sonore de sortie 90 dB/W (1.0 m)
Fréquence de conmulation 55 kHz
Gamma de lréquences 55Hz - 50kHz (-16 dB)
65Hz - 46kHz (710 dB)
Dimensions (W x H x D) 175 x 287 x 225 mm
Paids 37 kg
Notes:
Suiect a changement sans preavis,
Poids et dimenSIons sont aproxtmatifs.
1 WARNING
This service Information IS designed for experiense repair technicians only and is not designed for use by the general public It does not contain
warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity
should be serviced or repaired only by experienced professional technicians, Any attempt to service or repairthe product or products dealt with in
this service information by anyone else could result in serious injury or death.
Tbchnics®
© 1999 Matsushita Electric Espafia, S.A.
All rights reserved, Unauthorized copying and
dislribution is a violation of law.
SB-HD505
I Replacement Parts List
Notes 1.
2.
Part numbers are indicated on most mechanicai parts Please use this part number for parts orders.
MAES indicates parts that are suplied by MAESV
Note 1. El cédigo esta indicado en la mayoria de las piezas. Por Iavor use este cédigo para sus pedrdosi
2. La indicacrén MAES sigmfica recamblos suministrados a través de MAES
Ref No. Pan No, Fan Name & Description Remarks Ref. No. Pan No Pan Name & Descriprion Remarks
SPEAKER (5i 4 RKTPHDsos BASS REFLEX ASS'Y [MAES]
SP1 EAST16KH01 A6 SPEAKEWTWEETEH) [MAES] 5 XTNP42+20FG SCREW TERMINAL ASS'Y [MAES]
SP2 EAST12PL14A6 SPEAKER(W00FER) [MAES] e 5Ngs4+1eFN scngw TWEETER [MAES]
CABINET PARTS 7 RMQOBSS TWEETER GASKET [MAES]
1 RYK08823~M CABINET ASS'Y (L) [MAES] a RMQoea4A WOOFER GASKET [MAES]
1 RYKOBBZC-M CABINET ASS'Y (R) [MAESJ 9 SNES4+208 SCREW WOOFER [MAES]
1V1 RKAoo72-K LEG [MAES] PACKING PARTS
1-2 REJ0133-1 TERMINAL ASS'Y [MAES] P1 RPG4226 CARTON BOX [MAES]
1-3 SHGBGQOM NET HOLDER [MAES] P2 RPN1183A PAD UP [MAES]
2 RYBP02058 NET FRAME [MAES] P2 RPN11835 PAD BOTTOM [MAES]
3 RGKP1114~S ORNAMENT WOOFER(L) (MAES] p3 SPHBG415 SHEET [MAES]
3 RGKP1114A-S ORNAMENT WOOFER(R) [MAES]
I Schematic Diagram
GRAY + c GRAY g [6 SP1
Tweeter
BLUE - C BLUE - 2.50m Semi-dome
R ED + 0 RED é SP2
Woofer
BLACK _ c BLACK - 120m Gone
I Cabinet Parts Location
Pnnted In Spain
A990507000JA
