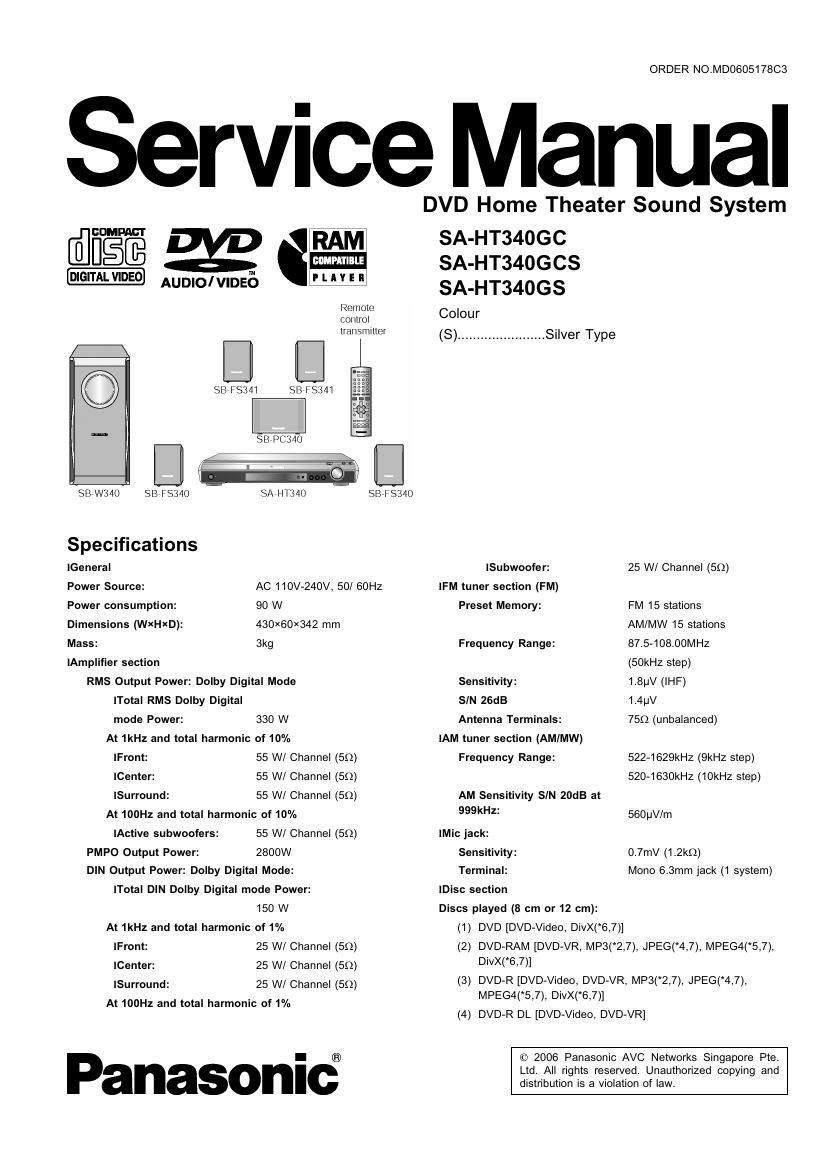

Technics SAHT 340 GC GS GCS Service Manual

Page 2

SA-HTCMDGC I SA-HTSADGCS l SA-HT3AUGS

(5) DVD-RW [DVD-Video, DVD-VR, MP3(2,7), JPEG(4,7),
MPEG4(5,7), DiVX(6,7)]

(5) +R/RW [Video]

(7) +R DL [Video]

(8) CD, CD»RIRW [CD-DA, Video co, svcom), MP3(2,7),
WMA(3,7), JPEG(4,7), MPEG4(5,7), DivX (*6,7), HighMAT
Level 2 (Audio and Image)]

1 Conforming to IE062107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

3 Windows Media Audio Ver.9.0 L3
lNot compatible with Multiple Bit Rate (MBR)

4 Exif Ver 2.1 JPEG Baseline files
lPicture resolution: between 160 x 120 and 6144 x 4096
pixels (Sub sampling is 4:0:0, 4:2:0, 4:222, 4:4:4). Extremely
long and narrow pictures may not be displayed.

5 MPEG4 data recorded with Panasonic SD multi cameras or
DVD Video recorders.
lConforming to SD VIDEO specifications (ASF standard)/
MPEG4 (Simple Profile) video system/G726 audio system.

6 Plays all versions of DiVX® Video (including DivX® 6) with
standard playback of DivX® media files. Certified to the DiVX
Home Theater Profile.
lGMC (Global Motion Compensation) is not supported.

7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture
and video contents and 400 groups.

Pick up:
Wavelength:
lCD: 785nm
lDVD: 662nm
Laser power:
lCD: CLASS 1M
lDVD: CLASS 1

Audio output (DISC):

Number of channels: 5.1 ch (FL, FR, C, SL, SR,

SW)
Audio performance:
Frequency response:
DVD (linear audio): 4 Hz-22 kHz (48 kHz sampling)

4 Hz-44 kHz (96 kHz sampling)

CD-Audio: 4 H220 kHz
SIN ratio:

CD-Audio: 105 dB
Dynamic range:

DVD (linear audio): 95 dB

CD-Audio: 95 dB
Total harmonic distortion:

CD-Audio: 0.005 %

lVideo section
Video system:

Signal system: PAL 625/50, PAL 525/60,

NTSC
Composite video output:
Output level: 1 Vp»p (75 9)
Terminal: Pin jack (1 system)

S-video output:

Y output level: 1 Vp-p (75 (2)

PAL; 0.3Vp-p (759)

NTSC; 0.286 Vp-p (75 Q)

S terminal (1 system)
Component video output: [NTSC: 430pl430i, PAL:576pI576i]
1.7 Vp»p (75 Q)

0.7 Vp-p (75 0)

0.7 Vp-p (75 9)

Pin jack (Y: green, PE: blue,
PR: red) (1 system)

C output level:

Terminal

Y output level:
PI3 output level:
PR output level:
Terminal:

Power consumption in standby mode:
approx 1W
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Solder:

This model uses lead free solder (PbF).
Mechanism:

This model uses DLZSU (Single tray) mechanism.
Power supply:

This model uses Switching Mode Power Supply (SMPS)
Module for power-up unit.

System SC-HT34OGC SC-HT34OGCS SC-HT34OGS
Main unit SA-HT34OGC SA-HT340605 SA-HT34OGS
Speaker system SBVHT34OE SBVHT340E SBVHT340E
Speaker system SB-HT340E
Front speakers 33.33403
Center speaker SB-PC340EVL
Surround speakers SB»FS341EH
Active subwoofer SB-W34OE

Refer to the original service manual for '1, '2, 3, 4.
