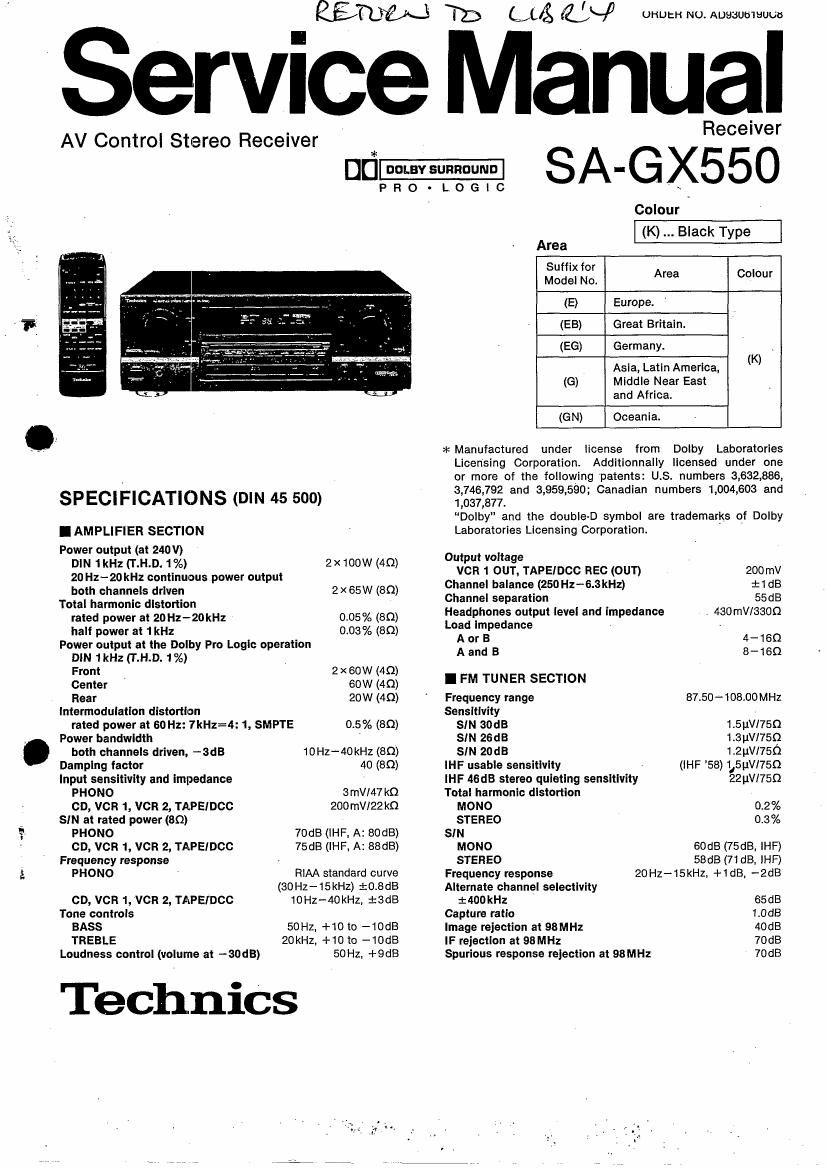

This is the 48 pages manual for Technics SAGX 550 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
VSA-GX550
ISCHEMATIC DIAGRAM (Pans list on page; 52~58-)
(This schematic diagram may be modified at any time with the development of new technology.)
Note 1:
- 8701- : Voltage adjustment switch in 220-240V
position.
0 $946 : Numeric (5) switch.
.5947 : Center level adjust (CENTER LEVEL -)
switch.
- $948 : Test signal ONIOFF (TEST) switch.
0 $949 : Numeric (4) switch.
I 8950 : Numeric (6) switch.
'3951 : Center level adjust (CENTER LEVEL +)
switch.
0 $952 : Numeric (7) switch.
05953 . : Rear level adjust (REAR LEVEL -) switch.
0 $954, 955 : Input select switches.
(8954: CD, 8955: TUNER]
0 $956 : Center mode select (CENTER MODE)
switch.
- $957 2 Numeric (9) switch.
- $960 : Rear level adjust (REAR LEVEL +) switch.
0 $961 : Numeric (8) switch.
- 5962 : Numeric (0) switch.
- $963 : Delay time (DELAY TIME) adjustment.
- 8964 : Input select (PHONO) switch. .
~ $965 : Loudness (LOUDNESS) ONIOFF switch.
I 3966 : Memory (MEMORY) switch.
0 $967 : Muting (MUTING) switch. -
I 8970 : Tape/DOC monitor (T APE/DCC -)
switch.
- $971 : Input select (VCR2) switch.
~ $972 : input select (VCRt) switch.
. $973 : Speaker select (B) switch.
. $974 : FM mode select (FMVMODE) switch.
- $975 : Band select (BAND) switch.
0 $976 : Direct tuning (DIRECT TUNING) switch.
- $978 : Power (POWER) switch.
0 $980 : Dolby pro logic 3 STEREO ONIOFF
(3 STEREO) switch. .
~ $981 : Speaker select (A) switch.
0 $982 : Dolby pro logic surround ONIOFF
(SURROUND) switch.
0 $983 : Numeric (3) switch.
- $984 : Numeric (2) switch.
. S985 :Numerlc (1) switch.
- $986 : Tuning mode (TUNING MODE) switch.
. Si'gnal line
uncut) -: FM 080 signal
nun} : AM (MWILW) OSC signal
: Rec out signal (Lch)
mama : Rear speaker drive signal (Lch)
- : Positive voltage lines
: Negative voltage lines
: FM signal
: AM (MWILW) signal
: AF signal (Lch)
: Center speaker drive signal
. Important safety notice
Components identified by A mark have special
characteristics Important. for safety. Furthermore,
special parts which have purposes of fire-retardant
(resistors), high-quality sound (capacitors), low-noise
(resistors), etc. are used as occation calls. When
replacing any of components, be sure to use only
manufacturers specified parts shown in the parts list.
a
oThe supply parts number is described alone in the
replacement parts.
Part No. Original Part No.
2891 RCDH027&E
Supply Part No.
RCDHGZ75
- All voltage values shown in circuitry are DC voltage in
FM signal (Stereo signal) reception mode.
*Figures in ( ) stand for DC-voltage in AM (MWILW)
signal reception mode.
*Fl'gures in E 1 stand for DC-voltage in LW signal
reception mode.
' Caution!
Id and LSI are sensitive to static electricity.
Secondary trouble can be prevented by taking care
during repair.
~Cover the parts boxes made of plastics with alminum
toil. .
- Ground the soldering iron.
0 Put a conductive mat on the work table.
-Do not touch the legs of IC or LSI with the fingers .
directly.
