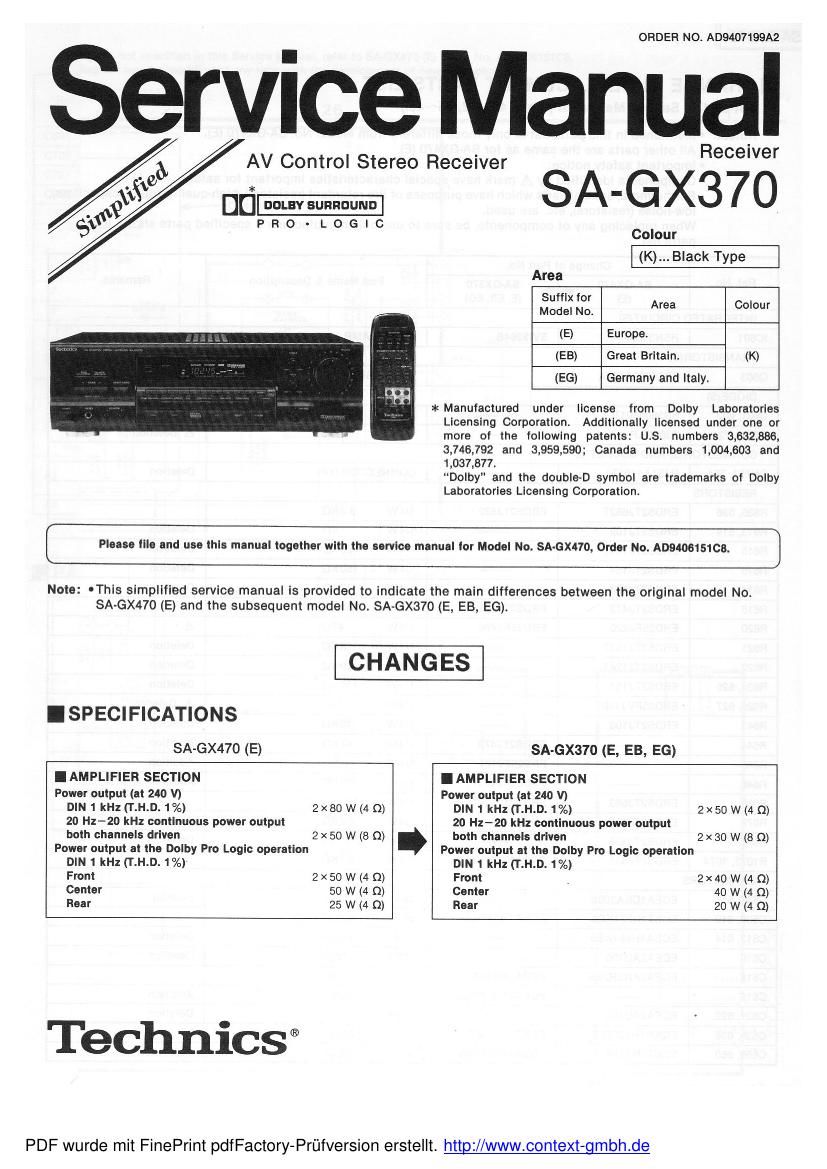

ORDER NO. AD9407199A2
Service Manual
uti-
PRO-LOGIC
AV Control Stereo Receiver
Receiver
S A- G X3 7 0
Colour
(K)... Black Type
Area
Suffix for
Model No. Area Colour
(E) Europe.
(EB) Great Britain. (K)
(56) Germany and Italy.
* Manufactured under license from Dolby Laboratories
Licensing Corporation. Additionally licensed under one or
more of the following patents: U.S. numbers 3,632,886.
3,746,792 and 3,959,590; Canada numbers 1,004,603 and
1,037,877.
Dolby" and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
[ Please tile and use this manual together with the service manual tor Model No. SA-GX470, Order No. A09406151CB. ]
Note: uThis simplified service manual is provided to indicate the main differences between the original model No.
SAaGX470 (E) and the subsequent model No. SA-GX370 (E, EB, EG).
CHANGES
SA-GX370 (E, EBI EG)
I SPECIFICATIONS
SA-GX470 (E)
I AMPLIFIER SECTION
Power output (at 240 V)
DIN 1 kHz (T.H.D.1%) 2x80W(4 Q)
20 Hz-20 kHz continuous power output
both channels driven 2 XSO W (8 0)
Power output at the Dolby Pro Logic operation
DIN 1 kHz (T.H.D.1%)
Front 2 X 50 W (4 0)
Center 50 W (4 0)
Rear 25 W (4 Q)
I AMPLIFIER SECTION
Power output (at 240 V)
DIN 1 kHz (T.H.D. 1%) 2X50W(4 Q)
20 Hz-Zo kHz continuous power output
both channels driven 2 x 30 W (8 0)
Power output at the Dolby Pro Logic operation
DIN 1 kHz (T.H.D. 1%)
Front _ 2 X 40 W (4 0)
Center 40 W (4 0)
Rear 20 W (4 Q)
Technics®
