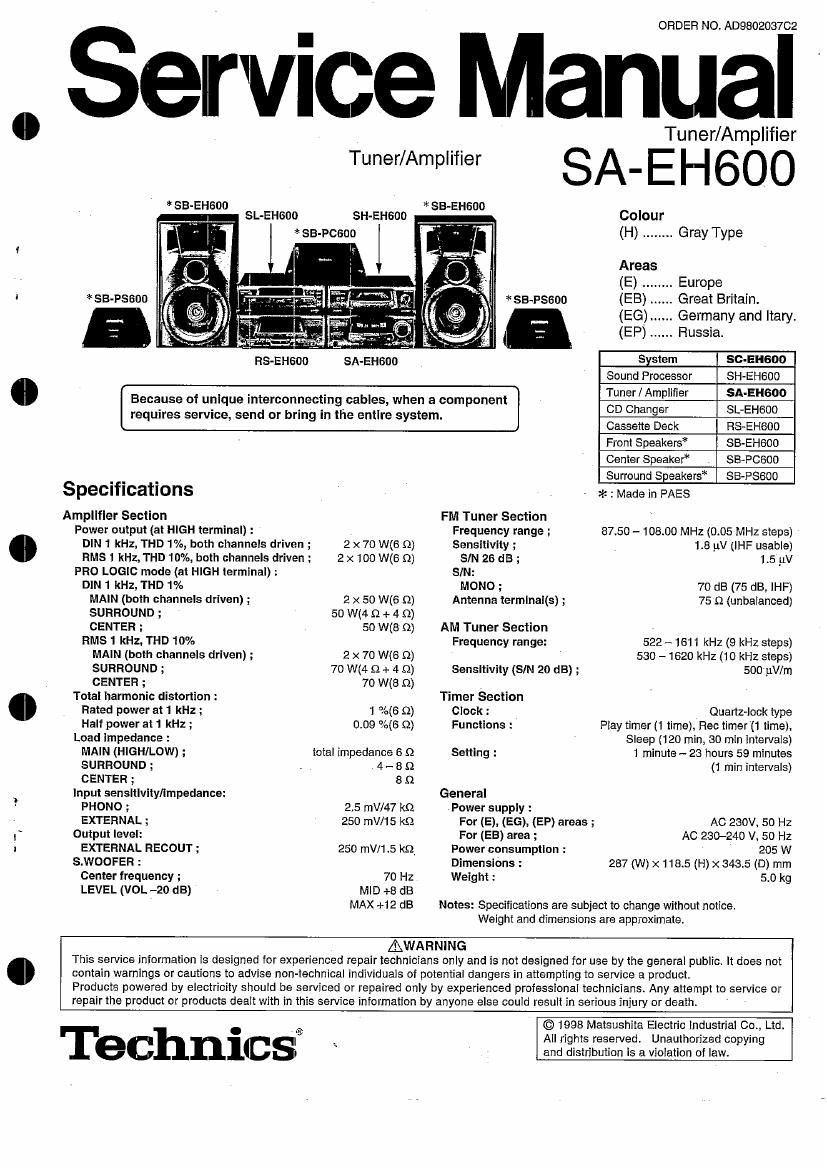

Page 1

ORDER NO. AD9802037CZ

0 Service Manual

*SB-EHSOO

SL-EHGOO

* SB-PSGOD

5:: V A
RS-EHGOD

* SB-PCEOD

Tuner/Amplifier

SH-EHGOD

SA-EHBOO

* SB-EHBOO

* SB-PSSOCI


Because of unique interconnecting cables, when a component
requires service, send or bring in the entire system.

Specifications

Tuner/Amplifier

SA-EHSOO

Colour
(H) ........ Gray Type

Areas
(E) ........ Europe
(EB) . Great Britain.

(EG) . Germany and ltary.
(EP) ...... Russia.

System SC-EHGOD
Sound Processor SH-EHGUO
Tuner / Amplifier SA-EHGOO
CD Changer SL~EH600
Cassette Deck RS~EH600
Front Speakers* SB-EHGOO
Center Speakefk 38436600
Surround Speakers* SB-PSSDO

>1: : Made in PAES

Amplifier Section FM Tuner Section
Power output (at HIGH terminal) : Frequency range ; 87.50 -- 108.00 MHz (0.05 MHZ steps)
, DIN 1 kHz, THD 1%, both channels driven ; 2 x 70 was 5)) Sensitivity ; 1.8 uV (IHF usable)
RMS 1 kHz, THD 10%, both channels driven : 2 X 100 W(6 Q) SIN 26 dB ; 1.5 ,uV
PRO LOGIC mode (at HIGH terminal) : SIN:
DIN 1 kHz, THD 1% MONO ; 70 dB (75 dB, IHF)
MAIN (both channels driven) ; 2 x 50 was (2) Antenna terminal(s) ; 75 £2 (unbalanced)
SURROUND ; 50 W(4 o + 4 o)
CENTER ; 50 We 0) AM Tuner Section
RMS 1 kHz, THD 10% Frequency range: 522 ~1611 kHz (9 kHz steps)
MAIN (both channels driven) ; 2 x 70 W(6 Q) 530 - 1620 kHz (10 kHz steps)
SURROUND ; 7O WM 52 + 4 £1) Sensitivity (SIN 20 dB) ; 5001.1V/m
CENTER ; 7o W(B c)
Total harmonic distortion : Timer Section
" Rated power at 1 kHz ; 1 %(6 11) Clock : Quartz-lock type
Half power at 1 kHz ; 0,09 23(6 (2) Functions : Play timer (1 time), Rec timer'(1 time),
Load Impedance : Sleep (120 min, 30 min intenlais)
MAIN (HIGH/LOW) ; total impedance 6 9 Setting : 1 minute- 23 hours 59 minutes
SURROUND ; 4 -- 8 Q (1 min intervals)
CENTER ; 8 £2
Input sensitivity/impedance: General
' PHONO ; 2.5 mV/47 k9 Power supply :
, EXTERNAL ; 250 mV/15 ko For (E), (E6), (EP) areas ; Ac 230v, 50 Hz
. Output level: For (EB) area ; AC 230-240 V, 50 Hz
I EXTERNAL RECOUT ; 250 mV/1.5 kg Power consumption : 205 W
S.WO0FEFI: Dimensions: 267 (W) x 118.5 (H) x348.5 (D) mm
Center frequency ; 70 Hz Weight : 5.0 kg
LEVEL (VOL -20 dB) MID +8 dB
MAX +12 dB Notes: Specifications are subject to change without notice.
Weight and dimensions are approximate.
AWARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain wamings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products deait with in this service information by anyone else could result in serious injury or death. '

Technicsi

© 1998 Matsushita Electric Industrial Co., Ltd.
All rights reserved. Unauthorized copying
and distribution is a violation of law.

Page 2

SA-EHBOO

I Contents
Page

Before Repair ..... 2 To Supply Power Source
Protection Circuitry 2 To Check Operation
Accessories ........ 2 About the Self- Diagnostic Mode .
Caution for AC Main Lead 3 Schematic Diagram" a.
Location of Controls 4 Printed Circuit Board Diagram
Installation 4 Wiring Connection Diagram.
Connections. - 7 Type Illustration of iC's, Transistors and Diodes
Enjoying FtDS roa c 9 Terminal Function of lCs
Setting the Time" 9 Block Diagram
Enjoying Sound with DOLBY PRO LOGIC Replacement Parts List .
Operation Checks and Cabinet Parts Loo

Main Component Replacement Procedures .......................... 13 - 16 Packaging ........

I Before Repair

(1)Tum off the power supply. Using a 10 Q, 10 W resistor, connect both ends oi power supply capacitors (C701, C702, C703 and C704) in order to -
discharge the voltage. V

(2') Before turning the power supply on, after completion of repair. slowly apply the primary voltage by using a power supply voltage controller to make
sure that the consumed current at 50 Hz in NO SIGNAL mode should be shown below with respect to supply voltage 230 V or 240 V.

Power supply voltage AC 230 V AC 240 V
Consumed current 50 Hz 140 ~ 400 mA 140 ~ 400 mA . .

I Protection Circuitry

The protection circuitry may have operated if either of the following conditions is noticed:
a No sound is heard when the power is switched ON.
>t< Sound stops during a performance.
The functions of this circuitry is to prevent circuitry damage if for example, the positive and negative speaker connection wires are shorted", or if
speaker systems with an impedance less than the indicated rated impedance of this unit are used. '
if this occurs, follow the procedure outlined below: .
1. Switch OFF the power.
2. Determine the cause of the problem and correct it.
3. Switch ON the power once again.

Note:
When the protection circuitry functions, the unit will not operate unless the power is first switched OFF and then ON again.

I Accessories ' .

I AC power supply cord , 0 Remote controlItransmitter
For (El. (E6). (EP) areas (R-JA0019-X) 1 pc. For (EB) area (RJA0053-1 X) ............... 1 pc. (RAK-CHZiBWH) ................................ ,1 pc.
I%;
(
0 Batteries 0 FM indoor antenna . 0 AM loop antenna
(UM-4, AAA", R03) .2 pcs. (RSA0007) 1 pc. (RSAOOZQ-J) 1pc. .
Note: These are available on sales route. .

0 Speaker cords I Antenna plug adaptor (SJPSDOS)

(REEOSBS) ,. For(EB) only (SJPQOOQ) 1 pc.
(HEanaa)
