Technics RSTR 155 Owners Manual

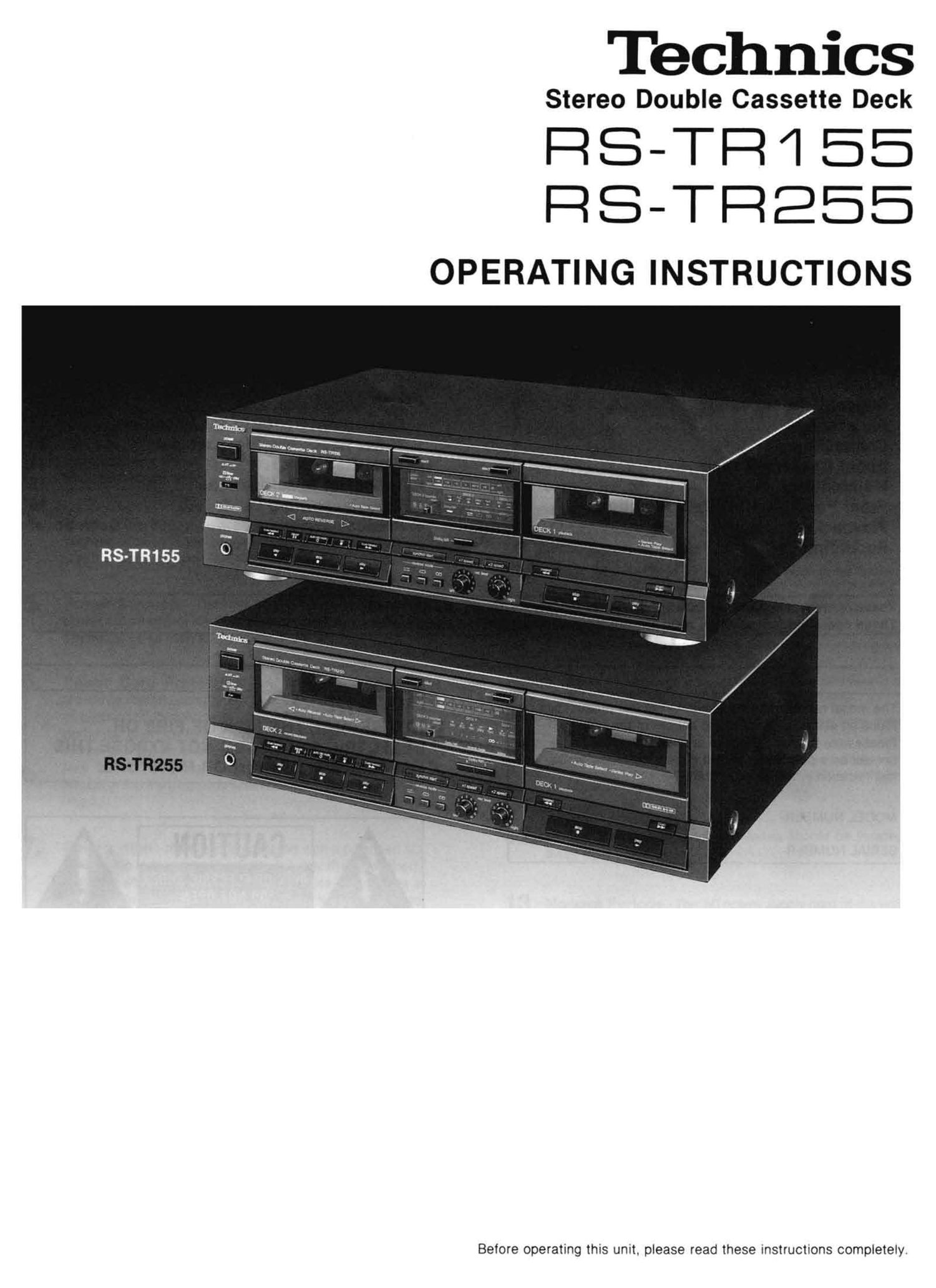

Page 1

Technics

Stereo Double Cassette Deck

PS-TFI I 55
RS-TRESE

OPERATING INSTRUCTIONS

RS-TR155

Before operating this unit. please read these instructions completely.

Page 2

Technics, The Science of Sound, welcomes the
challenge of new audio technologies and brings you
a multitude of world-renowned, high quality audio
components, all backed by our time-honored com-
mitment to innovation, value, and quality.

Technics captures the power of new ideas and turns
them into high performance components like digital
compact disc players that feature High Speed
Linear Motor Transports, high speed editing
cassette decks, professional and consumer turn-

tables, Computer Drive New Class A amplifiers, and
AN receivers that integrate both audio and video
equipment.

The Technics list of advanced audio components
continues. From Class AA amplifiers, honeycomb
disc speakers, and multi-disc CD changers to the
world's first touch-sensitive graphic equalizer,
Technics is a shining example of audio technology
at its best.

Contents

0 Suggestions for safety ................... 3
0 Accessories ............................. 4
0 Connections ............................. 4
0 About Cassette Tapes .................... 5
0 Maintenance ............................. 5
0 Front Panel Controls and Functions ...... 6
- Playback ................................. 8
0 Recording ............................... 11

0 Edit-Recording ........................... 12
0 Convenient Features for Recording ....... 13
- Timer Recording/Playback ................ 14
0 After Recording .......................... 14
0 Technical Specifications ................. 15
0 Troubleshooting Guide ................... 15
0 Product Service ................ Back cover

These operating instructions are applicable to models RS-TR155 and RS-TR255.
These operating instructions, however, fundamentally explain the operation of model Rs-TR155.

The model number and serial number of this product can be
found on either the back or the bottom of the unit.

Please note them in the space provided below and retain this
booklet as a permanent record of your purchase to aid
identification in the event of theft.

MODEL NUMBER

...................

SERIAL NUMBER

...................

CAUTION

OThis equipment has been tested and found to comply with
the limits for a Class B computing device in accordance with
the specifications set forth in Subpart J of Part 15 of the FCC
Rules. If this equipment does cause interference to radio or
television reception which can be determined by turning the
equipment on and off. use the equipment in another location
and/or utilize an electrical outlet different from that used by
the receiver.

oThis digital apparatus does not exceed the Class B limits for
radio noise emissions from digital apparatus set out in the
Radio Interference Regulations of the Canadian Department
of Communications.

OTO PREVENT ELECTRIC SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

WARNING:
TO REDUCE THE RISK OF FIRE on

ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

00 NOT CPEN

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK. DO NOT
REMOVE SCREWS.

NO USER-SERVICEABLE

PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main-
tenance (servicing) instructions in the literature
accompanyingthe appliance.
