This is the 49 pages manual for Technics RSEH 760 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Because of unique interconnecting cables, when a component
requires service, send or bring in the entire system.
Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
"Dolby" and the double-D symbol UK] are trade marks of Dolby

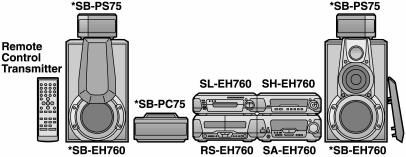

System SC-EH760
Sound Processor SH-EH760
Tuner/Amplifier SA-EH760
CD Changer SL-EH760
Cassette Deck Rs-EH760
Front Speakers* SB-EH760
Center Speaker* SB-PC75
Laboratories.
Surround Speakers* SB-PS75
Specifications
Deck system:
Track system:
Recording system:
Bias frequency;
Erasing system:
Heads:
Deck 1
(Playback head);
Deck 2
(Recording/Playback head);
(Erasing head);
Motors:
Deck 1, 2 Capstan drive;
Tape speed:
Wow and flutter:
Fast forward and rewind times:
Stereo cassette deck
4 track, 2 channel
AC bias
100 kHz
AC erase
Permalloy head
Permalloy head
Double gap ferrite head
DC sen/o motor
4.8 cm/sec.
0.16 % (WRMS)
Approx. 110 seconds with
0-60 cassette tape
* : Made in Spain.
Frequency response (Dolby NR off):
TYPE I (NORMAL); 20 HZ - 16 kHz (DIN)
TYPE 11 (HIGH); 20 Hz 7 16 kHz (DIN)
TVPE IV (METAL); 20 Hz - 16 kHz (DIN)
SIN (Signal level = max recording level, TVPE II type tape):
NR off; 56 dB (A weighted)
Dolby B NFl on; 66 dB (A weighted)
Input sensitivity and impedance:
REC (IN); 150 mV/ 23 m
Output voltage and impedance:
PLAY (OUT); 280 mV/ 360 D
General
Dimensions (W>
Mass: 2.1 kg
Notes: Specifications are subject to change without notice.
Mass and dimensions are approximate.
