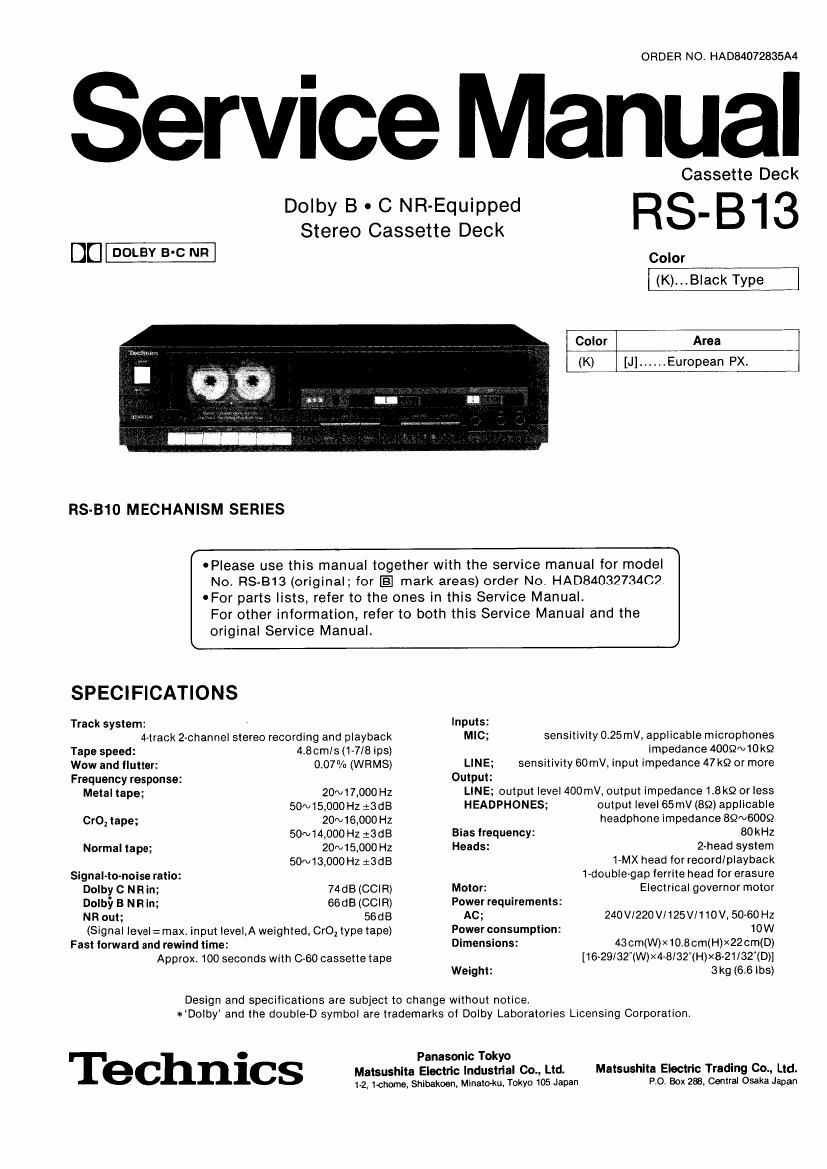

ORDER NO. HADS4072835A4
Service Manual
Cassette Deck
Dolby B . C NR-Equipped
Stereo Cassette Deck RS- B 1 3
DU- 0......
(K).»..Black Typfij
RS-B10 MECHANISM SERIES
Color Area
(K) [J] ...... European PX.
OPIease use this manual together with the service manual for model
No. RS-Bt3 (original; for mark areas) order No. HAD8403273402.
-For parts lists, refer to the ones in this Service Manual.
For other information, refer to both this Service Manual and the
original Service Manual.
SPECIFICATIONS
Track system: inputs:
4-track 2-channel stereo recording and playback MIC; sensitivity 0.25mV, applicable microphones
Tape speed: 4.80m/s(1»7l8ips) impedance 4009~10k§2
Wow and llutter: 0.07% (WRMS) LINE; sensitivity GOmV, input impedance 47 kg? or more
Frequency response: Output:
Metaltape; 20~17,000 Hz LINE; output level 400mV,output impedance 1.8kQ orless
50~15,000Hz :SdB HEADPHONES: output level 65mV (8S2)applicable
Croz tape; 20~16,000 Hz headphone impedance BQN6OOQ
50~14,000Hz :SdB Bias lrequency: 80kHz
Normal tape; 20~15.000 Hz Heads: 2-head system
50~13,000Hz :3dB 1-MX head for record/playback
Signal-to-noise ratio: 1-double-gap ferrite head for erasure
Dolb C NR in; 74dB (CClFl) Motor: Electrical governor motor
Dolby B N R in; 66:18 (CCIR) Power requirements:
NR out; 56dB AC; 240V/220V/125V/110V,50<60Hz
(Signal level: max. input level,A weighted. CrO2 type tape)
Power consumption:
10W
Fast forward and rewind time: Dimensions: 43cm(W)><1D.8cm(H)X22cm(D)
Approx. 100 seconds with 0-60 cassette tape [16-29l32(W)XA-8/32(H)x8-21/32(D)]
Weight: 3 kg (66 lbs)
Design and specifications are subject to change without notice.
*Dolby' and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
Technics
Panasonic Tokyo
Matsushita Electric Industrial Co., Ltd.
1-2, 1-chome, Shibakoen, Minatcrku. Tokyo 106 Japan
Matsushlta Electric Trading Co., Ltd.
Po. Box 288, Central Osaka Japan
