Teac CT M20 RC Service Manual

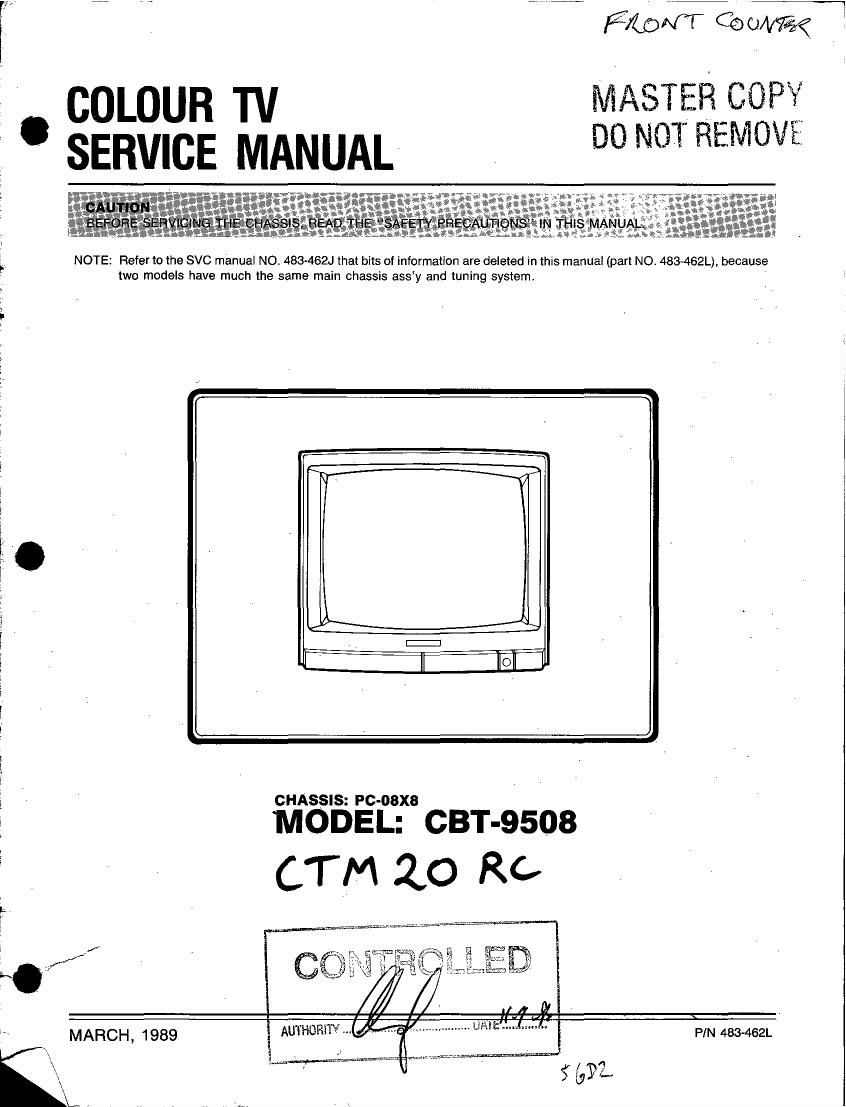

Page 1

fl

7 [fawn/Tic?) ext/7%

COLOUR TV MASTWQPE
i . SERVICE MANUAL DC) N01 RkMOVa

Ems-staggers

.. um; - _ fi'fiamfl;§"§§§, " 1 2
at :$: «:fiwfifi» _ Myfiiywx we we: __ . _ '
at a fi .QG?! an "3 a. :3 , A 33*_
31% wwgfififigmwitawwfifi WWSWANUAL» We...

. 1 , . \ L >&
-3» .. Janna: .1; av? K. S» rxéxi 3..» ti-..a»§-.aa-��2£§m

NOTE: Refer to the SVC manual NO. 483-462J that bits of information are deleted in this manual (part NO. 483-462L), because
two models have much the same main chassis assy and tuning system.

L CHASSIS: Pc-osxa

; MODEL: CBT-9508
cm 10 Re

P/ N 488-462L

MARCH, 1989

\I " " ' «gm.

Page 2

CONTENTS
Contents and Specifications ............. , ....................................................................... 2
Safety Precautions ............. _. ..................................................................................... 3
Servicing Precautions ..................................................................................
Controls Location ...................

Wiring Diagram 7
Component Location Guide . ............................. 8
Printed Circuit Board ............................................................................... 9-10
Exploded View ............................................................................ L ........................ 11-12
Replacement Parts List ....................................................................................... 13-17
Schematic Diagram .................................................................................................. 18
SPECIFICATIONS
Power Source ................... . ........................ ........................... AC 180 V-270 V, 50 Hz
V Power Consumption ............................................................................................. 80 W
Receiving TV System ........................................................................... CCIR Standard
Colour Receiving System ................................................................................ PAL-BIG
Receiving Channels ........ VHF Low: 2-4 CH., VHF High: 5-12 CH, UHF:21-69 CH
Intermediate Frequency
Picture .................................................................................................... 38.9 MHz
Sound .................................................................................................... 33.4 MHz
Colour ....................................................................... ~ ........................... 3 4.47 MHz
Tuning .......................................................... ................................. Voltage Synthesizer
Audio Output ............ .. 3W

Antenna input Impedance . .. 75 ohm IEC Type
(300 ohm using balun supplied)

Picture Tube .. 510MHBZZ-TC03

Speaker ....................................................................... 75 x 40 mm
Dimension .................................................................. 486(W) x 440(H) x 477(0) mm
Weight. ............................................................................................................. 23.1 Kg
a _ = r3 3
.l r
_ 2 _
