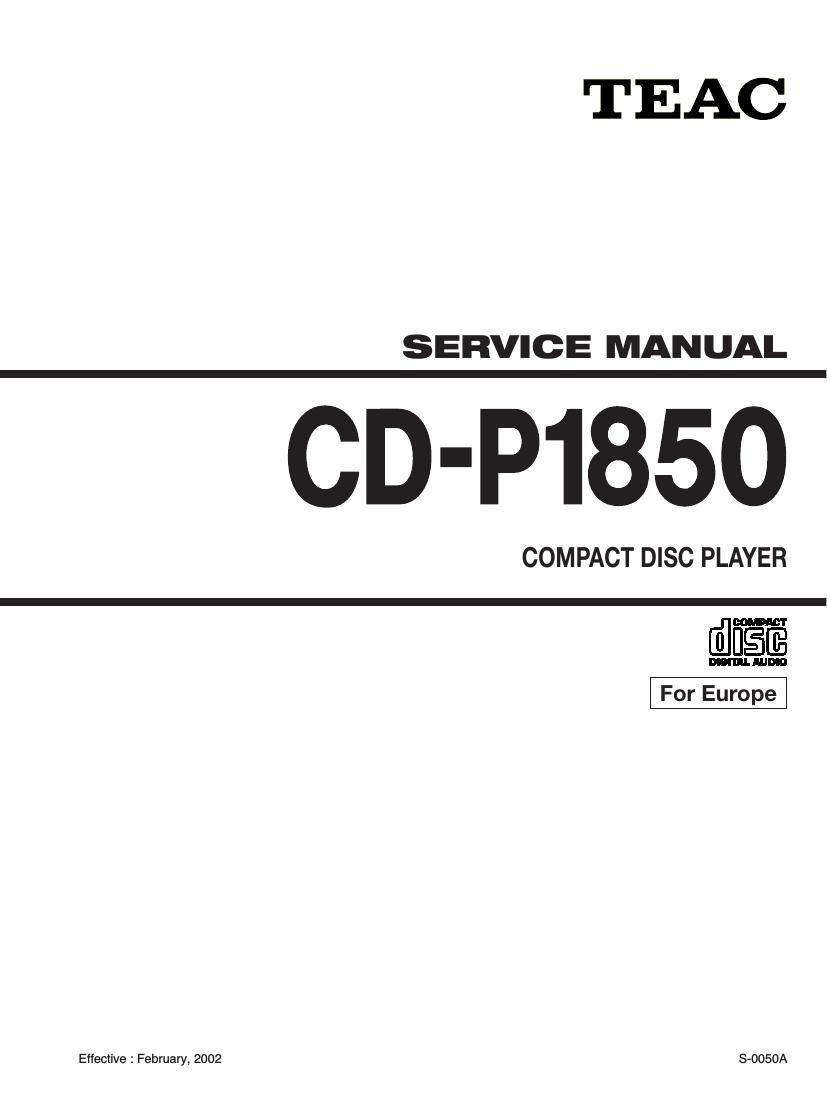

This is the 16 pages manual for Teac CDP 1850 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
CONTENTS
1 SPECIFICATIONS .................................... 2
2 EXPLDDED VIEWS AND PARTS LIST . ~
3 PC BOARDS AND PARTS LIST
4 INCLUDED ACCESSORIES .............................. 1
5 BLOCK DIAGRAM ...................................... 12
NOTES
0 PC boards shown are viewed from parts side.
oThe parts with no reference number or no parts number in the
exploded views are not supplied.
0 As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
0 A Parts marked with this sign are salety critical components. They
must be replaced with identical components . refer to the
appropriate parts list and ensure exact replacement.
0 Parts 01 [ ] mark can be used only with the version designated.
[E] :EUROPE [UK] :U. K.
1 SPECIFICATIONS
CD PLAYER
Pickup:
3-beam, semiconductor laser
D/A Converter:
1 bit DAC
Digital filter:
8-times oversampling
Frequency Response:
20 Hz ~ 20 kHz :1.5dB
Total Harmonic Distortion:
< 0.02 % (1 kHz)
Signal-tn-Noise Ratio (S/N):
>85 dB (1 kHz)
Channel Separation:
>80 dB (1 kHz)
Output:
Analog; 2.0 Vrms (RCA)
Digital; TOS OPTICAL
Wow and Flutter:
Below measurable limit
GENERAL
Power Requirements:
230 VAC, 50Hz (UK/Europe Model)
240 VAC, 50Hz (Australia Model)
Power Consumption:
12 Watts (AC)
Dimensions (W x H x D):
435 x 104 x 290mm
(17-1/8" x 4-1/8" x 11-7/16")
Net Weight:
3.6 kg
Standard Accessories:
Wireless Remote Control Unit (RC-682)
RCA pin-plug cord
Battery (SUM-3, "AA", RC type) x 2
- Design and specifications are subject to change without notice.
