Teac CDP 1250 Service Manual

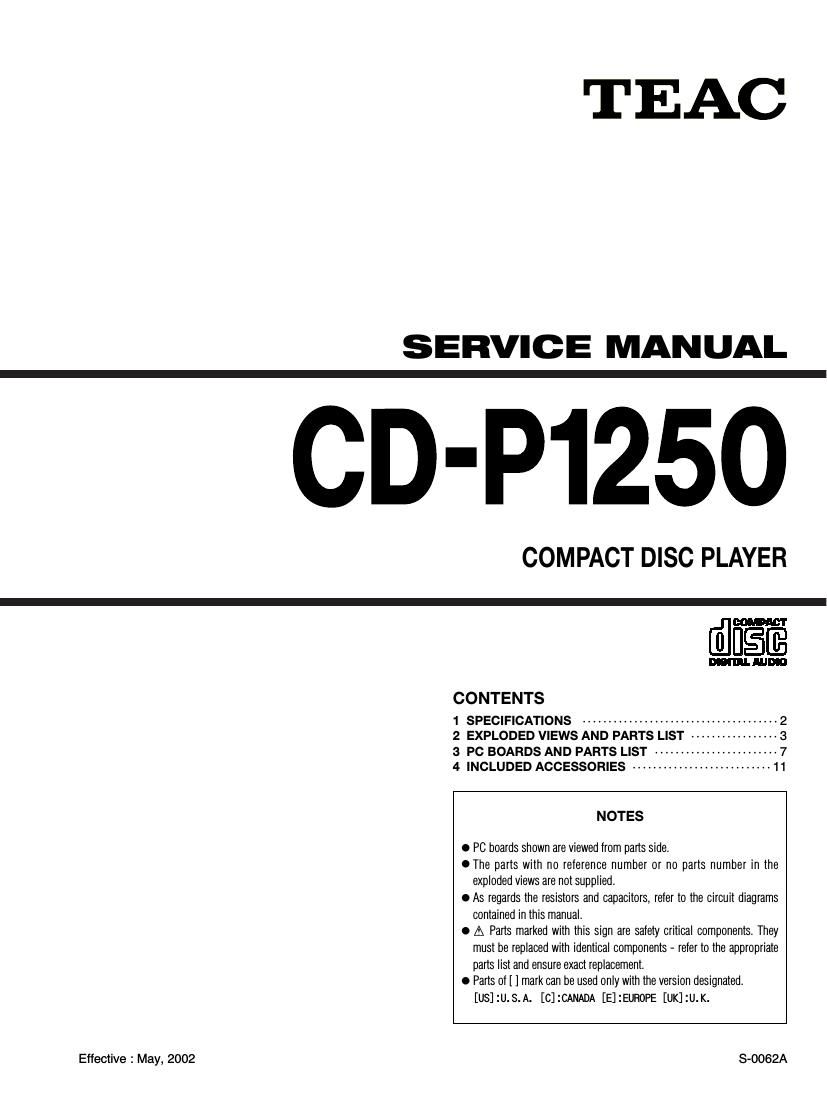

Page 1

TEAC

SERVICE MANUAL

CD-P125O

COMPACT DISC PLAYER

@5173:

CONTENTS

1 SPECIFICATIONS ..................
2 EXPLODED VIEWS AND PARTS LIST
3 PC BOARDS AND PARTS LIST ------
4 INCLUDED ACCESSORIES ,.

-\le\)

NOTES

0 PC boards shown are viewed from parts side.

I The parts with no relerence number or no parts number in the
exploded views are not supplied.

0 As regards the resistors and capacitors, reler to the circuit diagrams
contained in this manual.

0 A Parts marked with this sign are safety critical components. They
must be replaced with identical components . refer to the appropriate
parts list and ensure exact replacement.

0 Parts oi [ ] mark can be used only with the version designated.

[US] :U. S. A. [C] :CANADA [E] :EUROPE [UK] :U. K.

Effective : May, 2002 8-0062A

Page 2

1 SPECIFICATIONS

CD PLAYER
Pickup:
3-beam. semiconductor laser
D/A Converter:
1 bit DAC
Digital filter:
8»times oversampling
Frequency Response:
20 Hz ~ 20 kHz :1.5dB
Total Harmonic Distortion:
< 0.09 % (1 kHz)
Signal-to-Noise Ratio (SIN):
>85 dB (1 kHz)
Channel Separation:
>80 dB (1 kHz)
Output:
Analog; 2.0 Vrms (RCA)
Wow and Flutter:
Below measurable limit

GENERAL
Power Requirements:
120 V AC. 60Hz (USA/Canada Model)
230 V AC, 50Hz (Europe/UK. Model)
Power Consumption:
12 Watts (AC)
Dimensions (W x H x D):
435 x 104 x 295mm
Net Weight:
3.6 kg
Standard Accessories:
Wireless Remote Control Unit (RC-853)
RCA pin-plug cord
Battery (SUM-3. "AA", R6" type) x 2 (Europe/UK. Model)

0 Design and specifications are subject to change without notice.

SAFETY INFORMATION

This product has been designed and manufactured according to FDA
regulations "title 21, CFR, chapter 1, subchapter J, based on the Radiation
Control for Health and Safety Act of 1968, and is classified as a class 1
laser product. There is no hazardous invisible laser radiation during
operation because invisible laser radiation emitted inside of this product
is completely confined in the protective housings.

The label required in this regulation is shown Q7.

OCAUTION

USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.

Optical pickup:

TYPE : SFP101NXR
MANUFACTURER : Sanyo Electric Co. Ltd.
LASER OUTPUT : Continuous Wave max. 5mW

WAVE LENGTH : 765-815nm

G) For U.S.A.

CERTIFICATION
THIS PRODUCT COMPLIES wrm DHHS
RULES 21 CFR SUBCHAPTER J APPLI-

CABLE AT DATE or MANUFACTURE
rm coRPoRmoN

3777: taxman Mush-mow mm mm
mwmnmm

;

was in mm
