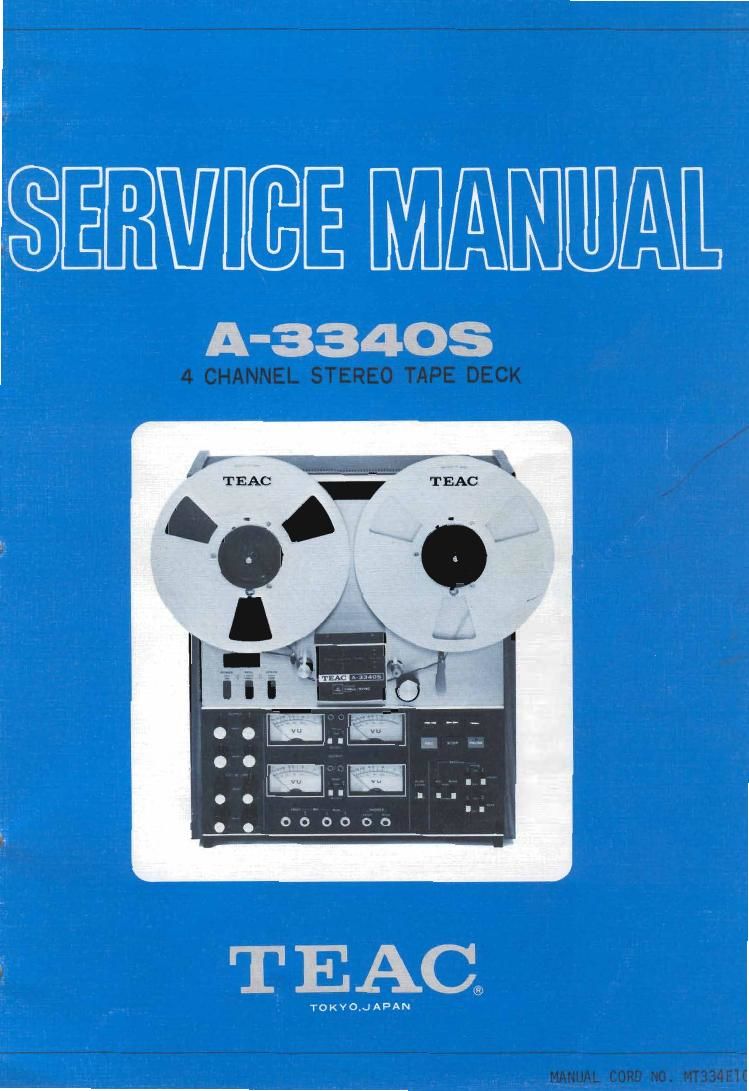

Teac A 3340 S Service Manual

Page 2

FEATURE COMPARISON CHART, A-SS4OHA-334OS

Lever switch All ushbuttons
1. Trans on: t l P
P CO" m 5 and buttons incl. PAUSE
. RC-lZO Remote
2. R t Ti . A
emo 2/ mar adapt NM avall RC-320 Timer adapt.
3. Tape Selector Single Separate BIAS and EQ
Single with
4. PHONES jacks FIR/MIX sw. 2 separate, F and R
5. Output level 0.3V (-8 dB) 0.775V (0 dB)
6. TAPE SPEED Sw Rotating Pushbutton
7. POWER Sw location Ampl. sect. Trans. section
a ,
,
AC '

Other minor design changes were also incorporated; for specific
differences in parts and circuitry please consult the Parts List

and Schanatic Diagrams.

Page 12

REMOVAL OF TENS/0N ARMS LEFT AND RIGHT

See illustration for complete disassembly instructions.

CAUTION
Do not over-tighten screws
holding right tension arm.
Insulating spacer and
micro-switch are easily
broken by excess pressure.

IMPORTANT
After reassembly check
clearance to ascertain
that arm moves freely
and is not binding.

Fig. 6-7 Tension Arms Removal

HEAD REPLA CEMENT

To replace a single head, a nut driver
is required. Remove the 2 nuts on the
defective head through the access hole
provided, this releases the head from
the mounting plate. Rewire the new
heads as shown in Fig. 6-8
Replace the nuts securing the new head
to the plate, perform head alignment
1

Spacer

|-_h|1-I41:./(IPlayback
\

/ Head only
m

w» ShieZdU-l}

[L

before operation.

Fig. 6-8 Head Replacement

_10A
