Tascam DV D6500 Owners Manual

This is the 68 pages manual for Tascam DV D6500 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 68
left right

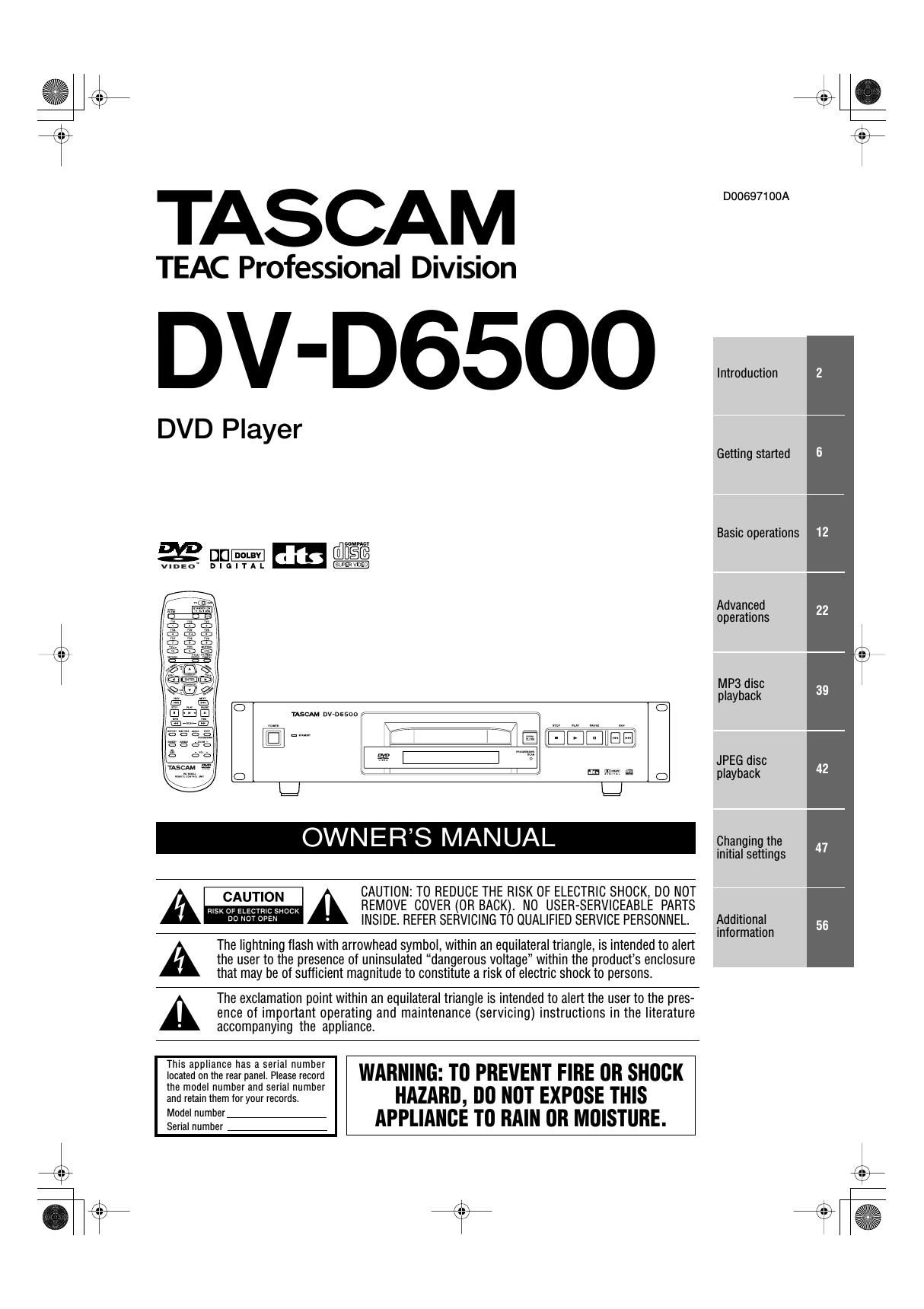

Tascam DV D6500 Owners Manual

Extracted text from Tascam DV D6500 Owners Manual (Ocr-read)


Page 1

Important Safety Precautions IMPORTANT (for U.K. Customers) DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not provided with a mains plug, or one has to be fitted , then follow the instructions given below: IMPORTANT: DO NOT make any connection to the larger terminal which is marked by the letter E or by the safety earth symbol ç or coloured GREEN or GREEN-and-YELLOW. The wires in this mains lead are coloured in accordance with the following code: BLUE : NEUTRAL BROWN : LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. When replacing the fuse only a correctly rated approved type should be used and be sure to re-fit the fuse cover. IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN. For the consumers in Europe WARNING This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Pour les utilisateurs en Europe AVERTISSEMENT Il sagit dun produit de Classe A. Dans un environnement domestiq\ ue, cet appareil peut provoquer des interférences radio, dans ce cas lutilisateur peut être amené à prendre des mesures appropri\ ées. Für Kunden in Europa Warnung Dies is eine Einrichtung, welche die Funk-Entstörung nach Klasse A besitzt. Diese Einrichtung kann im Wohnbereich Funkstörungen versursachen ; in diesem Fall kann vom Betrieber verlang werden, angemessene Maßnahmen durchzuführen und dafür aufzukommen. For Canada AC POWER CORD CONNECTION CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. CORDE DE CONNEXION CA ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE COR- RESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND. IMPORTANT FOR LASER PRODUCTS IMPORTANT POUR LES PRODUITS LASER 1. CLASS 1 LASER PRODUCT 2. DANGER: Visible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. 3. CAUTION: Do not open the top cover. There are no user service-able parts inside the Unit; leave all servicing to qualified service personnel. 1. PRODUIT LASER CLASSE 1 2. ATTENTION: Radiation laser visible quand l'appareil est ouvert ou que le verrouillage est en panne ou désactivé. Eviter une exposition directe au rayon. 3. ATTENTION: Ne pas ouvrir le couvercle du dessus. Il n'y a aucune pièce utilisable à l'intérieur. Laisser à un personne\ l qualifié le soin de réparer votre appareil. Caution -- STANDBY/ON switch! Disconnect the mains plug to shut the power off completely. The STANDBY/ON switch in any position does not disconnect the mains line. The power can be remote controlled. Attention -- Commutateur STANDBY/ON ! Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé. The equipment draws nominal non-operating power from the AC outlet with its POWER switch in the off position. For Canada/pour le Canada THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED DIGITAL APPARATUS, ICES-003 OF THE DEPARTMEN OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR: APPAREILS NUMERIQUES, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS. For U.S.A TO THE USER This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residental area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CAUTION Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance could void the users authority to operate this equipment.

Page 2

CAUTION: - Read all of these Instructions. - Save these Instructions for later use. - Follow all Warnings and Instructions marked on the audio equipment. 1) Read Instructions - All the safety and operating instructions should be read before the product is operated. 2) Retain Instructions - The safety and operating instructions should be retained for future reference. 3) Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. 4) Follow Instructions - All operating and use instructions should be followed. 5) Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cle\ an- ing. 6) Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards. 7) Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a \ wet basement; or near a swimming pool; and the like. 8) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury \ to a child or adult, and serious damage to the product. Use only with a cart,\ stand, tripod, bracket, or table recommended by the manufacturer, or sol\ d with the product. Any mounting of the product should follow the manufac-\ turers instructions, and should use a mounting accessory recommended\ by the manufacturer. 9) A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and ca\ rt combination to overturn. 10) Ventilation - Slots and openings in the cabinet are provided for ven- tilation and to ensure reliable operation of the product and to protect\ it from overheating, and these openings must not be blocked or covered. The\ openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a bu\ ilt-in installation such as a bookcase or rack unless proper ventilation is pro\ vided or the manufacturers instructions have been adhered to. 11) Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure\ of the type of power supply to your home, consult your product dealer or lo\ cal power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. 12) Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wide\ r than the other). This plug will fit into the power outlet only one way.\ This is a safety feature. If you are unable to insert the plug fully into the\ outlet, try reversing the plug. If the plug should still fail to fit, contact yo\ ur electri- cian to replace your obsolete outlet. Do not defeat the safety purpose o\ f the polarized plug. 13) Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon\ or against them, paying particular attention to cords at plugs, convenience\ receptacles, and the point where they exit from the product. 14) Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system\ is grounded so as to provide some protection against voltage surges and bui\ lt- up static charges. Article 810 of the National Electrical Code, ANSI/NFP\ A 70, provides information with regard to proper grounding of the mast and\ supporting structure, grounding of the lead-in wire to an antenna discha\ rge unit, size of grounding conductors, location of antenna-discharge unit, \ con- nection to grounding electrodes, and requirements for the grounding elec\ - trode. "Note to CATV system installer: This reminder is provided to call the CATV system installers attenti\ on to Section 820-40 of the NEC which provides guidelines for proper grounding\ and, in particular, specifies that the cable ground shall be connected t\ o the grounding system of the building, as close to the point of cable entry a\ s practical. 15) Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time\ , unplug it from the wall outlet and disconnect the antenna or cable syste\ m. This will prevent damage to the product due to lightning and power-line surges. 16) Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power ci\ rcuits, or where it can fall into such power lines or circuits. When installing \ an outside antenna system, extreme care should be taken to keep from touch-\ ing such power lines or circuits as contact with them might be fatal. 17) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in risk of fire or e\ lectric shock. 18) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points\ or short-out parts that could result in a fire or electric shock. Never \ spill liquid of any kind on the product. 19) Servicing - Do not attempt to service this product yourself as open- ing or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 20) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the foll\ owing conditions: a) when the power-supply cord or plug is damaged. b) if liquid has been spilled, or objects have fallen into the product. c) if the product has been exposed to rain or water. d) if the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operati\ ng instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician t\ o restore the product to its normal operation. e) if the product has been dropped or damaged in any way. f ) when the product exhibits a distinct change in performance - this indicates a need for service. 21) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 22) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determin\ e that the product is in proper operating condition. 23) Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer. 24) Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including ampl\ ifiers) that produce heat. ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H) NEC - NATIONAL ELECTRICAL CODE ELECTRIC SERVICE EQUIPMENT Example of Antenna Grounding as per National Electrical Code, ANSI/NFPA 70 GROUND CLAMP IMPORTANT SAFETY INSTRUCTIONS
