tascam dsm 7 1 brochure

Extracted text from tascam dsm 7 1 brochure (Ocr-read)

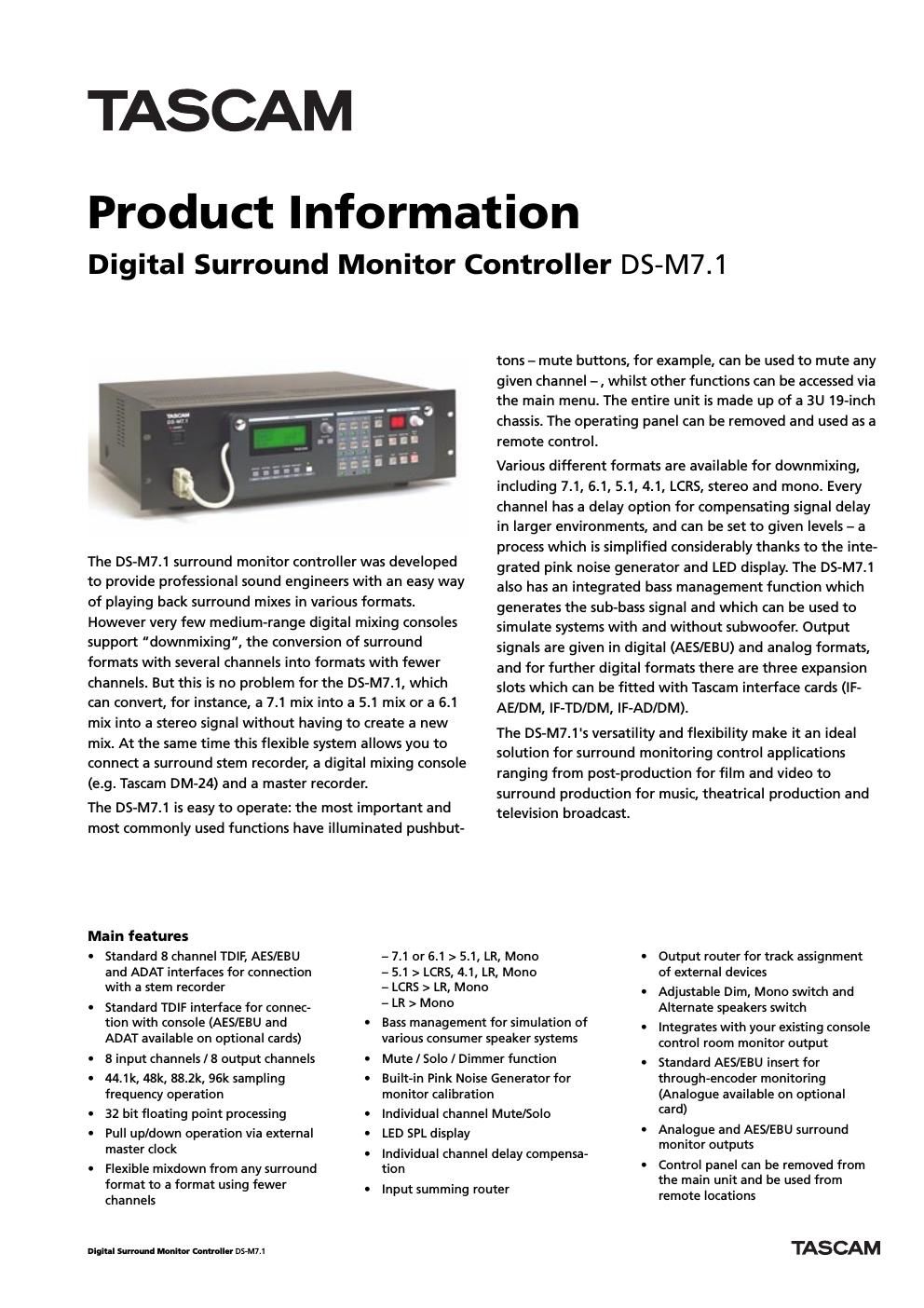

Page 1

       Specifications Digital Master Recorder input/output terminals  8 input, 8 output channels AES/EBU D-sub 25pin female, AES-1992 format TDIF D-sub 25pin female, TDIF-1 format ADAT TOS-link optical x2 (IN/OUT), ADAT optical format Digital Console input/output terminals No. of channels 8 input, 8 output channels TDIF D-sub 25pin female, TDIF-1 format SLOT1 PCI 120pin Card edge, TASCAM TDMCS format, for optional inter- face cards Digital Tracking Recorder input/output terminals     TDIF D-sub 25pin female, TDIF-1 format SLOT2 PCI 120pin Card edge, TASCAM TDMCS format, for optional inter- face cards Optional Interface cards  AES/EBU interfaceHi-sampling mode (Hi-speed only) IF-AD/DM ADAT interface (SYNC connector is not available) IF-TD/DM TDIF interface (REMOTE OUT connector is not available) IF-AN/DM Analogue interface (use with 20dB headroom) Hi-sampling mode Note: Only one IF-AN/DM (Analogue card) is available for SLOT1 - SLOT3         D-sub 25pin female, AES-1992 format SLOT3 PCI 120pin Card edge, TASCAM TDMCS format, for optional inter- face cards       D-sub 25pin female, balanced Output impedance <100 ohm Nominal output level +4dBu Max. output level +24dBu DAC resolution 24bit AES/EBU D-sub 25pin female, AES-1992 (AES/EBU) format Stereo CR inputs No. of channels 2 input channels ANALOG TRS jack x 2, balanced Input impedance >10k ohm Nominal input level +4dBu ADC resolution 24bit Other input/output terminals ! Mini TRS jack (Tip: MUTE, Ring: DIMMER, Sleeve: GND), TTL level input (detects down edge of signals) REMOTE IN 1 D-sub 9pin female

Page 2

TEAC CORPORATION 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550, Japan Tel: +81-422-52-5082 www.teac.co.jp TEAC AMERICA, INC 7733 Telegraph Road, Montebello, CA 90640 USA Tel: +1-323-726-0303 www.tascam.com TEAC CANADA LTD 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Tel: +1-905-890-8008 www.tascam.com TEAC MEXICO, SA de CV Campesinos Nº184, Colonia Granjas Esmeralda, Delegacion Iztapalapa, CP 09810 Mexico DF Tel: +52-(5)-658-1943 TEAC UK LIMITED 5 Marlin House, The Croxley Centre, Watford, Herts., WD1 8YA, UK Tel: +44-1923-819630 www.tascam.co.uk TEAC DEUTSCHLAND GmbH Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Deutschland Tel: +49-611-71580 www.tascam.de TEAC FRANCE SA 17 Rue Alexis-de-Tocqueville, CE 005 92182 Antony Cedex, France Tel: +33-1-42.37.01.02 www.tascam-europe.com TEAC ITALIANA SpA Via C. Cantu 11, 20092 Cinisello Balsamo, Milano, Italy Tel: +39-2-66010500 www.teac.it TEAC AUSTRALIA PTY LTD          Tel: +61-3-9646-1733 www.teac.com.au        © 2002 TEAC Corporation · All rights reserved · Design and specifications subject to change without notice. REMOTE IN 2 D-sub 9pin female WORD IN BNC, TTL level input with 75 ohm terminate switch RS-232C (no function available) D-sub 9pin male Analogue audio output performance Master recorder input (AES/EBU) ->Monitor output (Analogue) Total Harmonic Distortion <0.004%, 1kHz, 0dBFS input, fs=48kHz S/N ratio >113dB, fs=48kHz, A-weighted Dynamic range >113dB, 1kHz, -“60dBFS input, fs=48kHz, A-weighted Frequency response 20Hz -“ 20kHz ±0.5dB, 1kHz, 0dBFS input, fs=48kHz 20Hz -“ 40kHz +0.5/-1.5dB, 1kHz, 0dBFS input, fs=96kHz Crosstalk <-“100dB, 1kHz, 0dBFS input, fs=48kHz Master recorder input (AES/EBU) ->Analogue insert output (SLOT3: IF-AN/DM) Total Harmonic Distortion <0.006%, 1kHz, 0dBFS input, fs=48kHz S/N ratio >111dB, fs=48kHz, A-weighted Dynamic range >111dB, 1kHz, -“60dBFS input, fs=48kHz, A-weighted Frequency response 20Hz -“ 20kHz ±0.5dB, 1kHz, 0dBFS input, fs=48kHz 20Hz -“ 40kHz ±1.0dB, 1kHz, 0dBFS input, fs=96kHz Crosstalk <-“100dB, 1kHz, 0dBFS input, fs=48kHz      " #$ %&' "%& Total Harmonic Distortion <0.003%, 1kHz, +24dBu input, fs=48kHz S/N ratio >113dB, fs=48kHz, A-weighted Dynamic range >113dB, 1kHz, -“36dBu input, fs=48kHz, A-weighted Frequency response 20Hz -“ 20kHz ±0.5dB, 1kHz, +24dBu input, fs=48kHz 20Hz -“ 40kHz ±0.5dB, 1kHz, +24dBu input, fs=96kHz Crosstalk <-“100dB, 1kHz, +24dBu input, fs=48kHz Analogue insert input (SLOT3 : IF-AN/DM) ->Monitor output (AES/EBU) Total Harmonic Distortion <0.003%, 1kHz +24dBu input, fs=48kHz S/N ratio >106dB, fs=48kHz, A-weighted Dynamic range >106dB, 1kHz, -“36dBu input, fs=48kHz, A-weighted Frequency response 20Hz -“ 20kHz ±0.5dB, 1kHz, +24dBu input, fs=48kHz 20Hz -“ 40kHz ±0.5dB, 1kHz, +24dBu input, fs=96kHz Crosstalk <-“100dB, 1kHz, +24dBu input, fs=48kHz Power supply and other specifications Voltage requirements 120V AC, 60Hz / 230V AC, 50Hz Power consumption 32 W Dimensions (W x H x D) 482mm x 148mm x 401mm (overall) 316mm x 38.6mm x 113mm (control panel) Weight 8.65kg (main unit) 0.85kg (control panel)
