tascam dm 24 brochure

Extracted text from tascam dm 24 brochure (Ocr-read)

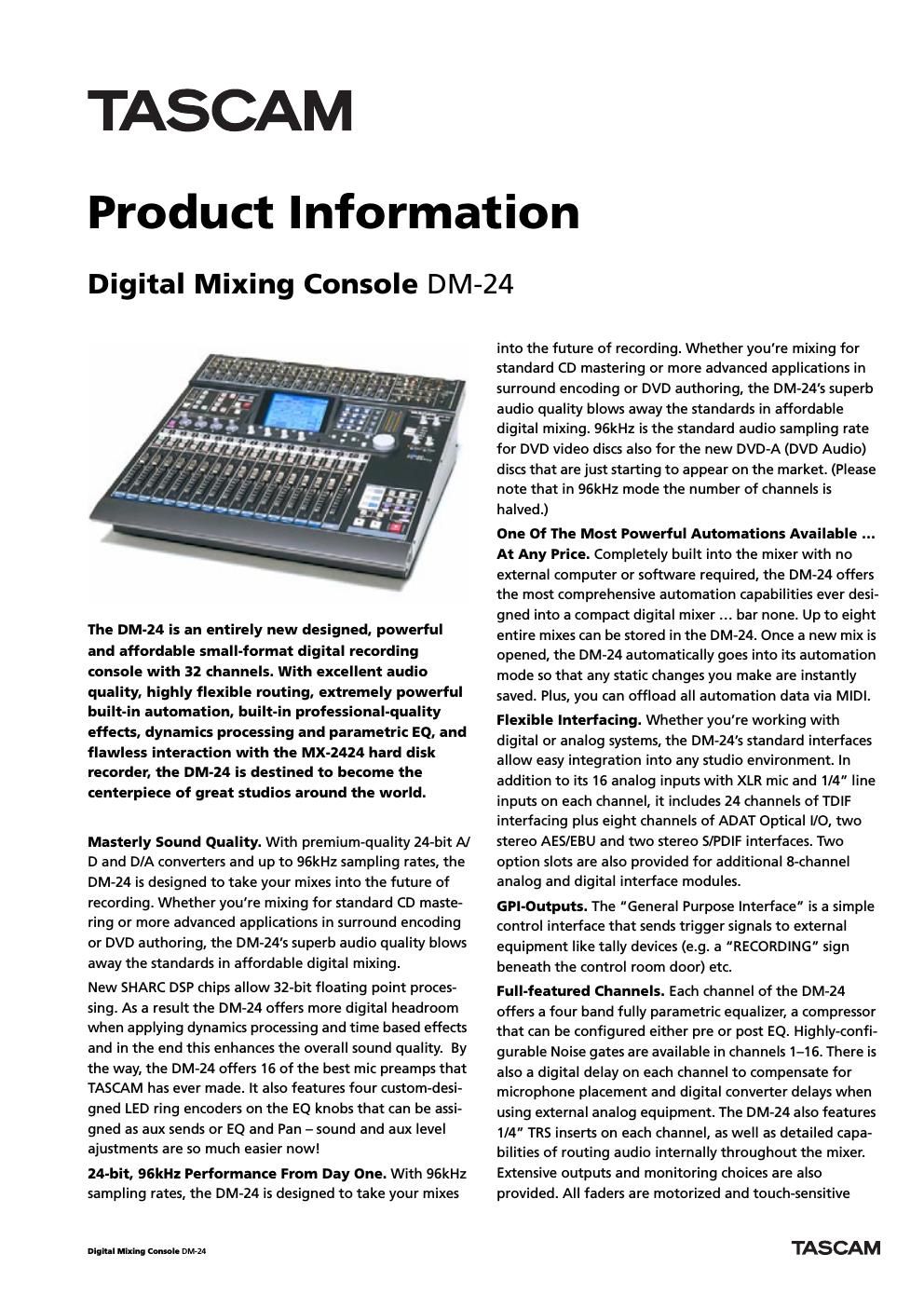

Page 1

Digital Mixing Console DM-24 with respect to automation allowing easy and comfortable operation. Professional Dynamics Processing, EQ and Effects. You may not ever need to turn to outboard effects proces- sors, equalizers or compressors with the DM-24. With highly-configurable gates, fully-parametric 4-band EQs and compression on each channel, the DM-24 offers everything you need for great mixes built right into the mixer. Each channel also features a custom-designed delay with an innovative circuit design that compensates for fixed laten- cies within a digital studio. Also, the effects available on the DM-24 are comparable to the best effects found in professional studios worldwide. Its easy to understand why: TASCAM has teamed up with TC Electronic and Antares to offer high-quality reverb, mic modeling and speaker modeling for the DM-24. Fully adju- stable to your tastes, the DM-24s effects are of high enough quality for primary vocal tracks with the conveni- ence of being an integral part of the mixer itself. As an affordable mixer with true 96kHz capabilities and full 24-bit performance throughout the signal path, the DM-24 is perfect for interacting with the TASCAM MX- 2424 24-Track 24-Bit Hard Disk Recorder. Full transport control, LED ring encoders, hierarchical grouping and smooth 100mm long-throw faders make it an excellent console for any serious studio. Main Features Fully 24-bit, 96kHz compatible from day one Flexible 32-channel configuration Standard interfaces: 24-channel TDIF I/O, 8-channel ADAT Optical I/O, two stereo AES/EBU, two stereo SPDIF 16 analog inputs (XLR mic and 1/4 line) with inserts on every channel Advanced microphone preamps Powerful built-in automation (no computer required) 100mm motorized long-throw faders Premium-quality 24-bit A/D and D/A converters Two option slots for additional interface modules (inclu- ding AES/EBU, analog, TDIF or ADAT) EQ and Compressor on each channel, high-quality confi- gurable gates on channels 1-“164-band, fully parametric EQ with gain, frequency sweep and Q (bandwidth) on each channel Digital delay on each channel to compensate for latency Two built-in effects processors with reverb, spatial effects and mic/speaker modeling effects by TC Works-„˘, Antares-„˘ and TASCAM 32 bit floating point processing offers more digital headroom when applying dynamics processing and time based effects Comprehensive user interface, featuring large LCD screen and LED ring encoders Two DM-24s can operate as a single integrated console via cascade mode Extensive machine control Specifications Analogue input/output terminals MIC IN 1-16 XLR-3-31, balanced Nominal impedance 2.2kohm Input level -56dBu (TRIM max) to -“2dBu (TRIM min) LINE IN 1-16 1/4-inch TRS jack, balanced Nominal impedance 10kohm Input level -42dBu (TRIM max) to +12dBu (TRIM min) INSERT 1-16 1/4-inch TRS jack, balanced Nominal output impedance 100ohm Nominal output level -2dBu Maximum output level +20dBu Nominal input impedance 10kohm Nominal input level -2dBu Headroom 16dB ASSIGNABLE SENDS 1-4 1/4-inch TRS jack, balanced Nominal impedance 100ohm Nominal level -2dBu Maximum level +14dBu

Page 2

Digital Mixing Console DM-24 ASSIGNABLE RETURNS 1-4 1/4-inch TRS jack, balanced Nominal impedance 5kohm Nominal level -2dBu Headroom 16dB 2TR IN (L/R) RCA jack, unbalanced Nominal impedance 10kohm Nominal level -10dBV Headroom 16dB STEREO OUTPUT (L/R) XLR-3-31, balanced Nominal impedance 100ohm Nominal level +4dBu Maximum level +20dBu STEREO INSERT (L/R) 1/4-inch TRS jack, balanced Nominal output impedance 100ohm Nominal output level -2dBu Maximum output level +14dBu Nominal input impedance 10kohm Nominal input level -2dBu Headroom +22dB CR MONITOR OUTPUT (L/R) 1/4-inch TRS jack, balanced Nominal impedance 100ohm Nominal level +4dBu Maximum level +20dBu STUDIO MONITOR OUTPUT (L/R) RCA jack, unbalanced Nominal impedance 100ohm Nominal level -10dBV Maximum level +6dBV PHONES 1-2 1/4-inch stereo phone jack Max output power 120mW + 120mW in total, 33ohm Digital input/output terminals DIGITAL INPUT 1 (built-in switchable Fs converter, connector selectable) (1) Connector XLR-3-31 type, balanced Nominal impedance 110ohm Format Conforms to AES3-1992/IEC60958 (auto-detect) Audio bit length 24 bit (2) Connector Coaxial Nominal impedance 75ohm Format Conforms to AES3-1992/IEC60958 (auto-detect) Audio bit length 24 bit DIGITAL INPUT 2 (built-in switchable Fs converter, connector selectable) (1) Connector XLR-3-31 type, balanced Nominal impedance 110ohm Format Conforms to AES3-1992/IEC60958 (auto-detect) Audio bit length 24 bit (2) Connector Coaxial Nominal impedance 75ohm Format Conforms to AES3-1992/IEC60958 (auto-detect) Audio bit length 24 bit DIGITAL OUTPUT 1 (1) Connector XLR-3-31 type, balanced Nominal impedance 110ohm Format Conforms to AES3-1992/IEC60958 (selectable) Audio bit length 24 bit (2) Connector Coaxial Nominal impedance 75ohm Format Conforms to AES3-1992/IEC60958 (selectable) Audio bit length 24 bit DIGITAL OUTPUT 2 (1) Connector XLR-3-31 type, balanced Nominal impedance 110ohm Format Conforms to AES3-1992/IEC60958 (selectable) Audio bit length 24 bit (2) Connector Coaxial Nominal impedance 75ohm Format Conforms to AES3-1992/IEC60958 (selectable)
