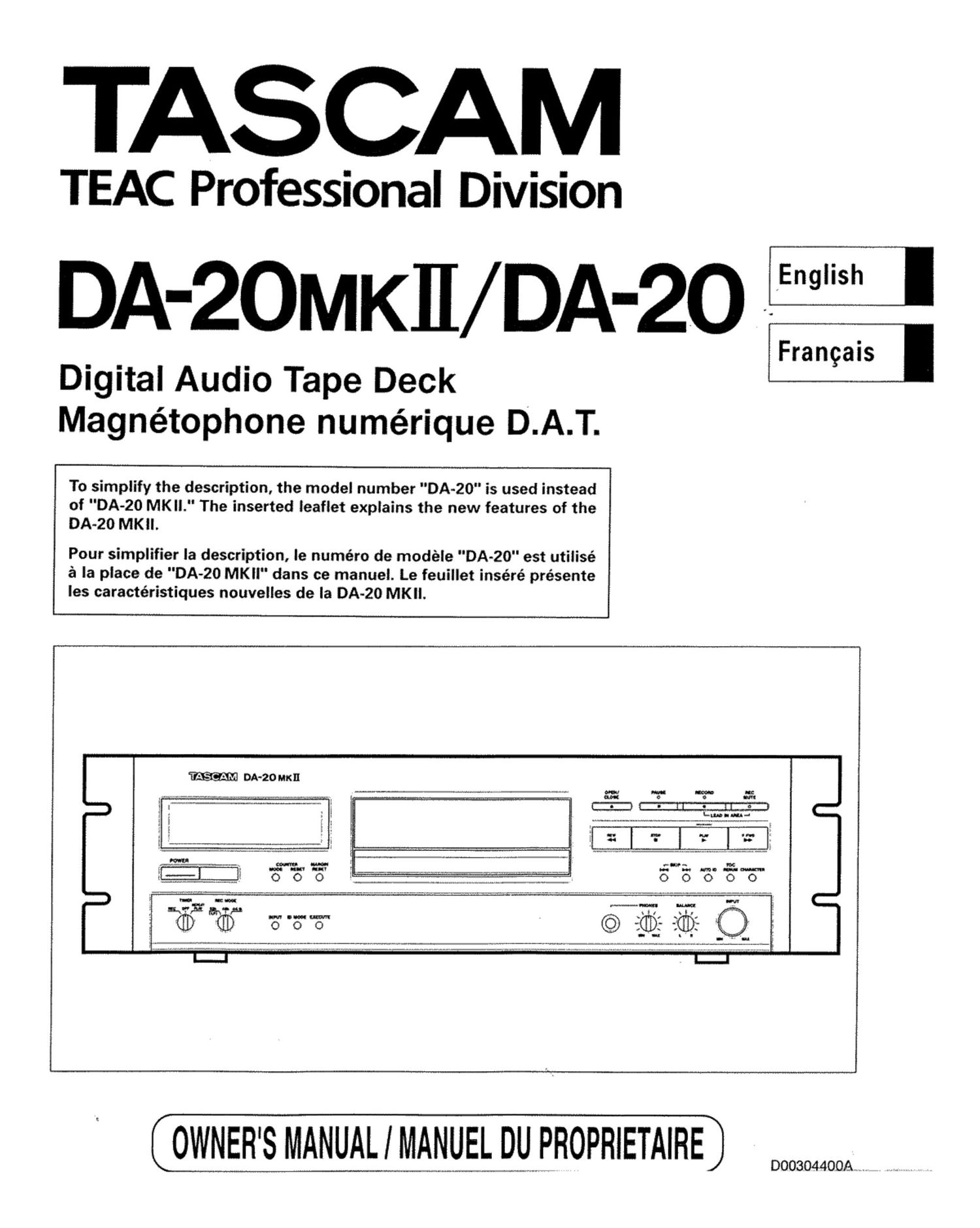

Page 1


TEAC Professional Division

DA-20MKII/DA-20 ..

Digital Audio Tape Deck
Magnétophone numérique D.A.T.

To simplify the description, the model number "DA-20" is used instead
of "DA-20 MKII." The inserted leaflet explains the new features of the

Pour simplifier la description, le numéro de modéle "DA-20" est utilisé
a la place de "DA-20 MKII" dans ce manuel. Le feuillet inséré présente
les caractéristiques nouvelles de la DA-ZO MKll.




DOO3044OOA ,

Page 2



0 Read all of these instructions.

0 Save these Instructions for later use.

0 Follow all warnings and instructions marked on the audio

1) Head instructions - All the safety and operating instructions should be
read before the product is operated.

2) Retain instructions - The safety and operating instructions should be
retained for future reference.

3) Reed Warnings - All warnings on the product and in the operating
instructions should be adhered to.

4)Follow Instructions - All operating and use instructions should be

5) Cleaning - Unplug this product from the wall outlet before cleaning.

Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
ll) Attachments - Do not use attachments not recommended by the product
manufacturer as they may cause hazards.

7) Water and Moisture ~ Do not use this product near water - for example.
near a bath tub. wash bowl. kitchen sink. or laundry tub; in a wet basement;
or near a swimming pool; and the like.

8) Accessories - Do not place this product 'on an unstable cart. stand.
tripod. bracket. or table. The product may fall. causing serious injury to a'child
or adult. and serious damage to the product. Use only with a cart. stand.
tripod. bracket. or table recommended by the manufacturer. or sold with the
product. Any mounting of the product should follow the manufacturer's
instructions. and should use a mounting accessory recommended by the

9) A product and cart combination should be moved with care. Quick stops.
excessive force, and uneven surfaces may cause the product and cart
combination to overturn.

10) Ventilation - Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the product and to protect it
from overheating. and these openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed. sofa. rug.
or other similar surface. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided
or the manufacturers instructions have been adhered to.

11) Power Sources - This product should be operated only from the type of
power source indicated on the marking label. If you are not sure of the type of
power supply to your home. consult your product dealer or local power
company. For products intended to operate from battery power. or other
sources. refer to the operating instructions.

12) Grounding or Polarization - This product may be equipped with a
polarized altemating-current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way. This is a safety
feature. if you are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit. contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13) Power-Cord Protection - Power-supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs. convenience receptacles.
and the point where they exit from the product

tat) Outdoor Antenna Grounding - If an outside antenna or cable system is
connected to the product. be sure the antenna or cable system is grounded
so as to provide some protection against voltage surges and built-up static
charges. Article 810 of the National Electrical Code. ANSI/NFPA 70, provides
information with regard to proper grounding of the mast and supporting
structure. grounding of the lead-in wire to an antenna discharge unit. size of
grounding conductors. location of antenna-discharge unit. connection to
grounding electrodes. and requirements forthe grounding electrode.


Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to
Section 82040 of the NEC which provides guidelines for proper grounding
and. in particular. specifies that the cable ground shall be connected to the
grounding system of the building. as close to the point of cable entry as

Example of antenna grounding as per
National Electrical Code. ANSI/NFPA To

also-«ac: we!
(ate sullen are-20)

caouaomc Wicks
(m scarce era-1|)

Poets some: caouriomo
H melt-cot Srsthr
(Ntc Mt zoo. PART it)

NSC - NAM sacrum coo:

15) Lightning - For added protection for this product during a lightning
storm. or when it is left unattended and unused for long periods of time.
unplug it from the wall outlet and disconnect the antenna or cable system.
This will prevent damage to the product due to lightning and power-line

is) Power Lines ~ An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or power circuits. or
where it can fall into such power lines or circuits. When installing an outside
antenna system. extreme care should be taken to keep from touching such
power lines or circuits as contact with them might be fatal.

17) Overloading - Do not overload wall outlets. extension cords. or integral
convenience receptacles as this can result in a risk of fire or electric shock.
18) Object and Liquid Entry - Never push objects of any kind into this
product through openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock. Never spill liquid of
any kind on the product.

19) Servicing - Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.

20) Damage Requiring Service - Unplug this product from the wall outlet
and refer servicing to qualified service personnel under the following

a) When the power-supply cord or plug is damaged.

b) if liquid has been spilled. or objects have fallen into the product.

c) if the product has been exposed to rain or water.

d) if the product does not operate normally by following the operating
instructions. Adjust only these controls that are covered by the operating
instructions as an improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician to restore the
product to its normal operation.

e) if the product has been dropped or damaged in any way.

i) when the product exhibits a distinct change in performance - this indicates
a need for service.

21) Replacement Parts - When replacement parts are required. be sure the
service technician has used replacement parts specified by the manufacturer
or have the same characteristics as the original part. Unauthorized
substitutions may result in fire. electric shock. or other hazards.

22) Safety Check -- Upon completion of any service or repairs to this
product. ask the service technician to perform safety checks to determine that
the product is in proper operating condition.

23) Wall or Ceiling Mounting - The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.

24) Heat -- The product should be situated away from heat sources such as
radiators. heat registers. stoves. or other products (including amplifiers) that
produce heat.
