Tascam cdrw 750 brochure

This is the 2 pages manual for tascam cdrw 750 brochure.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 2
left right

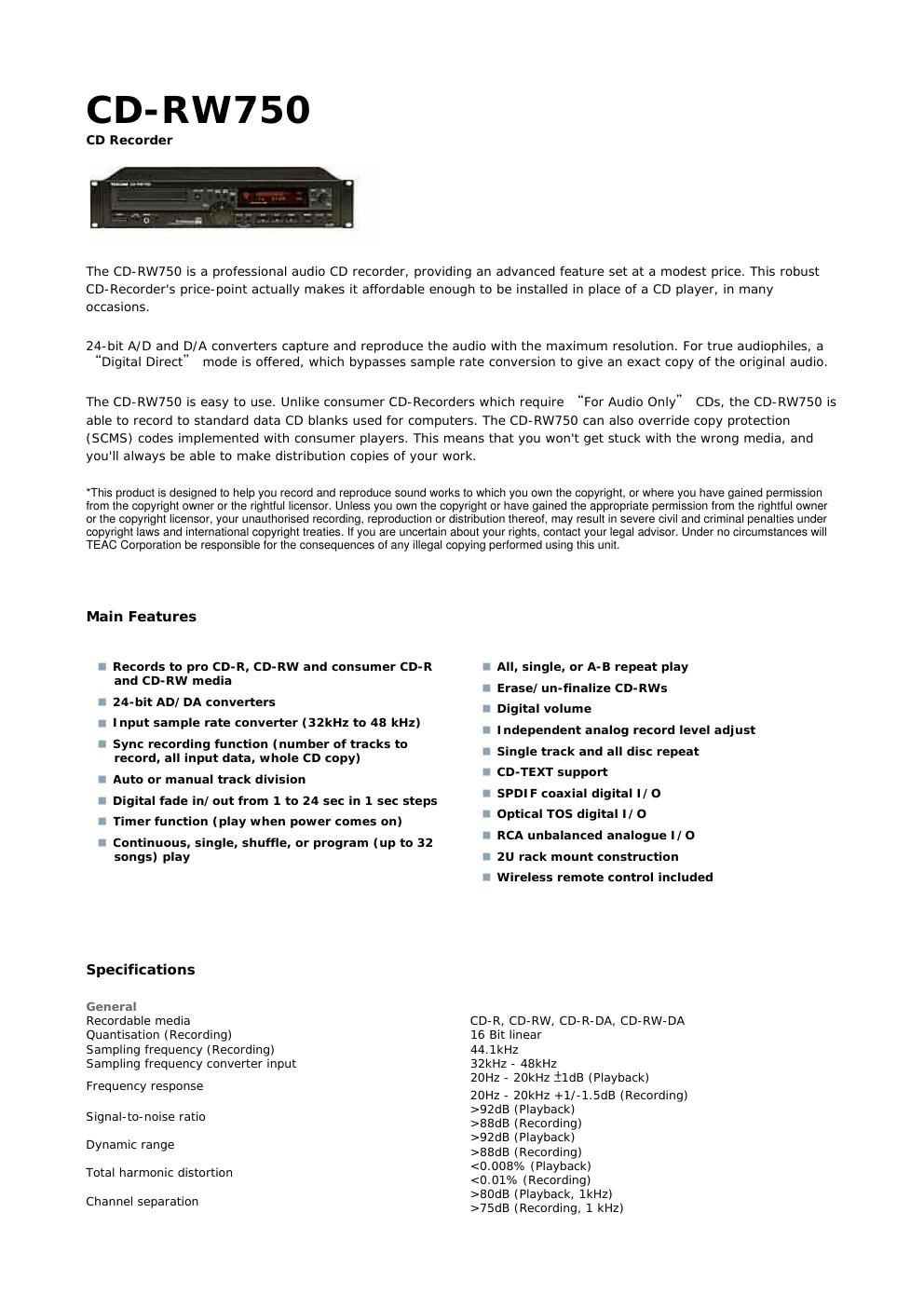

tascam cdrw 750 brochure

Extracted text from tascam cdrw 750 brochure (Ocr-read)


Page 1

Design and specifications subject to change without notice. Analogue inputs and outputs Analogue input Nominal level Maximum level Nominal impedance RCA, unbalanced -10dBV (-16dBFS) +6dBV 33kOhm (unbalanced) Analogue output Nominal level Maximum level Nominal impedance RCA, unbalanced -10dBV (-16dBFS) +6dBV 800Ohm (unbalanced) Headphones output Output power 6.3-mm stereo jack 35mW + 35mW (at 32Ohm) Digital inputs and outputs Digital inputs Coaxial Optical IEC60958 TYP II (SPDIF) IEC60958 TYP II (TOSLINK) Digital outputs Coaxial Optical IEC60958 TYP II (SPDIF) IEC60958 TYP II (TOSLINK) Power supply and other specifications Power supply 120V 60Hz, USA/Canada 230V 50Hz, UK/Europe 240V 50Hz, Australia Power consumption 16 W Dimensions (W x H x D) 482 mm x 93 mm x 312 mm Weight 6.7kg Supplied accessories RC-RW750 Infra-red remote control unit
