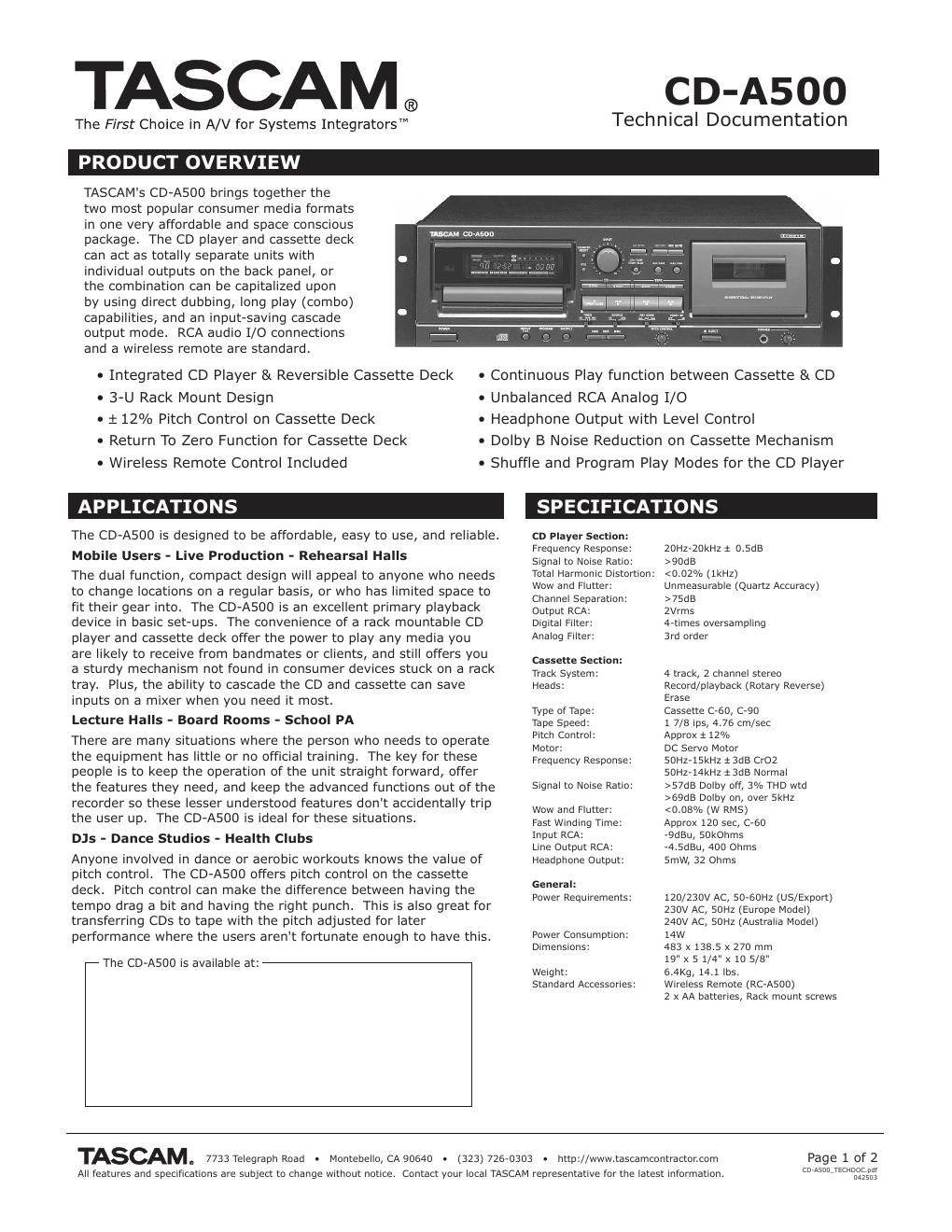

CD-A500 Technical D ocumentation
7733 T elegraph R oad - Montebello , CA 90640 - (323) 726-0303 - http://www .tascamcontr actor.comAll features and specifications are subject to change without notice. Contact y our local TASCAM representativ e for the latest information. Page 2 of 2CD -A500_TECHD OC.pdf 042503
PANELS AND REMOTE
The CD player and cassette deck shall becombined into a single unit that can mount in three standa rd 19" rack spaces in height.The CD player shall be a single CD pla yerwith a power-tray loading mecha nism. The cassette deck shall be a two head bi-directional player/recorder .
The CD playermodes, including Progr am Play and Shuffle Play, and shall also be capable of continuous play of one tr ack, or all tracks.
The CD playershall off er the abilit y to record directlyfrom the CD to the cassette. F or increased dynamic range during recording, the cassette mechanism shall utiliz e switchable Dolb y B noise reduction circuit.
The cassette mechanismcounter reset and a return to zero f unction.
Pitch controlcassette deck to approximately ±12%, and adjustable from the front panel.
Analog outputs sha ll beunbalanced RCA connectors for the CD pla yer . A line output shall pro vide outputs f or both the CD pla yer and cassette deck on unbalanced RCA connectors. Line input for the cassette deck shall be pro vided on unbalanced RCA connectors.
The combo unitfunction that enga ges a function whenpowered up . The a vailable options shall beplay CD , pla y tape and record tape.
The CD player and cassette deck combo shall be controllable with a TA SCAM RC -A500 wireless remote. Dimensions shall be 19" x 5 1/4" x 10 5/8" (W x H x D).
Metri c mea surements: 483x138.5x270mm.
The CD player unit shall be a TASCAM CD-A500.
NOTE:TASCAM' s
ARCHITECT'S SPECIFICATIONS
