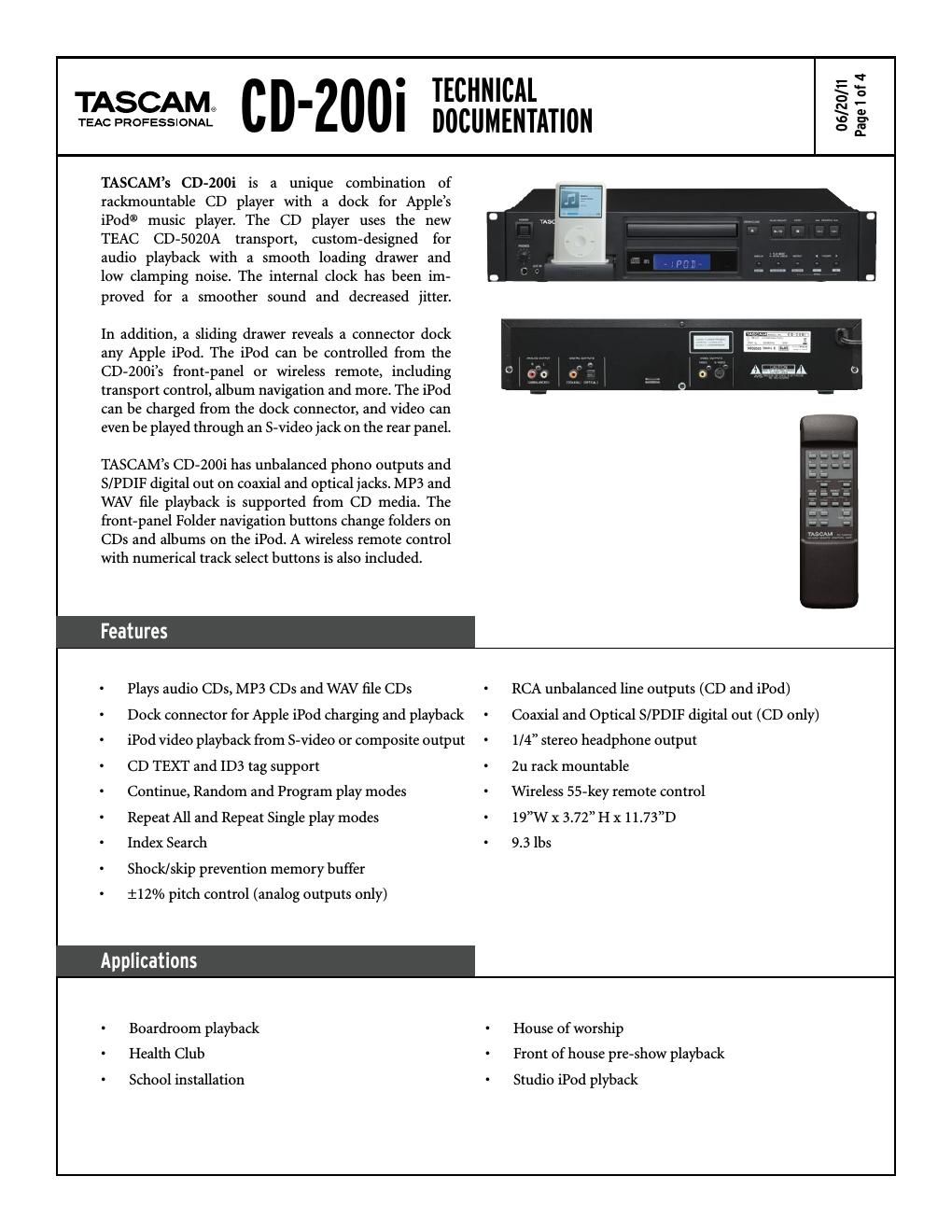

Specifications -“ Ratings
Specifications -“ Input/Output
Audio Performance (CD Playback)
- Compatible disc formats: CD-DA (12-cm/8-cm), CD-
ROM (12-cm/8-cm) ISO 9660 LEVEL 1/2/ROMEO/
JOLIET format (CD-R/CD-RW DISC compatible)
- Playable format: Audio CD (CD-DA), MPEG1 Audio
Layer III (MP3) WAV
MP3 Playback Specifications:
- Audio Mode: STEREO/JOINT STEREO/DUAL CHAN-
NEL/MONO
- Sampling Frequency: 32 kHz/44.1 kHz/48 kHz
- Bit Rate: 32 kbps - 320 kbps, and VBR WAV Playback Specifications:
-
Sampling Frequency: 8 kHz/11.025 kHz/12 kHz/16
- kHz/22.05 kHz/24 kHz/32 kHz/44.1 kHz/48 kHz Sam-
pling Bit Rate: 8 bit/16 bit
Audio CD Playback Specifications:
- Sampling Frequency: 44.1 kHz
- Sampling Bit Rate: 16 bit
- Number of Channels: 2
AUX IN (UNBALANCED) Jack
- Connector: 3.5 mm stereo mini jack Reference Input
Level: -“16 dBV Maximum Input Level: 0 dBV Input im-
pedance: 22 k
ANALOG OUTPUT (UNBALANCED)
- Terminal Connector: RCA pin jack CD Reference Out-
put Level: -“10 dBV CD Maximum Output Level: +6
dBV
- Output Impedance: 200
PHONES Jack
- Connector: Standard Stereo Jack Maximum Output
Level: 20 mW + 20 mW Load Impedance: 32
DIGITAL OUTPUT (OPTICAL) Terminal
- Connector: Optical Jack Compatible Signal Format:
IEC-60958 Type II (S/PDIF) DIGITAL OUTPUT (COAXIAL) Terminal
-
Connector: RCA Pin Jack Compatible Signal Format:
IEC-60958 Type II (S/PDIF)
Video Output Connector:
- RCA Pin Jack Compatible Signal Format: Composite
video signal Output Impedance: 75
S-VIDEO Output Connector
- 4-pin mini-DIN connector
- Compatible Signal Format: Separate video signal
- Frequency Response: 20 Hz - 20 kHz ±1.5 dB
- Signal-to-Noise Ratio (S/N): More than 90 dB (20 kHz
LPF + A-weighted)
- Dynamic Range: More than 90 dB (20 kHz LPF + A-
weighted) -
Total Harmonic Distortion: Less than 0.01% (1 kHz, 20
kHz LPF)
- Channel Separation: More than 90 dB (1 kHz, 1 kHz
BPF)
