Tascam cc 222 mk2 brochure

This is the 5 pages manual for tascam cc 222 mk2 brochure.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

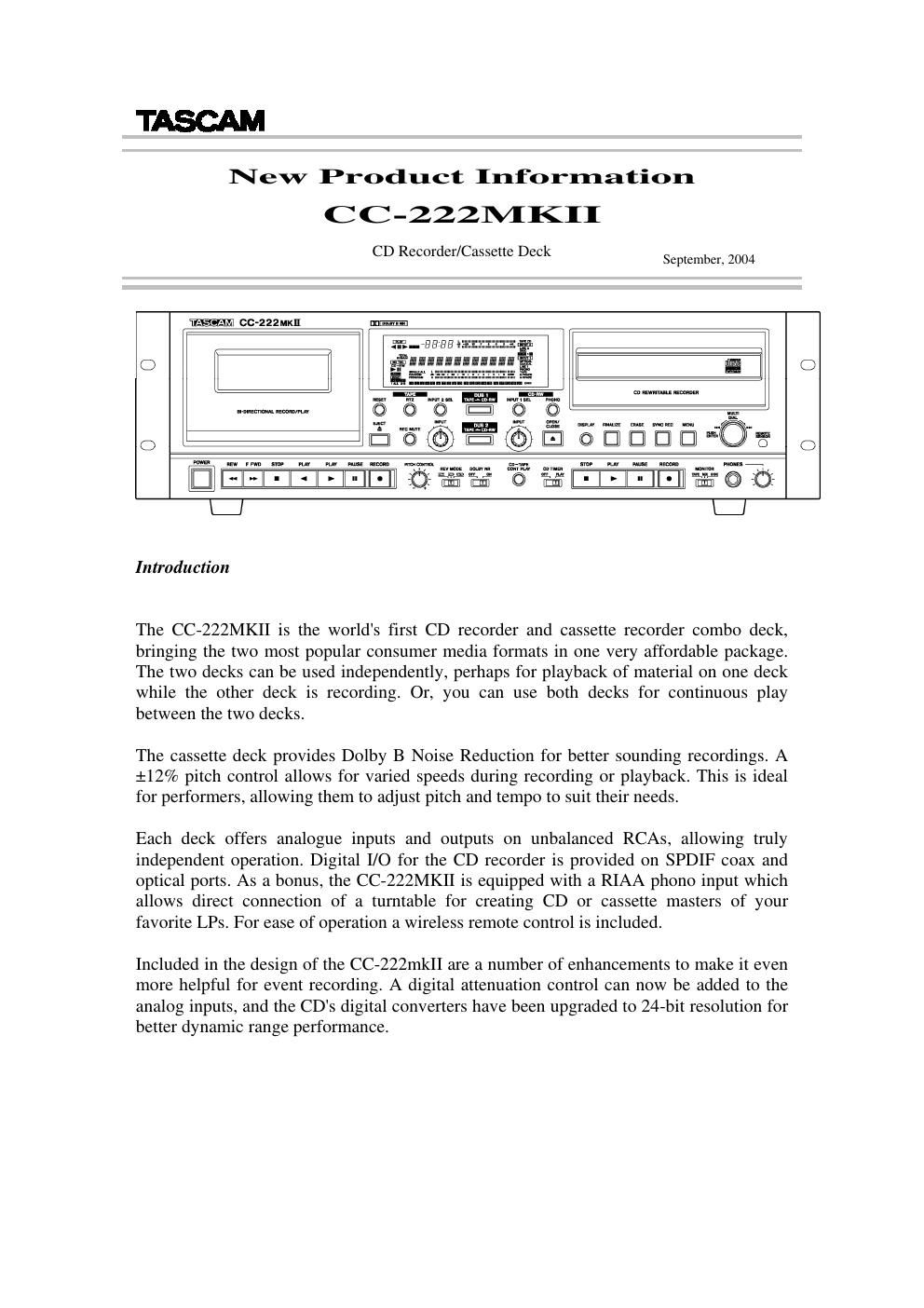

Page: 1 / 5
left right
tascam cc 222 mk2 brochure

Extracted text from tascam cc 222 mk2 brochure (Ocr-read)

Page 1

Main Features CD-RW Recorder z Applicable discs: CD-R, CD-RW, CD-R-DA, CD-RW-DA z Digital input volume control z Sampling rate converter (32kHz / 44.1kHz / 48kHz) z RCA pin jack, unbalanced analog input/output z COAXIAL and OPTICAL digital input/output z Fade in and out (1 to 24 seconds, 1 second steps) z Auto track increment (via SPDIF or Audio level) z Sound level for auto track and sync recording to be adjustable - Sound level: -72, -66, -60, -54, -48, -42, -36, -30, -24dB z Sync rec z Manual Track Increment z REC MUTE z Erase for CD-RW discs z Un-finalize of CD-RW discs z Single play, continuous play, random play, and program play (maximum 25 songs) z Single, all, and A-B repeat z Intro check z Timer play (Power-on-play) Cassette deck z Auto reverse z Dolby B noise reduction z Approx. +/-12% pitch control z RTZ (Return to Zero) z Rec Mute z CPS General z Cassette to CD-R/RW dubbing and vice versa z Phono input for recording onto CD-R/RW discs or cassette tape z Continuous playback z Wireless remote controller RC-222 supplied as standard z 3U rack mountable

Page 2

Specifications CD-R/RW Recorder Applicable discs: CD, CD-R, CD-RW, CD-R-DA, CD-RW-DA Quantization: 16-bit Sampling frequency: 44.1KHz Line Input: RCA Nominal Input Level: -10dBV Input Impedance: 50k ohm Line Output: RCA Nominal Output Level: -10dBV Output Impedance: 1k ohm Digital Input: Coaxial Format: IEC60958 Type II (S/PDIF) Digital Input: TOS LINK Format: IEC60958 Type II (S/PDIF) Digital Output: Coaxial Format: IEC60958 Type II (S/PDIF) Digital Output: TOS LINK Format: IEC60958 Type II (S/PDIF) Frequency response: 20Hz to 20kHz, +/-1.0dB (playback) 20Hz to 20kHz, +1.0dB, -1.5dB (recording) Signal to noise ratio: 92dB (playback) 88dB (recording) Dynamic range: 92dB (playback) 88dB (recording) T.H.D: < 0.008% (playback) < 0.01% (recording) Channel separation: 80 dB (@1kHz, playback) 75 dB (@1kHz, recording) Cassette Deck Tape: Compact cassette tape C-60/90 (Normal and High Position, Metal: playback only) Track Format: 4-track, 2-channel Head Configuration: 4-track, 2-channel ; Record/repro combination rotary head x 1 Erase head x 1 Motor: DC servo motor x 1 Tape Speed: 4.76 cm/sec Pitch Control: approx. +/- 12 %
