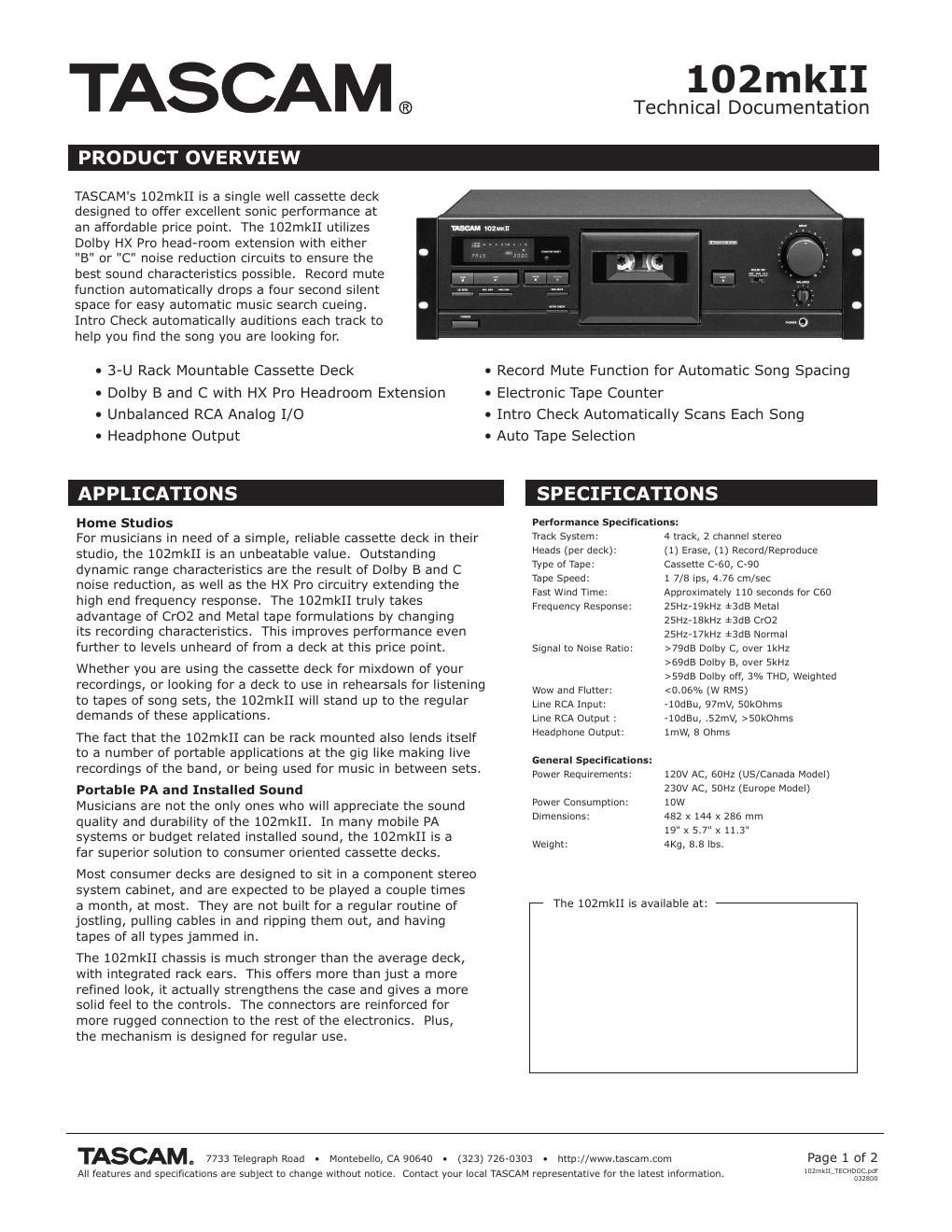

102mkII Technical Documentation
7733 Telegraph R oad - Montebello , CA 90640 - (323) 726-0303 - http://www .tascam.comAll features and specifications are subject to change without notice. C\
ontact y our local TASCAM representativ e for the latest information. Page 2 of 2
FRONT AND BACK PANEL
ARCHITECT'S SPECIFICATIONS
The cassette pla yer/recorder shall be a single wellcassette deck, utilizing a two head mechanism for pla yback and recording.
Inputs and outputsconnectors on the rear panel. The input lev el shall be controlled by a single stereo input lev el control, aidedby a separ ate balance control. Headphone output shall
be provided on the front panel.
Dolby-„˘ B and Croom extension shall be implemented. Noise reduction method shall be switched from the front panel.
The cwhich searches for each new progr am in the tape, playing the first 15 seconds of each tr ack.
The form, using three standard rack spaces. The cassette mechanism shall have dimensions of 19" x 5.7" x 11.3" (W x H x D).
Metric measurements : 482 x 144 x 286mm (W x H x D).
The dual cassette deck shall be a TASCAM 102mkII.
NOTE: This tSound Contractor CD-ROM. Contact TASCAM for details.
102mkII_TECHDOC.pdf 032800
