Tandberg TPT 3001 Service Manual
This is the 36 pages manual for Tandberg TPT 3001 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Extracted text from Tandberg TPT 3001 Service Manual (Ocr-read)

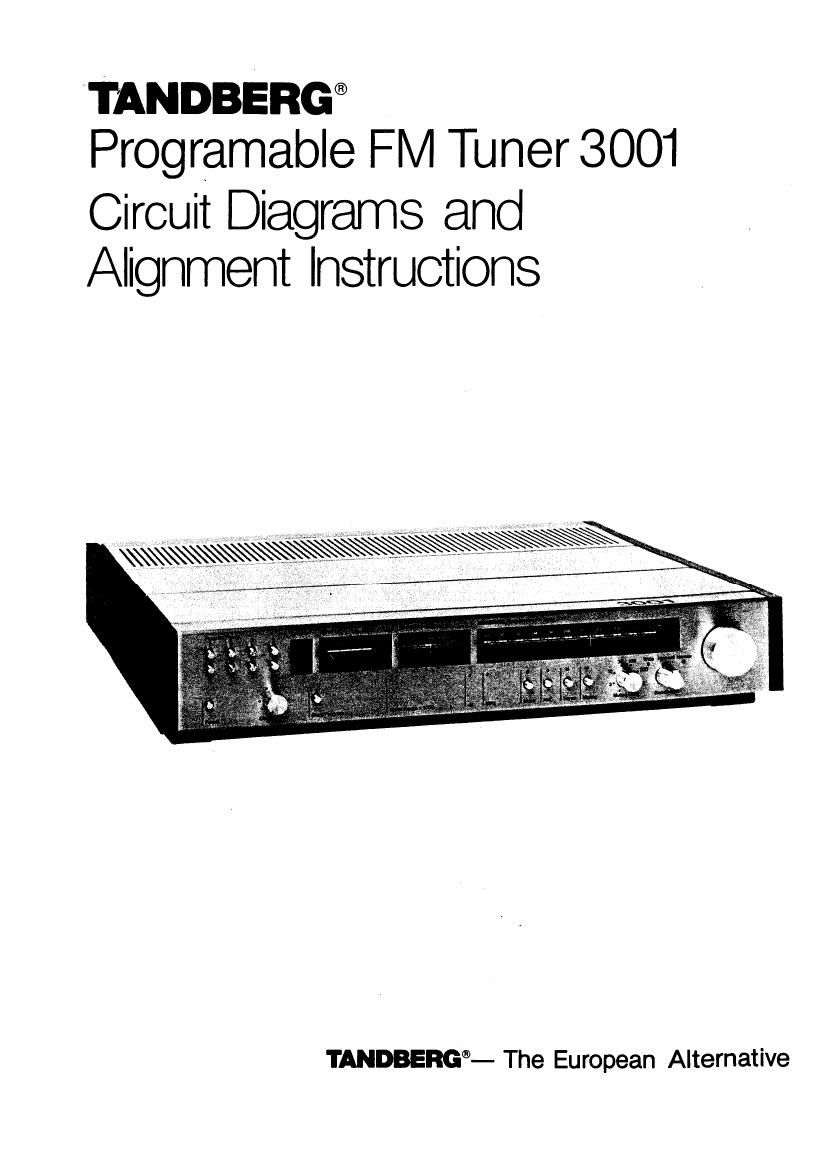

Page 1
TANDBERG®
Programable FM Tuner 3001
Circuit Diagrams and
Alignment Instructions
TANDBERG®- The European Alternative
Page 2
Contents
Page
Mechanical service .................................................................. 3
Electrical service .................................................................... 6
Main circuit diagram ................................................................. 7
Power supply and dial pointer adjustments ............................................... 8
Oscillator and front end .............................................................. 10
Limiter/Detector below serial No. 00700 ................................................. 12
Limiter/Detector above serial No. 00700 ................................................. 14
Selectivity below serial No. 00700 ...................................................... 16
Selectivity above serial No. 00700 ...................................................... 18
Signal meter, muting level ............................................................ 20
Tuning system 1 .................................................................... 24
Tuning system 2 .................................................................... 26
Stereo decoder ..................................................................... 28
Integrated circuits .................................................................. 32
Other PC boards ............................................... ..................... 34
Modifications ...................................................................... 35
Technical data ..................................................................... 36
Page 15
LIMITE
P7", cum
Figure 24 Limiter/detector board above serial No. 00 700, component side
Limiter/Detector, d.c.-reference and distortion
0 Connect oscilloscope (dc-mode) to the
F M-Multipath Vert. terminal.
0 Pull out signal plug P201 on the selectivity box
(see figure 25).
0 Connect signal generator to JZOl (see figure 25).
l
1 : Efiflfkfi
:E'}-. FE?
30m
. U . . . . L, L,
Figure 25 Test points
0 Tune the generator to approx. 10.7 MHZ,
500 [IV modulated mono 1 75 kHz dev., 1 kHz
modulation.
0 Set Bandwidth selector to Narrow.
O Fine~tune the generator for symmetrical sinewave
on the oscilloscope (figure 26). The frequency
thus found is now used for the further
adjustments.
Figure 26 Symmetrical sinewave
0 Switch off the modulation and set the generator
output to 20 mV.
0 Set Bandwidth selector to Wide.
0 Pull out interconnector board No. 45430 (see
figure 2 7).
0 Connect a d.c. millivoltmeter (range 100 mV) to
P711, pin 4 (strap next to R786 on the main
board, see figure 27).
O Shortcircuit the strap to ground for a second.
L
P711i4l fl
7____
45430 [EU 4%)
if. mill-Ii H
L4 T. U 5
Figure 27 Test points
0 Adjust L308 for slightly less than 5 mV reading
on the millivoltmeter.
. Connect an oscilloscope (a.c.-mode, 5 mV) to
M501 on the decoder board (see figure 25).
0 Adjust L309 for minimum 10.7 MHZ on the
oscilloscope.
0 Put back interconnection board No. 4-5430 (see
figure 27).
0 Set the generator modulation to
i 75 kHz, 20 mV.
0 Connect distortion meter to one of the Fixed
Output terminals.
0 Adjust L307 for minimum distortion, typical
figure 0.006%.
0 Check the other channel.
0 Reduce the signal level to approx. 5 11V.
0 Connect the oscilloscope to one of the Fixed
Output terminals.
0 Adjust L301 for as clean and distortionfree
sinewave as possible. Start from an inner
position and screw the core outwards.
0 Put back the signal plug P201 on the selectivity
box (see figure 25).
