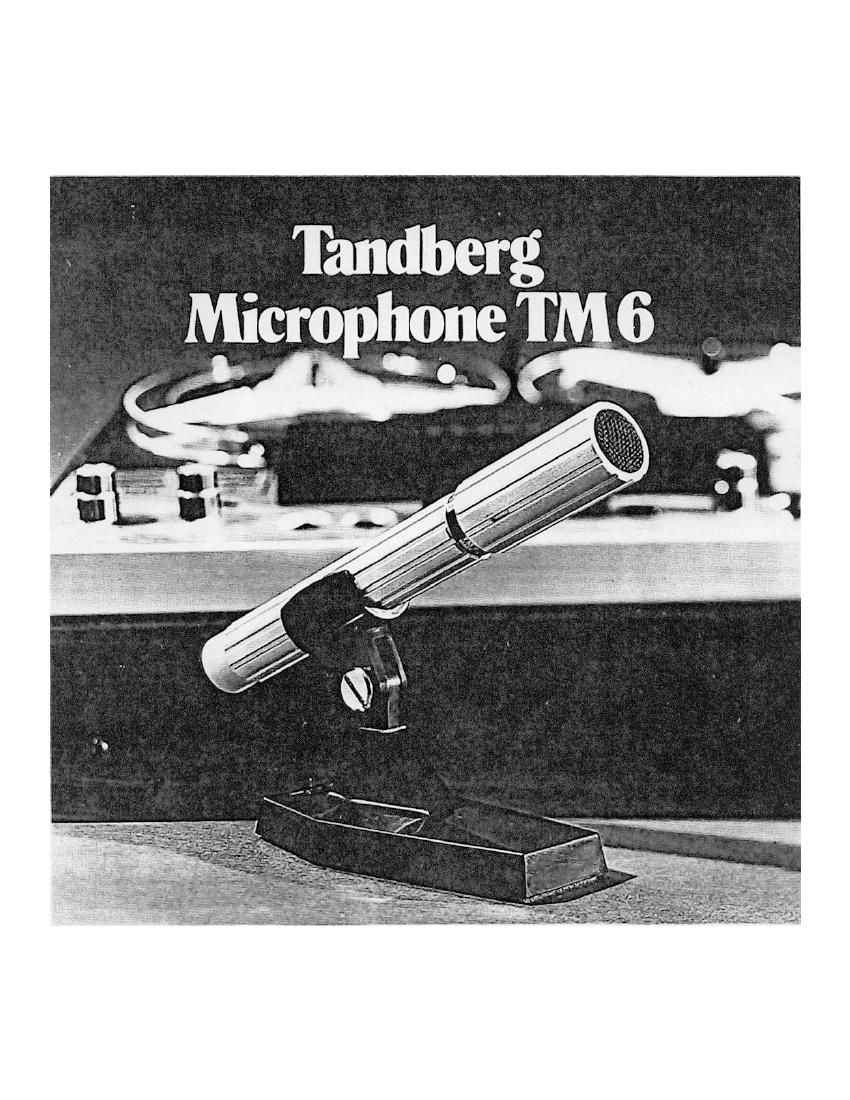

Tandberg TM 6 Brochure

This is the 2 pages manual for Tandberg TM 6 Brochure.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 2
left right
Tandberg TM 6 Brochure

Extracted text from Tandberg TM 6 Brochure (Ocr-read)


Page 2

Tandberg Micmphone TM6

Tandberg TMé er en lavohmig. dynamisk mikrol'on med et
elegant hus av ek$trudert aluminium. TM6 er lite folsom for
beratingsstoy Den har meget stort rrckvcnsomrade og jevn
Irckvenskurvc innenlor delle omrzldet. TM6 er vclegnet for
mengivelseav bade talc. sang og musikk,

TMé har kulekarakterislikk. dvs. at den tar app Iyden pmk-
tisk tall like godt fro nlle retninger. Mikrolonen er dempet
mot vtndstoy og blllselyder. Derlor er TM6 godl cgrtcl til bruk
ogstl megct naer lydkilden. [eks ved sang- cllcr talebruk.

TM6 kan tilsluttcs alle forsterkere. miksere og bandopptakere
med inngang for lavohmig. dynamisk mikrofon. Den kan sl<
ledos brukes til alle Tandberg transistoriserte blindopptakere.

MIKROFONAVSTAND

TM6 kan hrukcs bade Iangl lm 0g tttcgcl nter lydkildcn Vcd
bruk der det er stoyendc omglvelser. bot den plasscres nter
Iydkilden. For stor mikrofonavstantl lorer til at signalet blir
svakt 03 at hakgrunnfimy 0g romklangvirkning kommcr ster-
kere from. Nalr TM6 brukcs snmmen med Iorsterkere 0g hoyt-
talere, unngAs akuslisk tilbakckopling (hyleloncr) vod 5 ha
liten nvstand mellom mikrol'on 0g lydkilde.

TEKNISKE DATA +3
Frckvensgang: 5045000 HzLédB).
Prlnslpp: Elektrodynamisk.
Rctnlngsknmkterlstlkk: Omnidireksjonell (kule).
Folsomhct: 0_l mV/ttbar (ved l000 Hz).
lmpcdans: 2500hm.
Tllkopllng: Fastmontert knbcl med DIN-plugs.

Firm: 2 jord. pinne l 03 3 balansert signal.
Dlruensjonen Lengde IRS mm. storste diameter 23,5 mm.
Vokt: l60 g med knbel og plugs.

Ul'STYR

TM6 Ievercs I elegant plastetui. Holder for mentoring pa
gulelaliv. enkelt bordslaliv samt 4 m knbcl mod DlN-plugg
er standard utstyr. Som lilleggsutstyr teveres Stabill bordslativ
med mange nnvendelstsmuligheter.

\


Puma tn Norway

Tandberg TM6 is a low impedance dynamic microphone with
a housing in extruded aluminium.

The response is flat over a wide frequency range making TM6
suitable for song and music as well as for speech. The micro
phone picks up sound equally well from all directions but is
relatively insensitive to touching ol the microphone housing.
which also reduces noise caused by brmthing and wind. It is
therefore possible to place the microphone very close to the
lips when singing or speaking.

TMocan be used with all Tandberg transistorized tape recorders
or other recorders. amplifiers etc with input for low impe-
dance dynamic microphonm.

DISIANCE BEDVEEN SOUND SOURCE

AND MICROPHONE

The characteristics ol TM6 allow It to be used ill almost any

distance from the sound source

Too long a distance may give insufficient Signal to the amplifier

while background noise may become predominant, and the

reverberation of the room ntay give unwanted effects. Keep

the distance short in noisy environments and when using the

microphone in a public address system where howling is likely

to occur owing to achoustic coupling between microphone and

speaker.

TECHNICAL SPFfilFlCATlONS

Frequency range: 5045.000 Hz ( fgdB).

Type: Electrodynamic.

Sensldvlty pattern: Spherical

Sensltlvlty: 0.l mV/ttbar at l.000 Hz

Impedance: 250 ohms.

Connection: Cable.lenght 13ft. DIN socket
Pin 2 ground Pin I and 3 balanced

Dimenslons: Length; 7%.. Maximum diameter:

Weight: 5.7 oz including cable and plug,


t.-

TM6 is packed in a plastic case together with a simple table
stand and a clip l'nrattachment to a floor stand.
A sturdy adjustable table sum] is additional equipment.

TANDBERG
