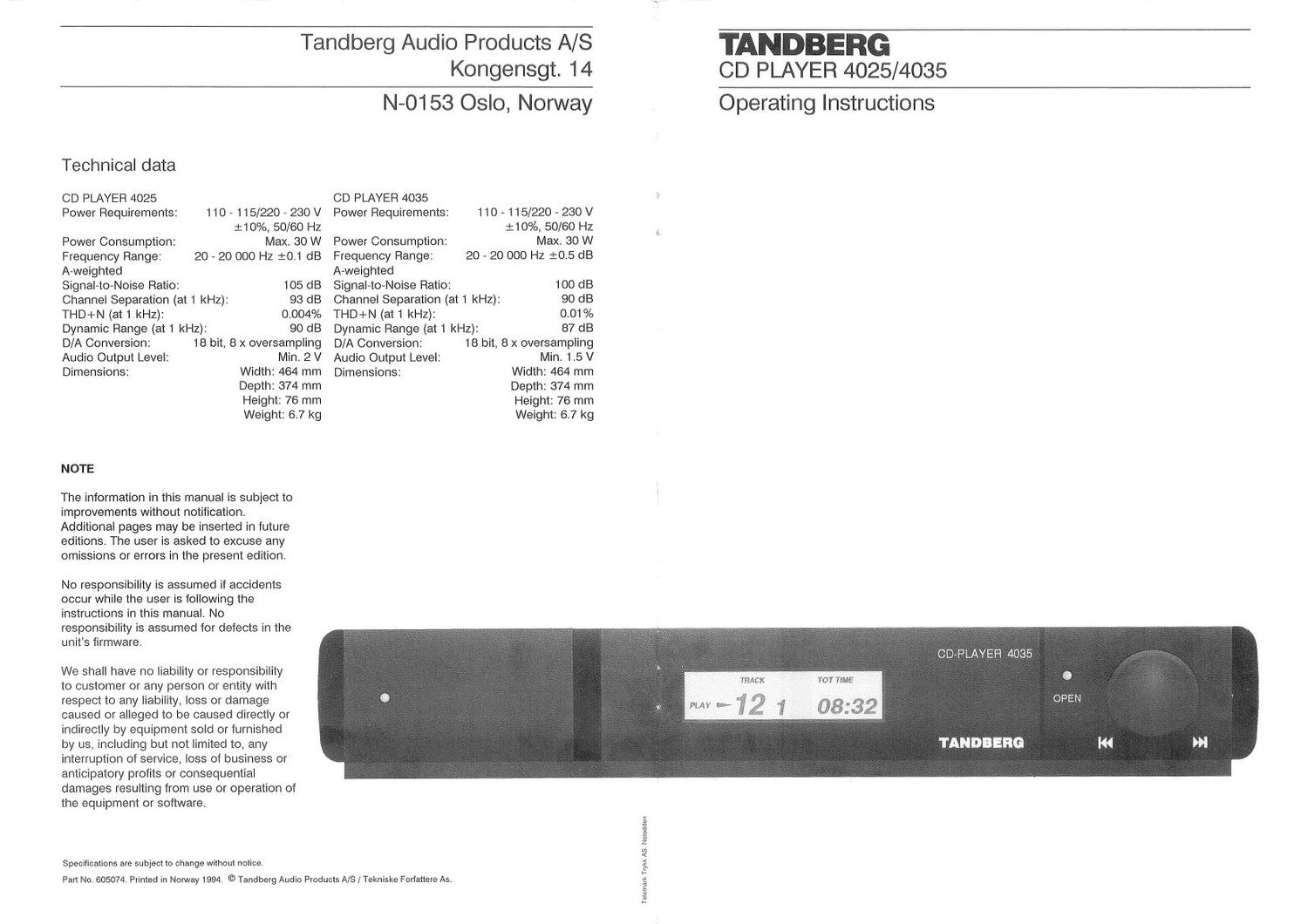

Tandberg TCP 4025 Owners Manual

Page 1

Tandberg Audio Products A/S

Kongensgt. 14

Technical data

CD PLAYER 4025
Power Requirements: 110 , 115/220 - 230 V
:10%, 50/60 Hz
Max. 30 W

20 - 20 000 Hz :01 dB

Power Consumption:
Frequency Range:

A-weighted
Signal-to-Noise Ratio: 105 dB
Channel Separation (at 1 kHz): 93 dB
THD+N (at 1 kHz): 0.004%
Dynamic Range (at 1 kHz): 90 dB
D/A Conversion: 18 bit, 8 x oversampling
Audio Output Level: Min. 2 V
Dimensions: Width: 464 mm
Depth: 374 mm
Height: 76 mm
Weight: 6.7 kg
NOTE

The information in this manual is subject to
improvements without notification.
Additional pages may be inserted in future
editions. The user is asked to excuse any
omissions or errors in the present edition.

No responsibility is assumed if accidents
occur while the user is following the
instructions in this manual. No
responsibility is assumed for defects in the
units firmware.

We shall have no liability or responsibility
to customer or any person or entity with
respect to any liability, loss or damage
caused or alleged to be caused directly or
indirectly by equipment sold or furnished
by us, including but not limited to, any
interruption of service, loss of business or
anticipatory profits or consequential
damages resulting from use or operation of
the equipment or software.

Specifications are subject to change without notice.

N-0153 Oslo, Norway

CD PLAYER 4035
Power Requirements: 110 - 115/220 - 230 V
110%, 50/60 Hz
Max. 30 W

20 - 20 000 Hz :0.5 dB

Power Consumption:
Frequency Range:

A-weighted
Signal-to-Noise Ratio: 100 dB
Channel Separation (att kHz): 90 dB
THD+N (at1 kHz): 0.01%
Dynamic Range (at 1 kHz): 87 dB
D/A Conversion: 18 bit, 8 x oversampling
Audio Output Level: Min. 1.5 V
Dimensions: Width: 464 mm
Depth: 374 mm
Height: 76 mm
Weight: 6.7 kg

Part No. 805074. Printed in Norway 1994. © Tandberg Audio Products A/S/Tekniske Forfattere As.

Telematk Tryklt AS Nolodden

TANDBERG
CD PLAYER 4025/4035

Operating Instructions

(ED-PLAYER 4035

TRACK TOT TIME

ease

TANDBIRG

Page 2

READ THIS FIRST!
For your safety!

To prevent electrical shock or fire, do not
expose electronic products to rain or moisture,
and do not remove covers (or back). If anything
fails, leave the repair to a qualified technician.

Pull out the power plug during thunder storms
and when you are away for a long time (e.g.
holidays, etc.)

Warning!

Faults on the units caused by the
circumstances described in the warnings
below, do not necessarily apply for warranty
service.

Main power

In some areas the main power wall outlet
carries high frequency data and intercom
communications. To prevent this high
frequency to reach your receiver/power
amplifier, an HF filter should be connected in
the power line. Ask your local Tandberg dealer
it this high frequency exists in your area. Should
this high frequency reach the receiver/power
amplifier, and interfere with the electronics,
damage may occur in the output stage or the
speakers.

Connecting

When connecting the units in a Hi-Fi system
together, it is very easy to touch the hot wire on
the phono lead and generate a hum signal. This
signal can be amplified and cause damage to
the receiver/power amplifier or the speakers. To
avoid this problem, switch off all units in the
system before connecting.

Remote control (extra)
This CD player can be operated from remote

control RC 4070. See page 6 for more
information.

ACHTUNG - UNSICHTBARE
LASERSTRAHLUNG WENN DIESER TEIL
GEOFFNET WIRD UND DIE SPERFIE
ABGEKOPFELT IST

SEHEN SIE NIGHT IN DIE STRAHLUNG

HINEIN, UND BEOBACHTEN SIE BITTE
NICHT DIE STHAHLEN MIT OPTISCHEN
INSTRUMENTEN

AVERTISSEMENT . SILY A OUVEFITURE
OU SI L'INTERUPTEUR EST HORS
FONCTION IL Y A RADIATION DE LAZER.
NE PAS REGARDE DANS LE RAYON 0U
REGARDE AVEC DES INSTRUMENTS
OPTIQVES.

ADVEHTCNCIA » LA RADICION DE LOS
FIAYOS LASER AL ABRIR. CUANDO LAS
PICZAS DE SEGURIDAD ESTEN FUERA DE
FUNCION.

NO, NO MIRE DENTFIO DE LA RADIACION
TAMPOCO CON INSTRUMENTOS
OPTICOS.

ADVAHSEL - LASERSTFIALING VED W
ABNING. NAFI SIKKERHEDSAFBRYDFIE
EH UDE AF FUNKTI N.

SE IKKE IND | STR LEN - HELLER IKKE
MED OPTISKE INSTRUMENTER. k

VARNING , osmue LASERSTRALING
NAB DENNA DEL AR OPPNAD OCH
SPARRAR AR URKOPPLADE.

STIFIRA E] IN I STRALEN OCH
BETRAKTA EJ STRALEN MED OPTISKA
INSTRUMENT. I

VAFIO , AVATIAESSA JA SUOJALUKITUS
OHTETI'AESSA OLET ALIIIINA
LASERSATEILYLLE. , , ,

ALA" TUIJOTA SATEESEENALAKA KATSO
SITA OPTISEN LAIT'I'EEN LAPI.

Programming

You can program up to 12
tracks in any order you wish in

MUTE/DISP

Stop mode. TANDBERG Turns On and Off the display in
Play mode. In Pause mode

NOTE: You have to press the (when Off) the display will light

PROG/REP button within in approx. 3 seconds In Stop

approx. 10 seconds after you tUNER cu CASS mode, the display will always

have selected atrack. Cw? (ADP Hg? light.

- Select the track with the Q Q 0 Repeat A-B
number buttons or the track :1] i] 3
select buttons »| }« 4 Repeat play between two

[3 [3 points.

- Then press the FROG/REP 7 9 A: press the PROG/REP
button to store the track. The I: B button at the beginning of
display ShOWS PROGRAM, 48% i] (6% the sequence you want to
TRACK is flashing and 2 WEN DEW, mono repeat.
shows that you can select 0 C) B: Press the PROG/REP
and store the next track. 5mm Q button again at the end of

_ C - - AUTO MAN v0 your Sequence.

ontinue storing tracks and Q Q The CD player will now repeat
then press the play IA can M: the sequence from A to B.
button I: ' 9 « (E) To cancel repeat A-B, just

- To cancel the programming C) C) press the PROG/REP button

function, press the STOP
button I: two times.

REC WE once more and the CD player
returns to normal Play mode.

FROG/REP

In Play mode, press the
PROG/REP button M to
repeat the disc or a program.
To cancel the repeat function,
press the Stop lg button.

Remote Control TIME
RC 4070

In Play mode, the counter has
five separate modes, one for
each time you press the TIME
button:

, LAP TIME

- DISC

- TOT TIME DISC

- REM TIME DISC

- REM TIME

Maintenance

Disc

When you remove the disc from the cover,
always pick up the disc by edge, and put it
back into the cover immediately after use.
Cleaning will normally not be necessary.

Should fingerprints, dust or dirt appear, wipe it
off with a soft lint-free cloth (you can breathe on
the disc when cleaning). Wipe the disc in a
straight line from center to edge.

NOTE! Never use detergents, solvents or
cleaning agents for conventional records as
they may damage the disc.

Never write on the disc label, this can damage
the music tracks.

Mechanism
The CD player mechanism has self-lubricating
bearings and must not be lubricated.

The disc tray should be kept free of dust.
