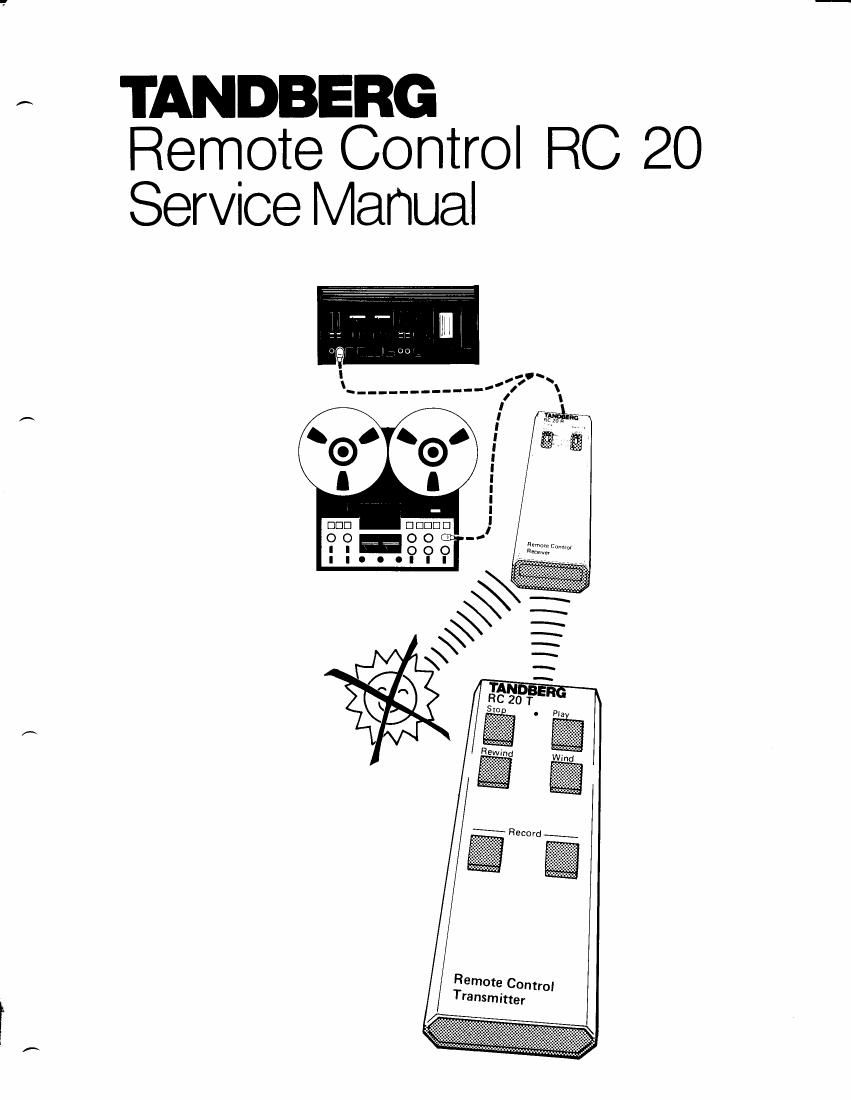

Extracted text from Tandberg RC 20 Service Manual (Ocr-read)
Page 2
ransmitter - RC 207 Receiver - RC 20R
Control
operated
Bit sequence at the output of Ul, pin 8 (transmitter) Logic levels at the
outputs of Ul (receiver)
ABCD
Logic levels at connector pin No.:
12457
Wind and Rewind
Stop
Stop and Wind
Stop and Rewind
Stop and Play
Rewind
Record (both)
Play
Wind
1O ms approx. --{
IIIIII
IIIIIIII
I
0000
1000
0100
0010
1010
0110
0001
10110
11011
01110
11110
11101
11001
10111
It
LI
Table 1 -1
=Q
Receiver unit RC 20R
Functional description
The receiver has two main functions:
- One function is to convert the IR light
from the transmitter to electrical signals
which operate the tape deck according to
a system of command signals.
- The second function is to select (with the
aid of other controls) whether the tape
deck goes over to Play or Record when a
Timer is used. A Timer switches on the
power to the tape deck automaticalll' at a
chosen time.
E lectrical description
- The IR amplifier is located on the top
circuit board (A2-1) in the receiver unit.
- The receiver diode CR1 is very sensitive to
IR light and the diode is equipped with an
optical filter which makes it insensitive to
visible light.
The circuit is designed to suppress
i00/120 Hz light from incandescent
lamps. This is important since tape decks
are often used near to strong artificial
light. An incandescent lamp radiates 30%
of its power within the sensitive spectrum
of CR1.
