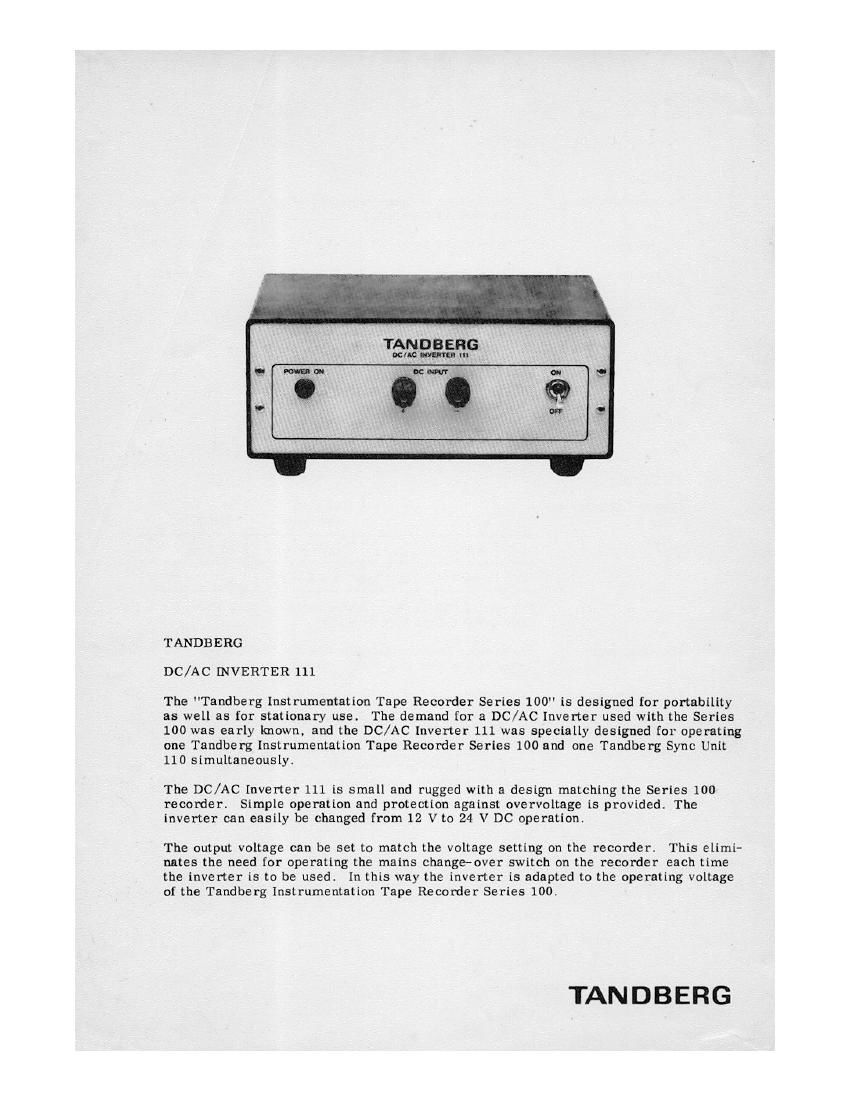

Page 1
TANDBEHG
Nlflmm
an
TANDBERG
DC/AC INVERTER 111
The "Tandberg Instrumentation Tape Recorder Series 100" is designed for portability
as well as for stationary use. The demand for a DC/AC Inverter used with the Series
100 was early known, and the DC/AC Inverter 111 was specially designed for operating
one Tandberg Instrumentation Tape Recorder Series 100 and one Tandberg Sync Unit
110 simultaneously.
The DC/AC Inverter 111 is small and rugged with a design matching the Series 100
recorder. Simple operation and protection against overvoltage is provided. The
inverter can easily be changed from 12 V to 24 V DC operation.
The output voltage can be set to match the voltage setting on the recorder. This elimi-
nates the need for operating the mains change-over switch on the recorder each time
the inverter is to be used. In this way the inverter is adapted to the operating voltage
of the Tandberg Instrumentation Tape Recorder Series 100.
TANDBERG
Page 2
TECHNICAL SPECIFICATIONS
General:
Temperature range:
Humidity:
Vibration:
Shock:
Altitude:
Operating positions:
Weight:
Dimensions:
Electrical:
[nput voltage/current:
0 to +55 degrees Centigrade, operating. -40 to +75 degrees
Centigrade, nonoperating.
10 % to 95 % (-25 to +40 degrees Centigrade). noncondensing.
0.1" displacement 5-18 Hz. 1.3 g. 18-200 Hz. nonoperaling.
50 g max. (10 ms. half sine). nonoperatlng.
15000 ft. . operating, 25000 (L. nonoperating.
Any.
Approx. 2.9 lbs (1,3 kg)
Width 8 1/4" (210 mm) Height 3 1/2" (90 mm)
Depth 6" (150 mm)
12 V DC 24 V DC
Operation Operation
DC-voltage 11.5 V - 14 V 23 V - 28 V
DC-current(approx)* 3.0A-3.5A 1.8A- 2.0A
Output voltage:
Output frequency:
Output power:
Safety:
*Operating one Tandberg Instrumentation Tape Recorder Series
100 and one Tape Sync Unit 110.
Witchable output voltage for adaption to the recorder's require~
ment at 115 V or 230 V AC. (Switch on the rear panel.)
Approximately 300 Hz. squarewave.
Adequate for operation of one Tandberg Instrumentation Tape
Recorder Series 100 together with one Tandberg Sync Unit 110.
A built-in crow-bar blows the fuse at approximately 15 V input
in 12 V operation. and at approximately 30 V in 24 V operation.
Tandbergs Radioiabrikk A/S.
PO. Box 9. Korsvoli.
Oslo 8, Norway.
