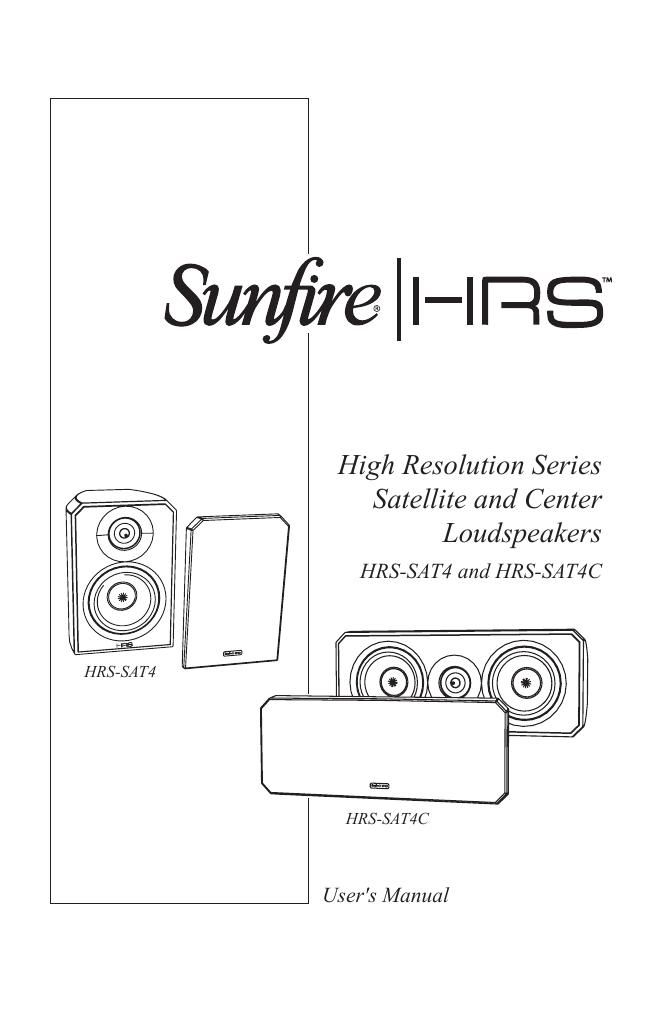

Sunfire hrs sat 4 owners manual

Page 1

User's Manual  Important Safety Instructions WARNING: THIS LOUDSPEAKER IS CAPABLE OF PRO - DUCING VERY HIGH SOUND PRESSURE LEVELS. YOU MUST TAKE EVERY PRECAUTION TO PROTECT YOUR HEARING FROM PERMANENT DAMAGE. 1. Read Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all Instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 8. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as a connector is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 9. Object and Liquid Entry - Care should be taken so that objects do not fall into and liquids are not spilled into the inside of the apparatus. Safety For more information on this and other Sunfire products, please visit our website: www.sunfire.com Contents Safety Instructions .............  Introduction ....................... 3 Features ............................ 5 Location ............................ 6 Using a subwoofer ............ 8 Installation ......................... 9 Optional Stand ................ 11 Specifications .................. 13 Troubleshooting .............. 14 Limited Warranty ............. 15 Service Assistance .......... 15

Page 2

User's Manual 3 Introduction Features Location Installation Features - Perfectly matched to the HRS subwoofers to form a complete system - HRS-SAT4 can be wall-mounted, or stand on a cabinet or shelf. It can be used for left, right, surround, and sur - round-back applications - HRS-SAT4C can be wall-mounted, or stand on a TV cabinet or shelf. It can be used horizontally as a center chan - nel, or wall-mounted vertically as a left, right, or surround loudspeaker - Two-way, high pressure design with fully-sealed enclosure, offers tight bass and high output - Magnetically shielded - 4.5" High Back-emf drivers (one for the HRS-SAT4, two for the HRS-SAT4C) - 1" ring radiating tweeter - 111 dB maximum output - 00 watts maximum power - Magnetic grilles - Gold-plated 5-way terminals - "Kickstand" tilt control (HRS-SAT4C only) - High gloss multi-layer cabinet finish - Optional stand for the HRS-SAT4 Care If your loudspeaker needs servicing, please read the Troubleshooting section on page 14. If a problem persists, please contact your nearest authorized Sunfire Dealer. Please take a moment to fill out and mail the Sunfire Customer Response card. Also read the serial number located on the rear label and record it here: Thank you for purchasing a Sunfire High Resolution Series loudspeaker. We hope you enjoy it and the music it makes as much as we have enjoyed creating it for you. This loudspeaker follows a great heritage of both world-class loudspeaker designs and industry-leading subwoofer technologies. The HRS-SAT4 satellite loudspeaker and HRS-SAT4C center loudspeaker are designed as a perfect match to our High Resolution Series subwoofers, resulting in an amazing home theater experience... the kind of heart-felt experience that could only come from Sunfire. Unpacking Your Sunfire High Resolution Series loudspeaker should reach you in perfect condition. If you do notice any shipping damage, please contact Sunfire imme - diately. Gently lift out the loudspeaker and all the packing material. It is important to save all the packing materials and the box in case your loudspeaker ever needs to be moved or shipped for repair. Make sure that you keep your sales receipt. It is the only way to establish the duration of your Limited Warranty and it may come in useful for insurance purposes. Introduction Misc. Serial Number: Purchased from: Date:
