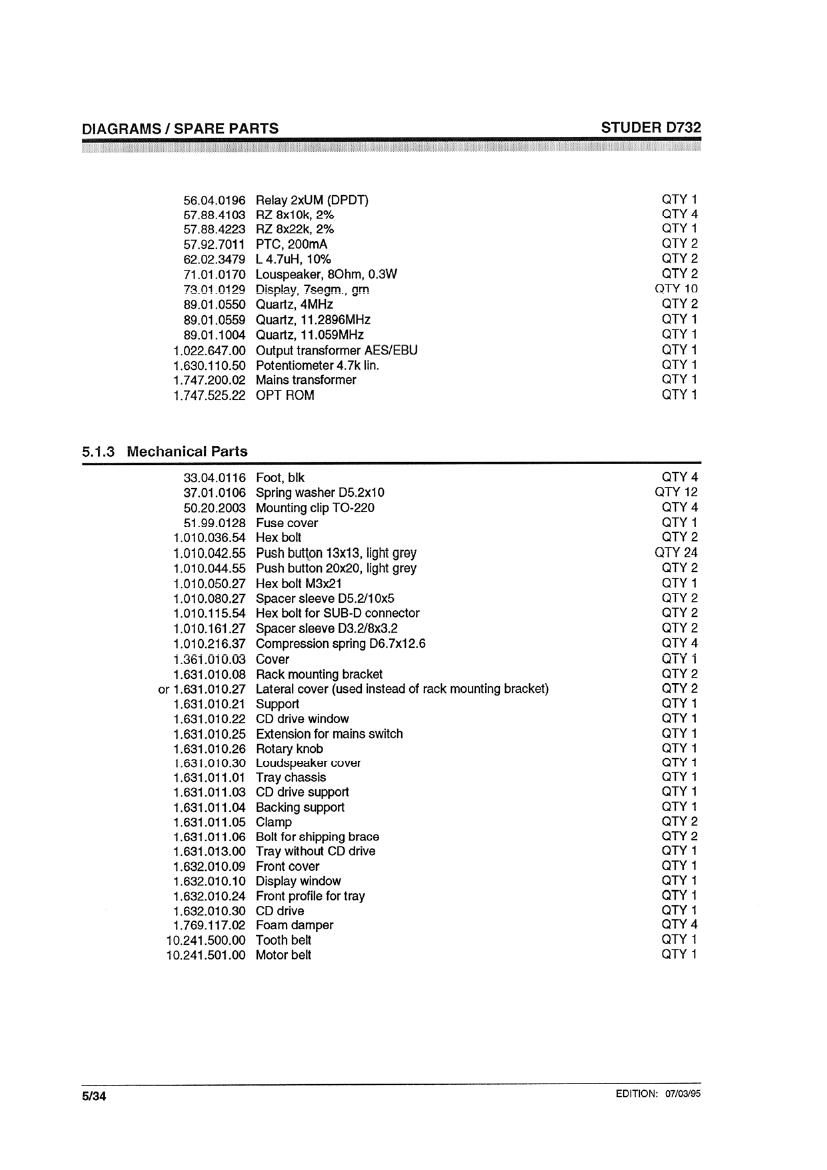

DIAGRAMS / SPARE PARTS STUDER D732
56.04.0196 Relay 2xUM (DPDT) QTY 1
57.88.4103 FtZ 8x10k, 2% QTY 4
57.88.4223 RZ 8x22k, 2% QTY 1
57.92.7011 PTC, 200mA QTY 2
62.02.3479 L 4.7uH, 10% QTY 2
71.01.0170 Louspeaker, 80hm, 0.3W QTY 2
.- Display, 159ng gm QTY 10
89. . 550 Quartz, 4MHz QTY 2
89.01.0559 Quartz, 11.2896MH2 QTY 1
89.01.1004 Quartz, 11.059MHz QTY 1

1.022.647.00 Output transformer AES/EBU QTY 1
163011050 Potentiometer 4.7k Iin. QTY 1
1.747.200.02 Mains transformer QTY 1
1.747.525.22 OPT ROM QTY 1

5.1.3 Mechanical Parts
33.04.0116 Foot, blk QTY 4
37.01.0106 Spring washer Ds.2x10 QTY 12
50.20.2003 Mounting clip TO-220 QTY 4
51.99.0128 Fuse cover QTY 1

1.010.036.54 Hex bolt QTY 2
1.010.042.55 Push button 13x13, light grey QTY 24
1.010.044.55 Push button 20x20, light grey QTY 2
1.010.050.27 Hex bolt M3x21 QTY 1
1.010.080.27 Spacer sleeve DS.2/10x5 QTY 2
1.010.115.54 Hex boil for SUB-D connector QTY 2
101016127 Spacer sleeve 03.2/8x3.2 QTY 2
1.010.216.37 Compression spring DS.7x12.6 QTY 4
1.361.010.03 Cover QTY 1
1.631.010.08 Flack mounting bracket QTY 2
or 1.631.010.27 Lateral cover (used instead of rack mounting bracket) QTY 2
1.631.010.21 Suppon QTY 1
1.631 01022 CD drive window QTY 1
163101025 Extension for mains switch QTY 1
1.631.010.26 Rotary knob QTY 1
1.631.010.30 Loudspeaker cover QTY 1
1.631.011.01 Tray chassis QTY 1
1.631.011.03 CD drive support QTY 1
1.631.011.04 Backing support QTY 1
1.631.011.05 Clamp QTY 2
1.631.011.06 Bolt for shipping brace QTY 2
1.631.013.00 Tray without CD drive QTY 1
1.632.010.09 Front cover QTY 1
1.632.010.10 Display window QTY 1
163201024 Front profile for tray QTY 1
1.632.010.30 CD drive QTY 1
1.769.117.02 Foam damper QTY 4
10.241.500.00 Tooth belt QTY 1
10.241.501.00 Motor belt QTY 1

5134

EDITION: 07/00/95
