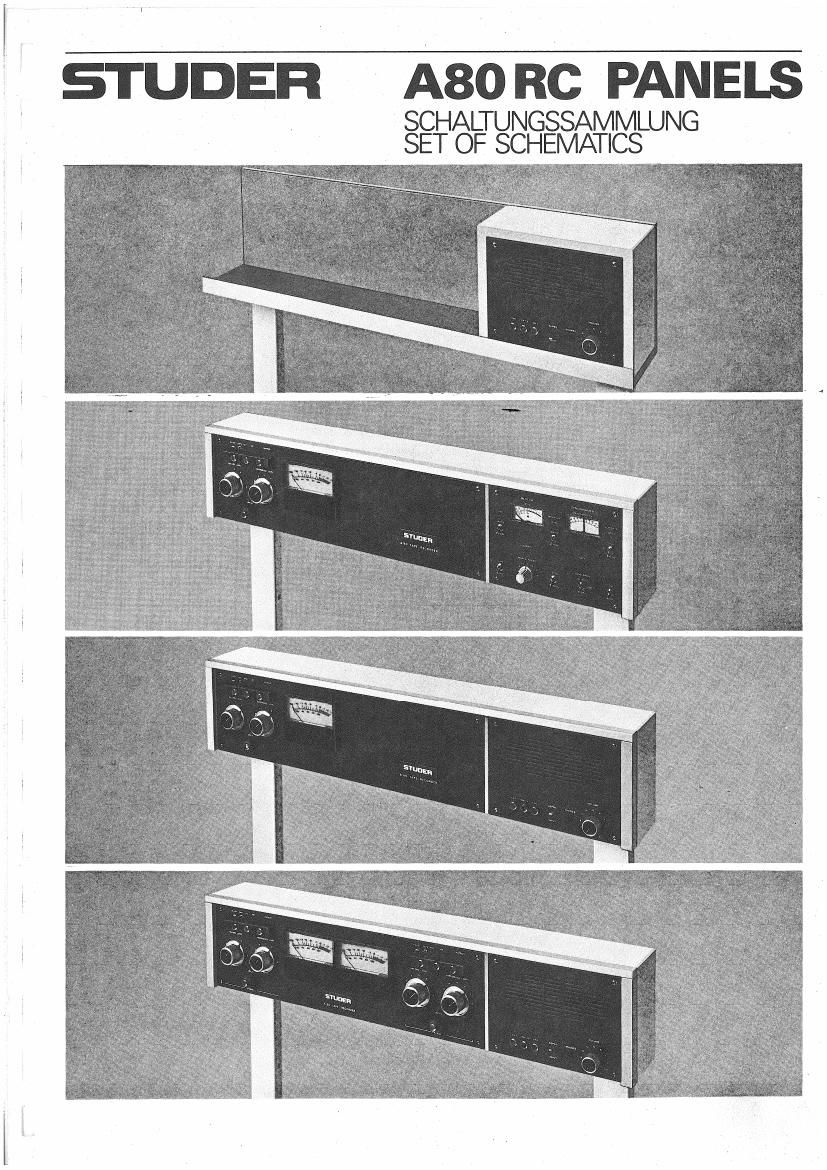

Page 1
STUDER A80 RC PANELS
SCHALTUNGSSAMMLUNG
SET OF SCHEMATICS
Page 2
CONTENTS
LAYOUT OF OPTION CONNECTORS
LIST OF WIRE HARNESS FOR A80 RC PANELS
MONITOR PANEL
MONITOR PANEL AND AMPLIFIER
MONITOR PANEL BOARD
COVER WITH MONITOR
MONITOR AMPLIFIER
vu PANEL MONO
VU PANEL 2 CH
VUMETER CONNECTOR BOARD
PILOT FOLLOW-UP PANEL
"PILOT SYNCHRONIZER MK II
CONNECTORS TO vu PANEL A80 RC
WIRE HARNESS TO vu PANEL 2 CH WITH MONITOR
WIRE HARNESS TO VU PANEL MONO WITH MONITOR
WIRE HARNESS TO vu AND MONITOR CONNECTOR
WIRE HARNESS To PILOT FOLLOW-UP CONNECTOR
WIRE HARNESS TO MONITOR PANEL
WIRE HARNESS TO PILOT FOLLOW-UP PANEL
SUPPLEMENT CABLE TO PI LOT FOLLOWUP CONNECTOR
WIRE HARNESS TO vu PANEL MONO
1.081.900
1.081.900/908
1.081.900-81
1.081.920
1.081.908
1.081.901
1.081.902
1.081.914
1.081.903
1.081.942
1.081.910
1.081.911
1.081.912
1.081.913-81
1.081.916
1.081.928
1.081.929
1.081.930
Order Number: 233.333.1079
This set of schematics up-dates the Manual nr. 23,271.479
and additional description nr. 23.276.1179
Subject to change
Printed in Switzerland by WI LLI STUDER
Copyright by Wilii Studer, CH-8105 Regensdorf-ZUrich
