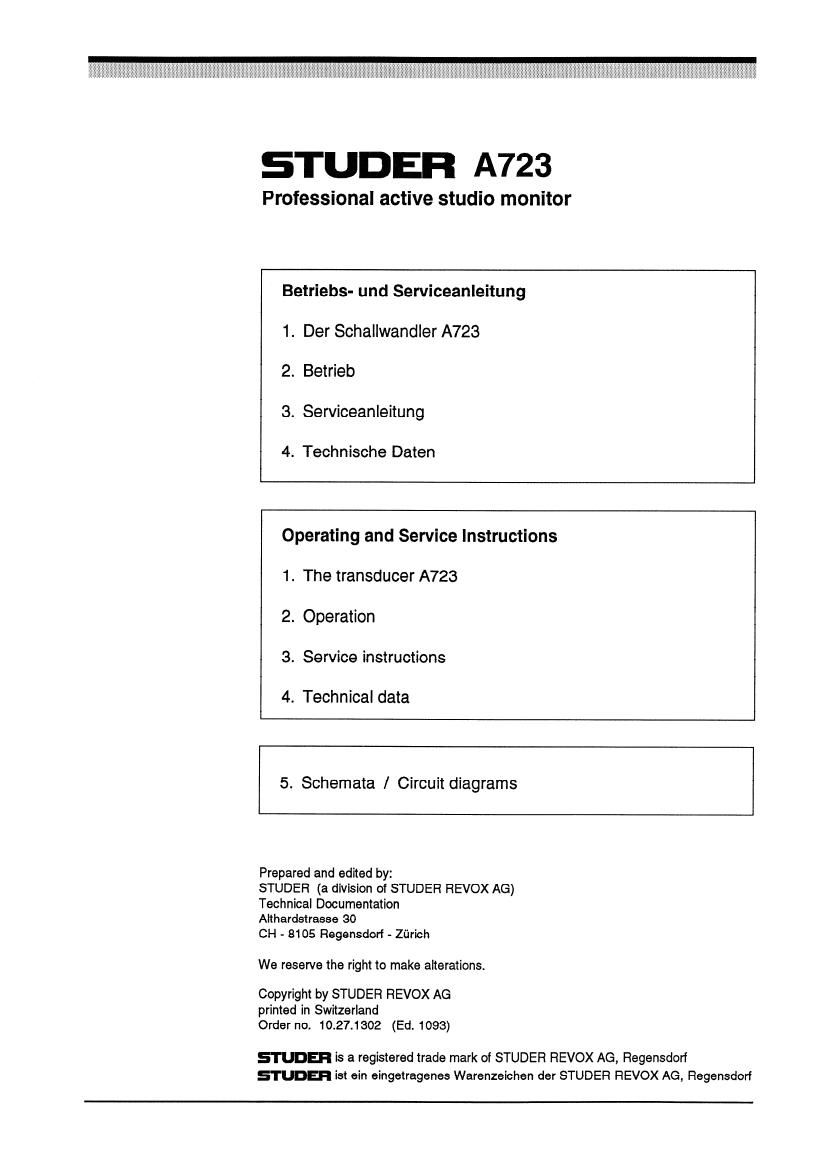

Page 1

STUDER A723

Professional active studio monitor

Betriebs- und Serviceanleitung
1. Der Schallwandler A723

2. Betrieb

3. Serviceanleitung

4. Technische Daten

Operating and Service Instructions
1. The transducer A723

2. Operation

3. Service instructions

4. Technical data

5. Schemata / Circuit diagrams

Prepared and edited by:

STUDEH (a division of STUDEH REVOX AG)
Technical Documentation

Althardstrasse 30

CH - 8105 Regensdorf - Ziirich

We reserve the right to make alterations.
Copyright by STUDER REVOX AG

printed in Switzerland
Order no. 10.27.1302 (Ed. 1093)

STUDE! is a registered trade mark of STUDER REVOX AG, Regensdori
STUDEFI ist ein eingetragenes Warenzeichen der STUDER REVOX AG, Regensdorf

Page 2

SAFETY I SECURITE / SICHERHEIT

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

A T T E N T I O N
RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

ACHTUNG

GEFAHR: ELEKTFSISCHER SCHLAG
NICHT OFFNEN

To reduce the risk of electric shock, do not remove cover (or
back). No user-serviceable parts inside. Refer servicing to
qualified service personnel.

Afin de prévenir un choc électrique, ne pas enlever Ie couvercle
(cu larriere de lappareil). |l ne se trouve a linte'rieur aucune
piece pouvant étre réparée par Iusager.

Um die Getahr des elektrischen Schlages zu vermeiden,
entfernen Sie keine Abdeckung (oder Rackwand).
Uberlassen Sie die Wartung und Reparatur dem qualifizierten
Fachpersonal.

This symbol is intended to alert the user to presence of
uninsulated "dangerous voltage" within the apparatus that
may be of sufficient magnitude to constitute a risk of electric
shock to person.

Ce symbole indique a l'utilisateur qu' existent a lintérieur de
l'appareil des "tensions dangerouses". Ces tensions élevées
entrainent un risque de choc électrique en cas de contact.

Dieses Symbol deutet dem Anwenderan, dass im Gerateinnern
die Gefahr der Beruhrung von "geffihrlicher Spannung"
besteht. Die Spannungsgrésse kann zu einem elektrischen
Schlag fflhren.

This symbol is intended to alert the user to the presence of
important instructionsforoperating and maintence (servicing)
in the enclosed documentation.

Ce symbole indique a lutilisateur que la documentation jointe
contient d' importantes instructions concernant Ie fonctionne-
ment et la maintenance.

Dieses Symbol deutet dem Anwender an, dass die beigelegte
Dokumentation wichtige Hinweise fUr Betrieb und Wartung
beinhaltet.

ACHTUNG:

A'I'I'ENTION:

ATTENTION:

Observe precaution for handling electrostatic discharge sensitive
devices! Refer to section ESD.

Respecter les precautions dusage concernant la manipulation
de composants sensibles a lélectricité statique. Voir chapitre
ESD correspondant.

Vorsichtsmassnahmen bei Handhabung elektrostatisch
entladungsgefahrdeter Bauelemente beachten! Siehe Abschnitt
ESD.
