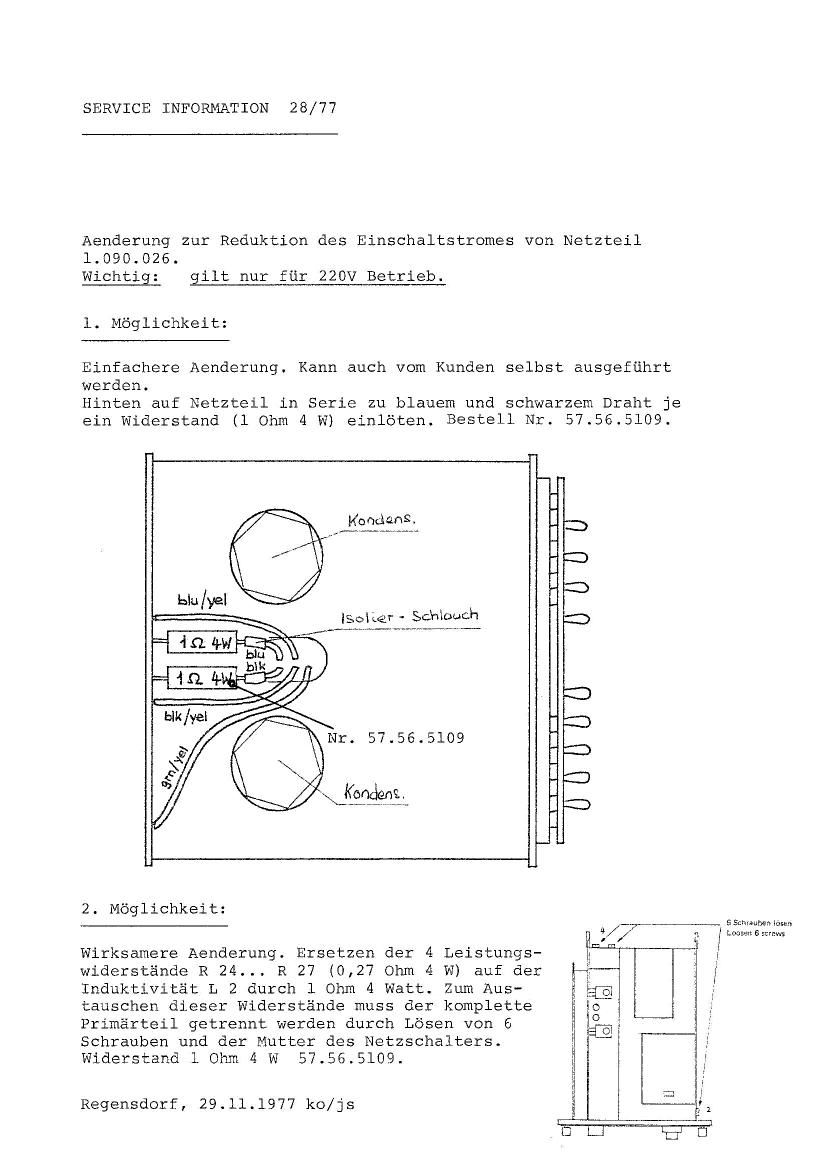

SERVICE INFORMATION 28/77
Aenderung zur Reduktion des Einschaltstromes von Netzteil
1.090.026.
Wichtig: gilt nur fur 220V Betrieb.
l. Mdglichkeit:
Einfachere Aenderung. Kann auch vom Kunden selbst ausgeffihrt
werden.
Hinten auf Netzteil in Serie zu blauem und schwarzem Draht je
ein Widerstand (1 Ohm 4 W) einlbten. Bestell Nr. 57.56.5109.
.5 ..
/ \ «19939:; I:
- :2
bMIVQ -// C ::>
{goqur - §§¥V5ouch a
:23
' :23
Nr. 57.56.5109
ZZD
- :23
\¥K@@EL '- Q
2. Méglichkeit:
- 7.-_ 5 Schraubefl Ease.
i//T F 5 Lease" 6 screws w
m ' f
Wirksamere Aenderung. Ersetzen der 4 Leistungs- 5
widerstande R 24... R 27 (0,27 Ohm 4 W) auf der 5-? ; 5
Induktivitéit L 2 durch 1 Ohm 4 Watt. Zum Aus- ; {03 5
tauschen dieser Widersténde muss der komplette
Primérteil getrennt werden durch Lésen von 6
Schrauben und der Mutter des Netzschalters.
Widerstand 1 Ohm 4 w 57.56.5109. 5 5
5 ,
l
Regensdorf, 29.11.1977 ko/js 5 j;
SERVICE INFORMATION 28/77
Modification for starting current reduct
1.090.026.
Important: only for 220V mains voltage
ion of Power Supply
l. Possibility:
More simple change. Can be done from the
well.
Solder behind of power supply (picture)
customer itself as
two resistors (1 Ohm
4 W) in serie to blue and black wire. Order No. 57.56.5l09.
57.56.5109
LLIYI
Ubuu
Undbu
2. Possibility:
More efficient change. Exchange the four
power resistors R 24... R 27 above the
choke L 2 from 0,27 Ohm 4 Watt to 1 Ohm
4 Watt. Therefore the complete main sec-
tion has to be removed by loosen of 6
screws and the nut of the power switch.
Resistor 1 Ohm 4 W 57.56.5109.
Regensdorf, 29.11.1977 ko/js
